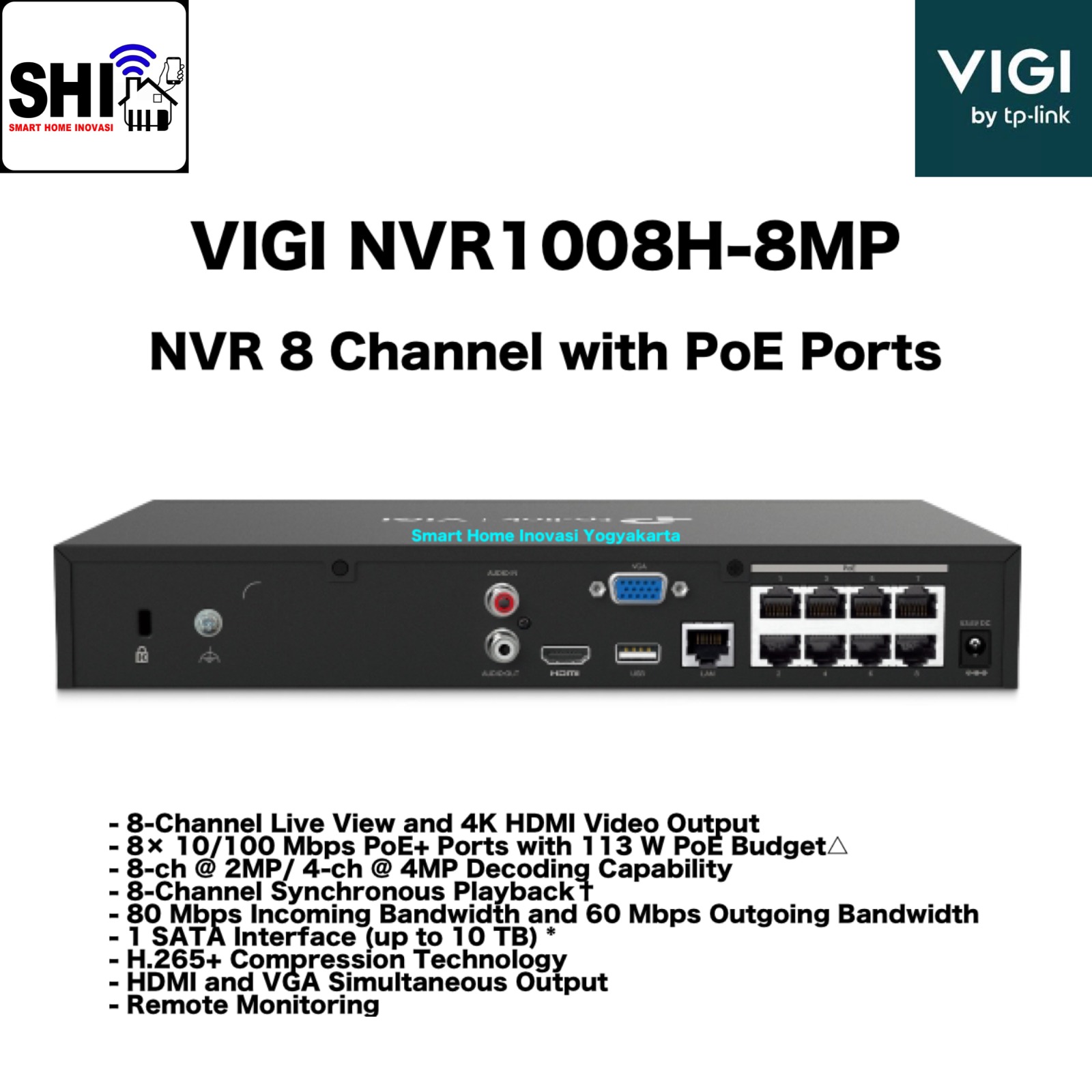

tp-link VIGI NVR1008H-8MP, NVR 8 Channel with PoE Ports
NVR 8 Channel dengan Port PoE
Rp1.00
tp-link VIGI NVR1008H-8MP, NVR 8 Channel with PoE Ports
Video and Audio :
IP Video Input : 8-Channel
Incoming Bandwidth : 80 Mbps
Outgoing Bandwidth : 60 Mbps
HDMI Output Resolution : 1 Channel, Resolution:
3840x2160/30Hz
1920x1080/60Hz
1680x1050/60Hz
1440x900/60Hz
1280x1024/60Hz
1280x720/60Hz
VGA Output Resolution : 1 Channel, Resolution :
1920x1080/60Hz
1680x1050/60Hz
1440x900/60Hz
1280x1024/60Hz
1280x720/60Hz
Video Output Mode : HDMI/VGA Simultaneous Output
Multi-View Display : 1/4/6/8
DECODING :
Audio Compression : G.711A/G.711U/G.726
Video Compression : H.265+/H.265/ H.264+/H.264
Record Resolution :
8MP/5MP/4MP/3MP
1080p/UXGA/720p/VGA
4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback : 8-Channel
Capability : 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP
Record Management :
Record Mode :
Manual Recording
Scheduling Recording
Motion
Detection Recording
Playback Mode :
Instant Playback
Regular Playback
Tag Playback
Event Playback
Backup Mode : Regular Backup, Video Clip Backup
Playback Function :
Play
Pause
Stop
Fast Forward
Fast Backward
Play By Frame
Full Screen
Video Clip
Export Clip
Digital Zoom
Lock Recording
Audio On/Off
NETWORK :
Protocol : UPnP (Plug and Play), NTP (Network Timing)
Mobile Phone Access : Android, iOS
Web Browser : Chrome (57+), Firefox (52+), Edge (91+)
Interoperability : ONVIF, CGI
External Interface :
Network Interface : 1
RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface : 2× USB 2.0
Audio Interface : 1 Audio In; 1 Audio Out
Alarm In/Out : N/A
Serial Interface : N/A
Power : 1× DC Jack
Reset Button : 1
Speaker : N/A
eSATA : N/A
HDMI : 1
VGA : 1
HARD DISK :
SATA : 1 SATA Interface
Capacity : Up to 10 TB Capacity for Each HDD
PoE :
Standard : 802.3at/af Compliant
Interface : 1- 8
RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
PoE Budget : 113 W
Available for All PoE+ Ports, 30 W Max per Port
Alarm :
General Alarm :
Motion Detection
Video Tampering
Line-Crossing Detection
Intrusion Detection
Region Entering Detection
Region Exiting Detection
Object Abandoned/Removal Detection
Vehicle Detection
Human Detection
Smart Frame
Anomaly Alarm :
Video Loss
Offline and IP Conflict
Disk Exception
Login Exception
Fan Exception
Alarm Linkage :
Recording
White Light Alarm
Buzzer
Log
Audible Alarm
GENERAL :
Storage Temperature : -40–70 °C
Storage Humidity : 10%~90% RH Non-Condensing
Working Temperature :
NVR : -10–55 °C
Power Adapter : 0–40 °C
Working Humidity : 10%~90% RH Non-Condensing
Dimensions ( W X D X H ) : 294 × 180 × 44 mm
Net Weight : 1.12 Kg
Gross Weight : 2.2 Kg
Power Supply : 53.5V DC/2.43A
Max. Power Consumption :
2.38 W (without disk)
12.94 W (with disk)
In the Box :
VIGI Network Video Recorder
Power Adapter
HDD Screws
Mouse
Quick Installation Guide
Certifications : CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
