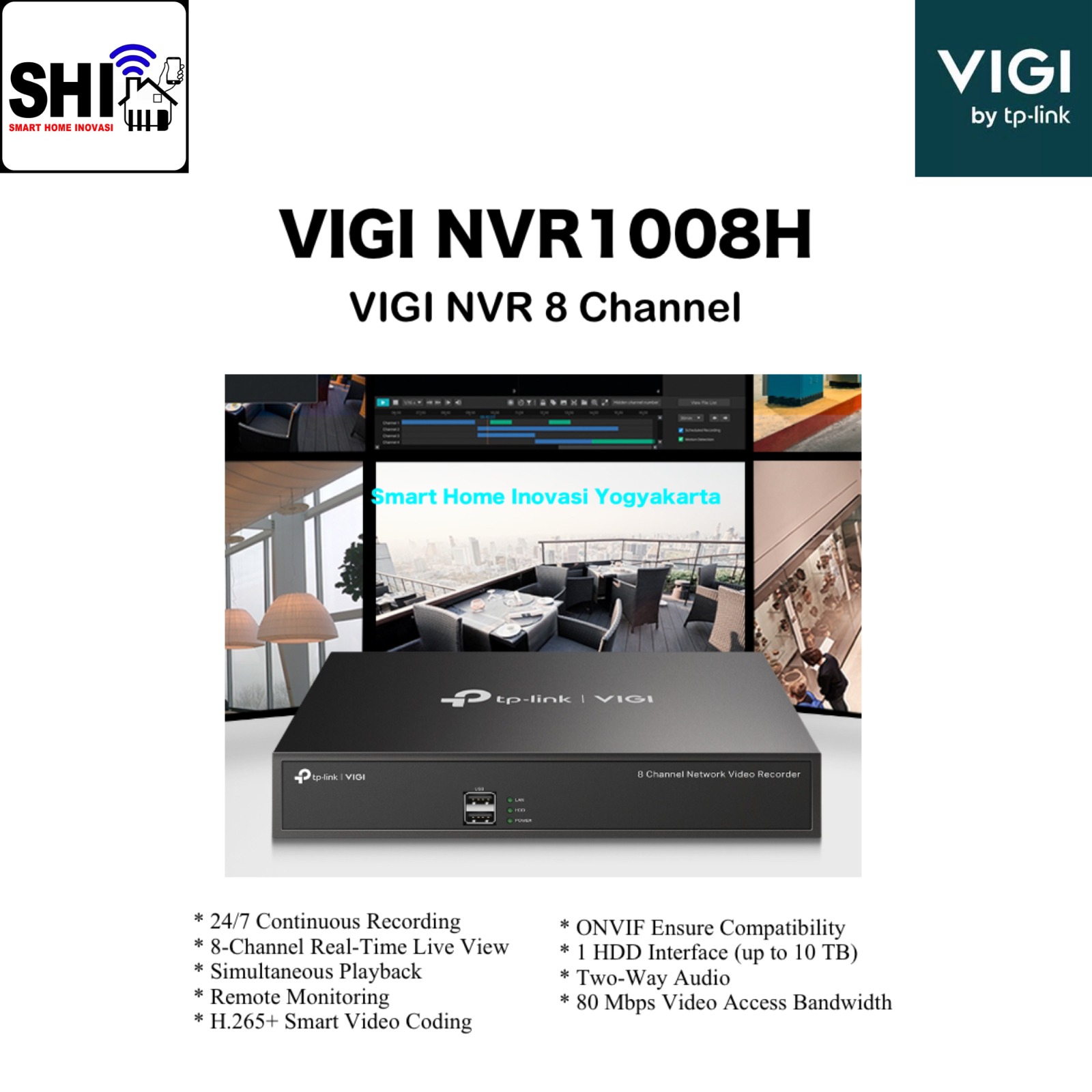

tp-link VIGI NVR 8 CHANNEL NVR1008H

tp-link VIGI NVR 8 CHANNEL NVR1008H

Video and Audio :

• IP Video Input   : 8-Channel

• Incoming Bandwidth : 80 Mbps

• Outgoing Bandwidth : 60 Mbps

• HDMI Output Resolution : 1 Channel, Resolution :

  • 3840 ×2160/30Hz

  • 1920 × 1080/60Hz

  • 1680× 1050/60Hz

  • 1440 × 900/60Hz

  • 1280 × 1024/60Hz

  • 1280 × 720/60Hz

• VGA Output Resolution : 1 Channel, Resolution :

  • 1920 × 1080/60Hz

  • 1680× 1050/60Hz

  • 1440 × 900/60Hz

  • 1280 × 1024/60Hz

  • 1280 × 720/60Hz

• Video Output Mode : HDMI/VGA Simultaneous Output

• Multi-View Display : 1/4/6/8

DECODING :

• Audio Compression : G.711A/G.711U/G.726

• Decoding Format : H.265+/H.265/ H.264+/H.264

• Video Compression : H.265+/H.265/ H.264+/H.264

• Record Resolution :

  • 8 MP / 5 MP / 4 MP / 3 MP

  • 1080p / UXGA / 720p / VGA

  • 4CIF / DCIF / 2CIF / CIF / QCIF

• Live View/Playback Resolution :

  • 8 MP / 5 MP / 4 MP / 3 MP

  • 1080p / UXGA / 720p / VGA

  • 4CIF / DCIF / 2CIF / CIF / QCIF

• Synchronous Playback : 4 Channel†

• Capability : 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP

Record Management :

• Record Mode :

  • Manual Recording

  • Scheduling Recording

  • Motion Detection Recording

• Playback Mode :

  • Instant Playback

  • Regular Playback

  • Tag Playback

  • Event Playback

• Backup Mode :

  • Regular Backup

  • Video Clip Backup

• Playback Function :

  • Play

  • Pause

  • Stop

  • Fast Forward

  • Fast Backward

  • Play By Frame

  • Full Screen

  • Video Clip

  • Export Clip

  • Digital Zoom

  • Lock Recording

  • Audio On/Off

NETWORK

• Protocol : TCP/IP, DHCP, DNS, NTP, UPnP

• Mobile Phone Access : Android, iOS

• Incoming Bandwith : 80 Mbps

• Outgoing Bandwidth : 60 Mbps

• Web Browser : Chrome (57+), Firefox (52+), Edge (91+)

• Interoperability : ONVIF, CGI

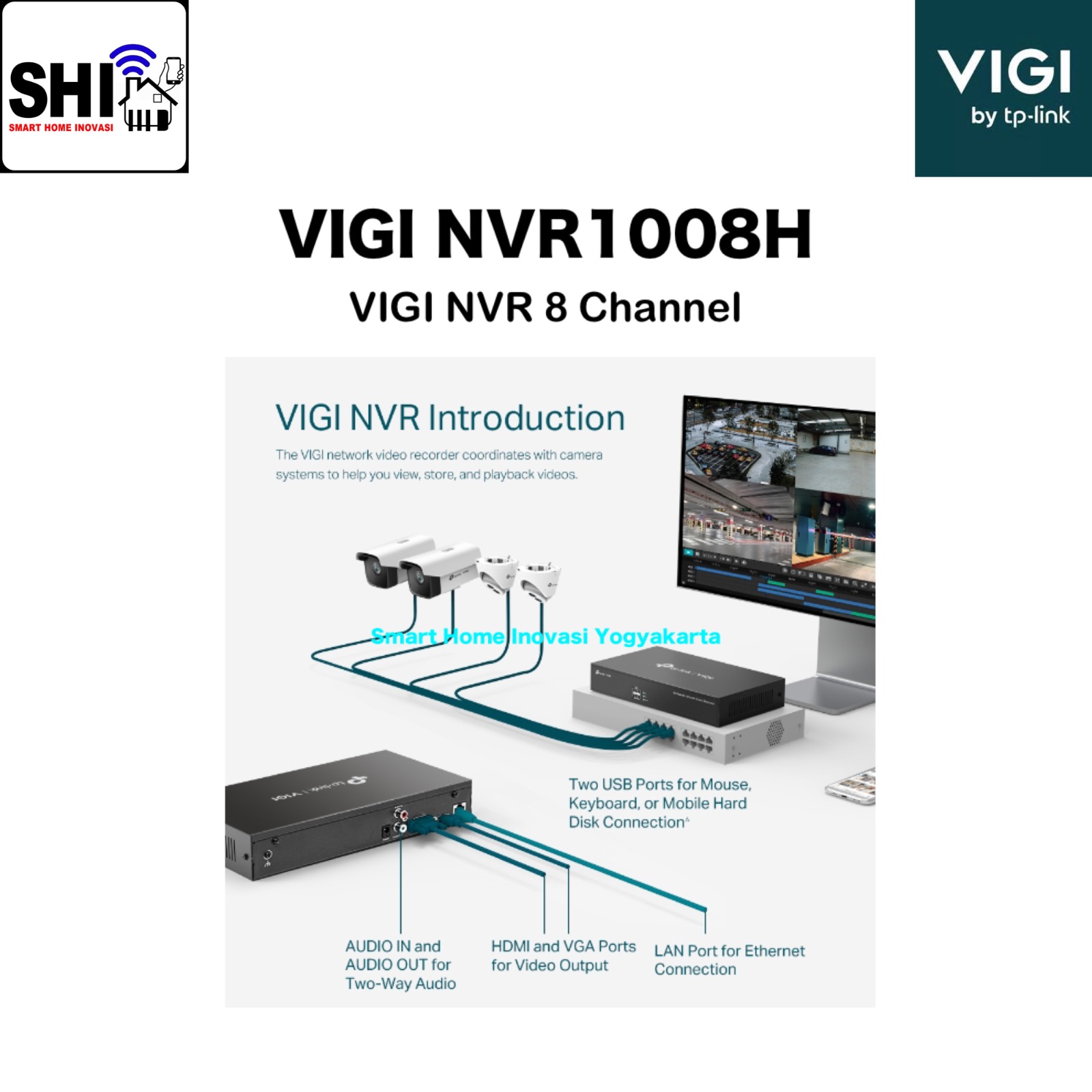

External Interface :

• Network Interface : 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

• USB Interface : 2× USB 2.0

• Audio Interface : 1, Audio In; 1, Audio Out

• Alarm In/Out : N/A

• Serial Interface : N/A

• Power : 1× DC Jack

• Reset Button : 1

• Speaker : N/A

• eSATA : N/A

• HDMI : 1

• VGA : 1

HARD DISK :

• SATA : 1 SATA Interface

• Capacity : Up to 10 TB

Alarm :

• General Alarm   :

  • Motion Detection

  • Video Tampering

  • Line-Crossing Detection

  • Intrusion Detection

  • Region Entering Detection

  • Region Exiting Detection

  • Object Abandoned/Removal Detection

  • Vehicle Detection

  • Human Detection

• Anomaly Alarm :

  • Video Loss

  • Offline and IP Conflict

  • Disk Exception

  • Login Exception

• Alarm Linkage    :

  • Recording

  • White Light Alarm

  • Buzzer

  • Log

  • Audible Alarm

INTERFACES :

• Network Interface :

  • 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

• USB Interface : 2× USB 2.0

GENERAL :

• Operating Temperature : -10–55 °C

• Storage Temperature : -40–70 °C

• Storage Humidity : 10%~90% RH Non-Condensing

• Weight : 578.5 g

•  Working Temperature :

  • NVR: -10–55 °C

  • Power Adapter : 0–40 °C

• Working Humidity : 10%~90% RH Non-Condensing

• Dimensions( W X D X H ) : 246.2 × 148.2 × 45 mm

• External Power Supply : DC 12V/1.5A

• Net Weight : 0.59 Kg

• Gross Weight : 0.95 Kg

• Max. Power Consumption : 4.25 W (without disk)

VIDEO/IMAGE :

• Video Input : 8-Channel IP Video Input, up to 8 MP Resolution

  • Recording Resolution :

    • 8 MP / 5 MP / 4 MP / 3 MP

    • 1080p / UXGA / 720p / VGA

    • 4CIF / DCIF / 2CIF / CIF / QCIF

• HDMI Output Resolution : 1 Channel, Resolution :

  • 3840 ×2160/30Hz

  • 1920 × 1080/60Hz

  • 1680× 1050/60Hz

  • 1440 × 900/60Hz

  • 1280 × 1024/60Hz

  • 1280 × 720/60Hz

• VGA Output Resolution : 1 Channel, Resolution :

  • 1920 × 1080/60Hz

  • 1680× 1050/60Hz

  • 1440 × 900/60Hz

  • 1280 × 1024/60Hz

  • 1280 × 720/60Hz

In the Box :

• VIGI Network Video Recorder

• Power Adapter

• HDD Screws

• Mouse

• Quick Installation Guide

Certifications : CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
