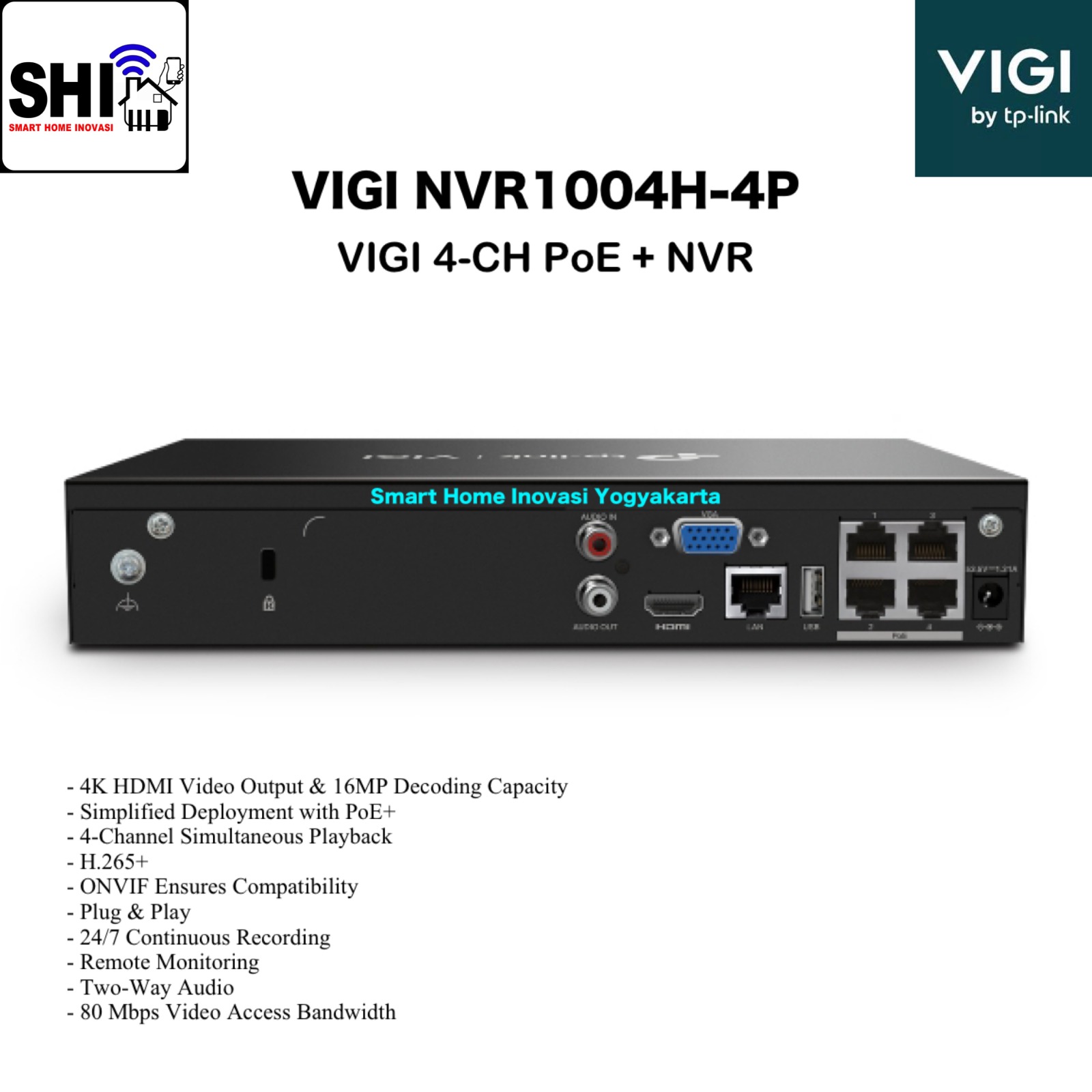

tp-link VIGI NVR 4 Channel PoE NVR1004H-4P

tp-link VIGI NVR 4 Channel PoE NVR1004H-4P

OVERVIEW :

• 4-Channel Live View and 4K HDMI Video Output

• 4× 10/100 Mbps PoE+ Ports with 53 W PoE Budget△

• Up to 8-ch @ 2MP (25fps) / 4-ch @ 4MP (25fps) Decoding Capability

• 4-Channel Synchronous Playback†

• 80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth

• 1× SATA Interface and 1 Up to 10 TB (1× 2TB HDD Preinstalled)

• H.265+ Compression Technology

• HDMI and VGA Simultaneous Output

• Remote Monitoring

SPESIFIKASI :

Video and Audio :

• IP Video Input   : 4-Channel

• Incoming Bandwidth : 80 Mbps

• Outgoing Bandwidth : 60 Mbps

• HDMI Output Resolution : 1 Channel, Resolution :

  • 3840x2160/30Hz

  • 1920x1080/60Hz

  • 1680x1050/60Hz

  • 1440x900/60Hz

  • 1280x1024/60Hz

  • 1280x720/60Hz

• VGA Output Resolution : 1 Channel, Resolution :

  • 1920x1080/60Hz

  • 1680x1050/60Hz

  • 1440x900/60Hz

  • 1280x1024/60Hz

  • 1280x720/60Hz

• Video Output Mode : HDMI/VGA Simultaneous Output

• Multi-View Display : 1/4

DECODING :

• Audio Compression : G.711A/G.711U/G.726

• Video Compression : H.265+/H.265/ H.264+/H.264

• Record Resolution :

  • 8MP/5MP/4MP/3MP

  • 1080p/UXGA/720p/VGA

  • 4CIF/DCIF/2CIF/CIF/QCIF

• Synchronous Playback : 4-Channel†

• Capability :

  • 25fps : 2-ch @ 8MP, 4-ch @ 4MP

  • 30fps : 4-ch @ 4MP, 3-ch @ 5MP

Record Management :

• Record Mode     :

  • Manual Recording

  • Scheduling Recording

  • Motion Detection Recording

• Playback Mode :

  • Instant Playback

  • Regular Playback

  • Tag Playback

  • Event Playback

• Backup Mode :

  • Regular Backup

  • Video Clip Backup

• Playback Function :                                                                                 • Play

  • Pause

  • Stop

  • Fast Forward

  • Fast Backward

  • Play By Frame

  • Full Screen

  • Video Clip

  • Export Clip

  • Digital Zoom

  • Lock Recording

  • Audio On/Off

NETWORK :

• Protocol :

  • UPnP (Plug and Play), NTP (Network Timing), SMTP,

  • TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP,

  • SSL/TLS, RTP, IPv4, ARP

• Mobile Phone Access : Android, iOS

• Web Browser : Chrome (57+), Firefox (52+), Edge (91+)

• Interoperability : ONVIF Profile S, CGI

External Interface :

• Network Interface :

  • 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

• USB Interface : 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port

• Audio Interface : 1-ch RCA Input; 1-ch RCA Output

• Alarm In/Out : N/A

• Serial Interface : N/A

• Power : 1× DC Jack

• Reset Button : 1

• Speaker : N/A

• eSATA : N/A

• HDMI : 1

• VGA : 1

HARD DISK :

• SATA : 1 SATA Interface

• Capacity : Up to 10 TB

PoE :

• Standard : 802.3at/af Compliant

• Interface :

  • 1- 4, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

• PoE Budget :

  • 53 W△ Available for All PoE+ Ports, 30 W Max per Port

Alarm :

• General Alarm

  • Motion Detection

  • Video Tampering

  • Scene Change Detection

  • Line-Crossing Detection

  • Intrusion Detection

  • Region Entering Detection

  • Region Exiting Detection

  • Loitering Detection

  • Object Abandoned/Removal Detection

  • Vehicle Detection

  • Human Detection

  • Abnormal Sound Detection

  • Smart Frame

• Anomaly Alarm • Video Loss

  • Offline and IP Conflict

  • Disk Exception

  • Login Exception

• Alarm Linkage    • Recording

  • White Light Alarm

  • Buzzer

  • Log

  • Audible Alarm

INTERFACES :

• Network Interface :

  • 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

• USB Interface : 2× USB 2.0

GENERAL :

• Operating Temperature : -10–55 °C

• Storage Temperature : -40–70 °C

• Storage Humidity : 10%~90% RH Non-Condensing

• Working Temperature :

• • NVR: -10–55 °C

• • Power Adapter :  0–40 °C

• Working Humidity : 10%~90% RH Non-Condensing

• Dimensions( W X D X H ) : 246.2 × 148.2 × 45 mm

• PoE        Standard : 802.3af/at

• PoE Ports : Ports 1-4

• PoE Budget : 53 W

• External Power Supply : 53.5V DC/1.31A

• Power Supply    : 53.5V DC/1.31A

• Max. Power Consumption : 4.25 W (without disk)

VIDEO/IMAGE :

• Video Input : 4-Channel IP Video Input, up to 8MP Resolution

• Recording Resolution :

  • 8MP/5MP/4MP/3MP

  • 1080p/UXGA/720p/VGA

  • 4CIF/DCIF/2CIF/CIF/QCIF

• HDMI Output Resolution : 1 Channel, Resolution :

  • 3840x2160/30Hz

  • 1920x1080/60Hz

  • 1680x1050/60Hz

  • 1440x900/60Hz

  • 1280x1024/60Hz,

  • 1024x768/60Hz

  • 1280x720/60Hz

• VGA Output Resolution : 1 Channel, Resolution:

  • 1920x1080/60Hz

  • 1680x1050/60Hz

  • 1440x900/60Hz

  • 1280x1024/60Hz

  • 1024x768/60Hz

  • 1280x720/60Hz

In the Box :

• VIGI Network Video Recorder

• Power Adapter

• HDD Screws

• Mouse

• Quick Installation Guide

Certifications :

• CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
