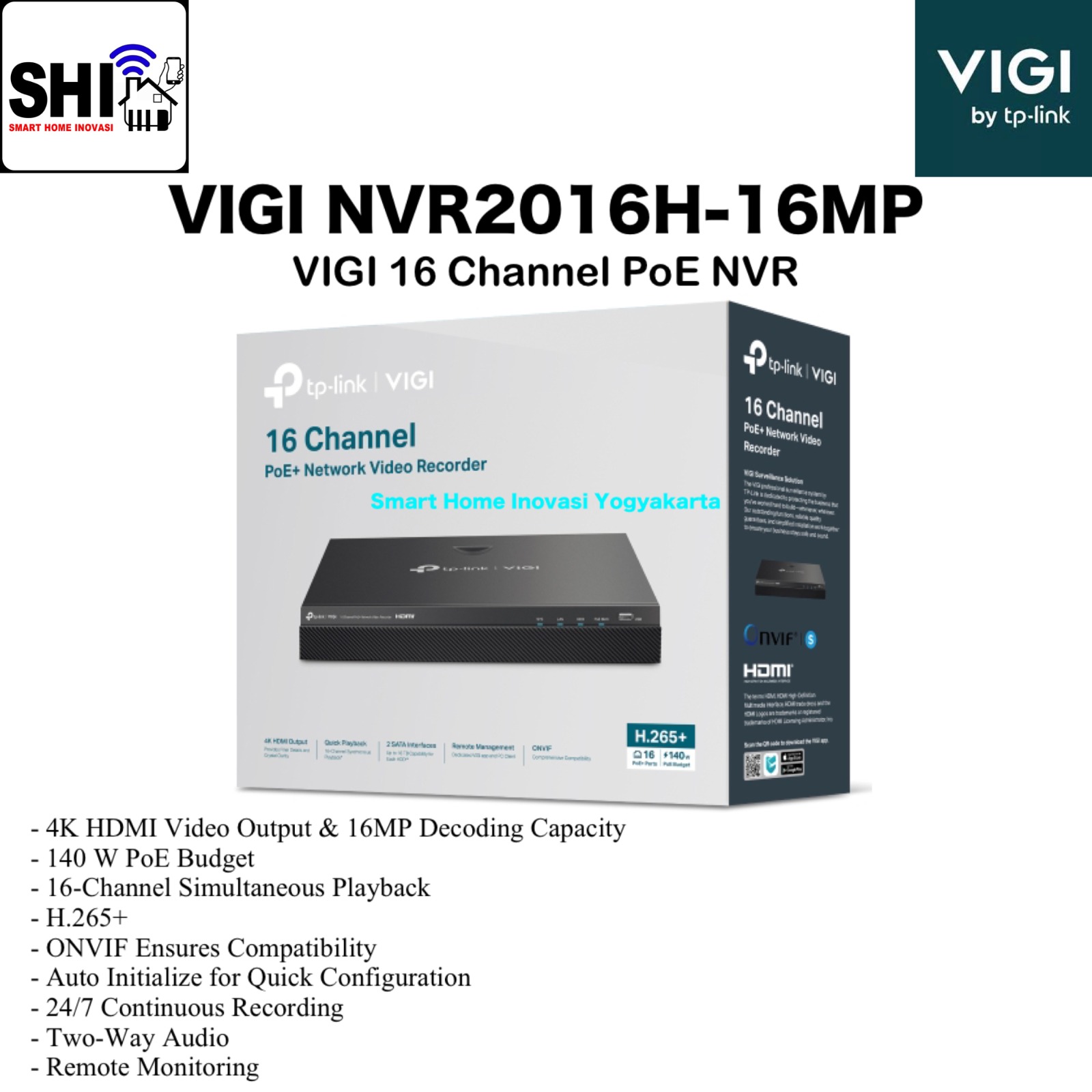

tp-link VIGI NVR 16 Channel PoE NVR2016H-16MP

tp-link VIGI NVR 16 Channel PoE NVR2016H-16MP

Video and Audio :

• IP Video Input : 16-Channel

• Incoming Bandwidth : 80 Mbps

• Outgoing Bandwidth : 60 Mbps

• HDMI Output Resolution : 1 Channel, Resolution :

  • 3840x2160/30Hz

  • 1920x1080/60Hz

  • 1680x1050/60Hz

  • 1440x900/60Hz

  • 1280x1024/60Hz

  • 1280x720/60Hz

• VGA Output Resolution 1 Channel, Resolution :

  • 1920x1080/60Hz

  • 1680x1050/60Hz

  • 1440x900/60Hz

  • 1280x1024/60Hz

  • 1280x720/60Hz

• Video Output Mode : HDMI/VGA Simultaneous Output

• Multi-View Display : 1/4/6/8/9/16

DECODING :

• Audio Compression : G.711A/G.711U/G.726

• Video Compression : H.265+/H.265/ H.264+/H.264

• Record Resolution :

  • 8MP/5MP/4MP/3MP

  • 1080p/UXGA/720p/VGA

  • 4CIF/DCIF/2CIF/CIF/QCIF

• Synchronous Playback : 16-Channel

• Capability :

  • 25fps :

    • 2-ch @ 8MP

    • 4-ch @ 4MP

    • 8-ch @ 2MP

  • 30fps :

    • 4-ch @ 3MP

    • 2-ch @ 5MP

Record Management :

• Record Mode :

  • Manual Recording

  • Scheduling Recording

  • Motion Detection Recording

• Playback Mode :

  • Instant Playback

  • Regular Playback

  • Tag Playback

  • Event Playback

• Backup Mode :

  • Regular Backup

  • Video Clip Backup

• Playback Function :

• Play

  • Pause

  • Stop

  • Fast Forward

  • Fast Backward

  • Play By Frame

  • Full Screen

  • Video Clip

  • Export Clip

  • Digital Zoom

  • Lock Recording

  • Audio On/Off

NETWORK :

• Protocol : UPnP (Plug and Play), NTP (Network Timing)

• Mobile Phone Access :

  • Android, iOS

  • Web Browser :

    • Chrome (57+), Firefox (52+), Edge (91+)

• Interoperability : ONVIF, CGI

External Interface :

• Network Interface :

  • 1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface

• USB Interface : 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port

• Audio Interface : 1, Audio In; 1, Audio Out

• Alarm In/Out : N/A

• Serial Interface : N/A

• Power : 1× DC Jack

• Reset Button : 1

• Speaker : N/A

• eSATA : 1

• HDMI : 1

• VGA : 1

HARD DISK :

•  SATA : 2 SATA Interfaces

• Capacity : Up to 10 TB Capacity for Each HDD

PoE :

• Standard : 802.3at/af Compliant

• Interface :

  • 1-16, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

• PoE Budget :

  • 140 W Available for All PoE+ Ports, 30 W Max per Port

Alarm :

• General Alarm :

  • Motion Detection

  • Video Tampering

  • Line-Crossing Detection

  • Intrusion Detection

  • Region Entering Detection

  • Region Exiting Detection

  • Object Abandoned/Removal Detection

  • Vehicle Detection

  • Human Detection

  • Smart Frame

• Anomaly Alarm :

  • Video Loss

  • Offline and IP Conflict

  • Disk Exception

  • Login Exception

  • Fan Exception

• Alarm Linkage :

  • Recording

  • White Light Alarm

  • Buzzer

  • Log

  • Audible Alarm

GENERAL :

• Storage Temperature  : -40–70 °C

• Storage Humidity : 10%~90% RH Non-Condensing

• Working Temperature

  • NVR: -10–55 °C

  • Power Adapter: 0–40 °C

• Working Humidity : 10%~90% RH Non-Condensing

• Dimensions( W X D X H ) : 330 × 285 × 45 mm

• Net Weight : 2.1 Kg

• Gross Weight : 4.1 Kg

• Power Supply : 53.5V DC/3.37A

• Max. Power Consumption :

  • 6.2 W (Without Disk)

  • 40 W (With Disk)

In the Box :

• VIGI Network Video Recorder

• Power Adapter

• Power Cables

• HDD Power Cables

• HDD Data Cables

• Mounting Accessories

• Mouse

• Quick Installation Guide

Certifications :

• CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
