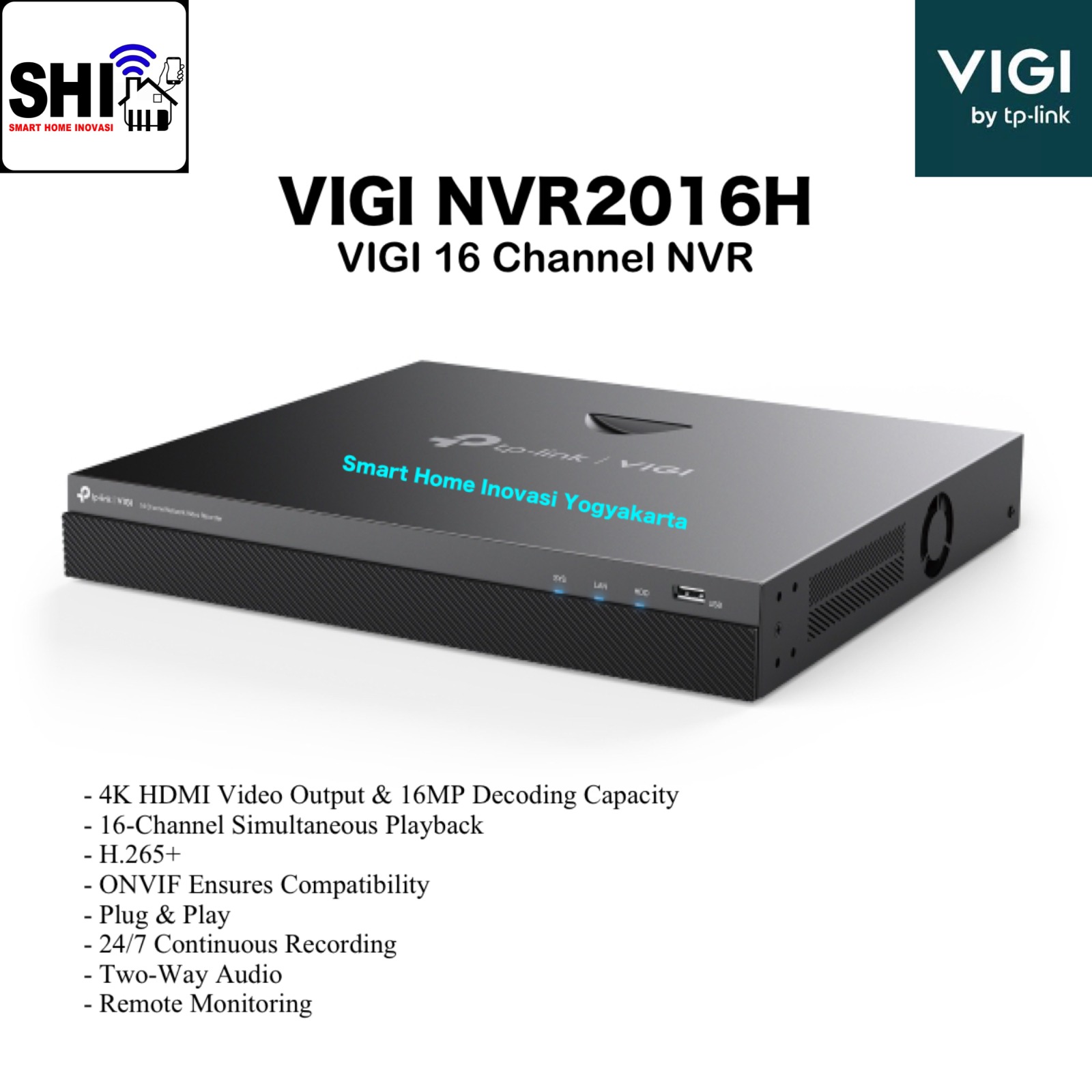

tp-link VIGI NVR 16 Channel NVR2016H

tp-link VIGI NVR 16 Channel NVR2016H

Video and Audio :

• IP Video Input   : 16-Channel

• Incoming Bandwidth : 80 Mbps

• Outgoing Bandwidth : 60 Mbps

• HDMI Output Resolution :

  1 Channel, Resolution :

  • 1280x720/60Hz

  • 1280x1024/60Hz

  • 1440x900/60Hz

  • 1680x1050/60Hz

  • 1920x1080/60Hz

  • 3840x2160/30Hz

• VGA Output Resolution : 1 Channel, Resolution:

  • 1280x720/60Hz

  • 1280x1024/60Hz

  • 1440x900/60Hz

  • 1680x1050/60Hz

  • 1920x1080/60Hz

• Video Output Mode : HDMI/VGA Simultaneous Output

• Multi-View Display : 1/4/6/8/9/16

DECODING :

• Audio Compression : G.711A/G.711U/G.726

• Video Compression : H.265+/H.265/ H.264+/H.264

• Record Resolution :

  • 8MP/5MP/4MP/3MP/

  • 1080p/UXGA/720p/VGA/

  • 4CIF/DCIF/2CIF/CIF/QCIF

• Synchronous Playback : 16-Channel

• Capability :

  • 25fps :

    • 2-ch @ 8MP

    • 4-ch @ 4MP

    • 8-ch @ 2MP

  • 30fps :

    • 4-ch @ 3MP

    • 2-ch @ 5MP

Record Management :

• Record Mode :

  • Manual Recording

  • Scheduling Recording

  • Motion Detection Recording

• Playback Mode :

  • Instant Playback

  • Regular Playback

  • Tag Playback

  • Event Playback

• Backup Mode :

  • Regular Backup

  • Video Clip Backup

• Playback Function :

  • Play

  • Pause

  • Stop

  • Fast Forward

  • Fast Backward

  • Play By Frame

  • Full Screen

  • Video Clip

  • Export Clip

  • Digital Zoom

  • Lock Recording

  • Audio On/Off

NETWORK :

• Protocol : UPnP (Plug and Play), NTP (Network Timing)

• Mobile Phone Access : Android, iOS

• Web Browser : Chrome (57+), Firefox (52+), Edge (91+)

• Interoperability : ONVIF, CGI

External Interface :

• Network Interface :

  • 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

• USB Interface :

  • 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port

• Audio Interface : 1, Audio In; 1, Audio Out

• Alarm In/Out : N/A

• Serial Interface : N/A

• Power : 1× DC Jack

• Reset Button : 1

• Speaker : N/A

• eSATA : 1

• HDMI : 1

• VGA : 1

HARD DISK :

• SATA : 2 SATA Interfaces

• Capacity : Up to 10 TB Capacity for Each HDD

Alarm :

• General Alarm :

  • Motion Detection

  • Video Tampering

  • Intrusion Detection

  • Line-Crossing Detection

• Anomaly Alarm :

  • Video Loss

  • Offline and IP Conflict

  • Disk Exception

  • Login Exception

  • Fan Exception

• Alarm Linkage :

  • Recording

  • White Ligh Alarm

  • Buzzer

  • Log

  • Audible Alarm

GENERAL :

• Storage Temperature : -40–70 °C

• Storage Humidity : 10%~90% RH Non-Condensing

• Working Temperature : -10–55 °C

• Working Humidity : 10%~90% RH Non-Condensing

• Dimensions( W X D X H ) : 330 × 285 × 45 mm

• Net Weight : 1.9 Kg

• Gross Weight     : 3.2 Kg

• Power Supply : 12V DC/3.3A

• Max. Power Consumption :

  • 4.78 W (Without Disk)

  • 24.16 W (With Disk)

In the Box :

• VIGI Network Video Recorder

• Power Adapter

• HDD Screws

• Mouse

• Quick Installation Guide

Certifications :

• CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
