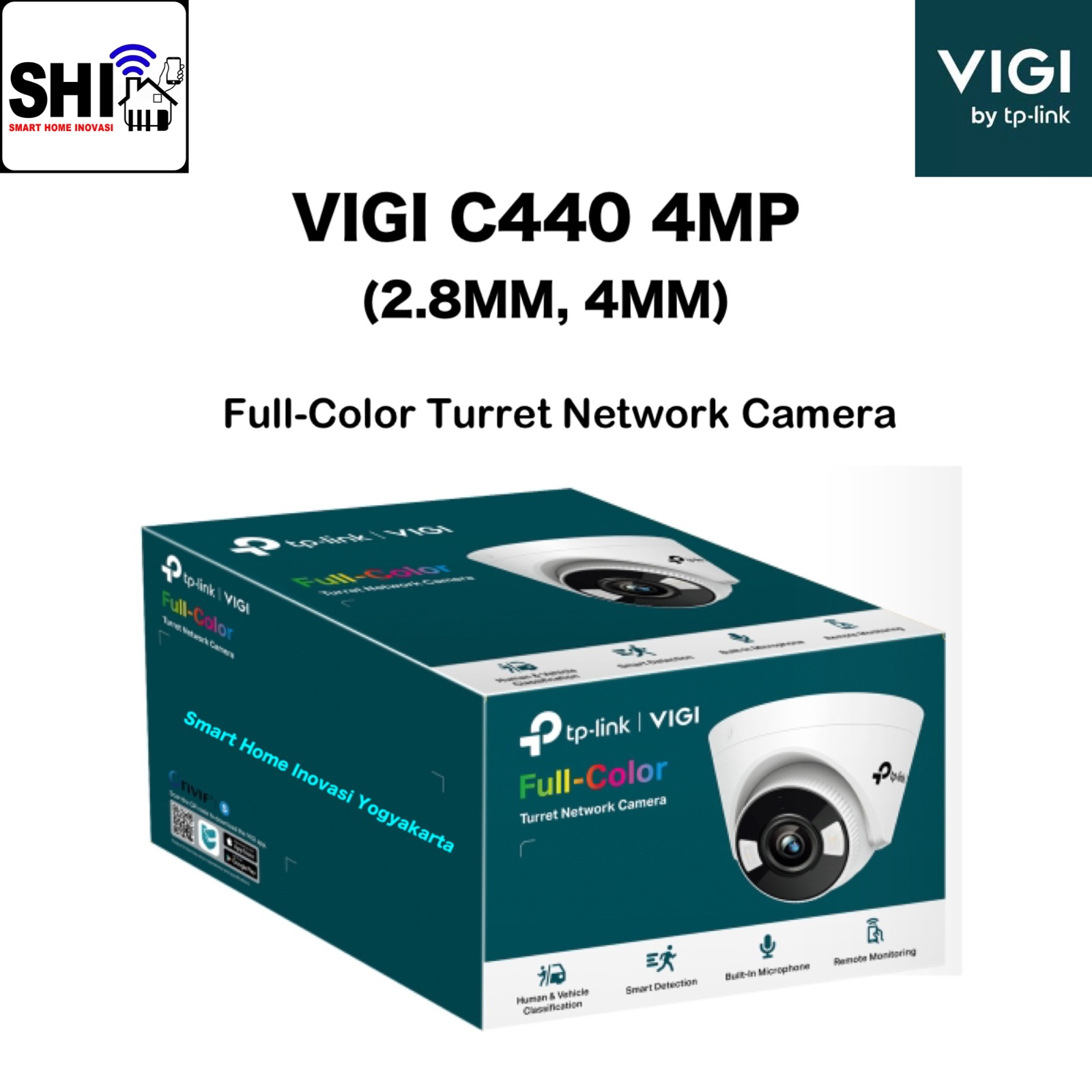

tp-link VIGI C440 4MP (2.8MM, 4MM) Full-Color Turret Network Camera

tp-link VIGI C440 4MP (2.8MM, 4MM) Full-Color Turret Network Camera

CAMERA :

• Image Sensor : 1/3” Progressive Scan CMOS

• Shutter Speed : 1/3 to 1/10000 s

• Slow Shutter : Yes

• Aperture :

  • 2.8 mm : F1.6

  • 4 mm : F1.6

• Lens : Fixed focal lens (2.8 mm / 4 mm)

• Lens Mount : M12

• Minimum Illumination : 0 lux with IR/white Light

• Day/Night Mechanism : IR Cut Filter

• Day/Night Switch : Unified/ Scheduled/ Auto

• Digital Noise Reduction : 3D DNR

• WDR : DWDR

• IR Working Distance : 30m

• Pan/Tilt Range :

  • Pan : 0° to 360°

  • Tilt : 0° to 85°

  • Rotate: 0° to 360°

• Illumination Distance : 30m (LED)

• Viewing Angle :

  • 2.8 mm : Horizontal : 102°, Vertical : 55°, Diagonal : 122°

  • 4 mm : Horizontal : 79°, Vertical : 43°, Diagonal : 93°

LENS :

• Type : Fixed Focal Lens

• Focal Length : 2.8/4 mm

• Aperture :

  • 2.8 mm : F1.6

  • 4 mm : F1.6

• FOV :

  • 2.8mm :

    •

      Horizontal : 102°, Vertical : 55°, Diagonal : 122°

  • 4mm:

    • Horizontal : 79°, Vertical : 43°, Diagonal : 93°

• Lens Mount : M12

• DORI (Detect, Observe, Recognize, Identify) Distance :

  • 2.8 mm :

    • 64 m (209 ft) x 27 m (87 ft) x 13 m (42 ft) x 6 m (21 ft)

  •  4 mm :

    • 80 m (262 ft) x 33 m (109 ft) x 16 m (52 ft) x 8 m (26 ft)

• Angle Adjustment (Manual) Range :

  • Pan : 0° to 360°,

  • Tilt : 0° to 85°

  • Rotate : 0° to 360°

ILLUMINATOR:

•  IR LED :

  • Quantity : 2

  • Range : 30m

  • Wavelength : 850nm

• White LED :

  • Quantity : 2

  • Range : 30m

• Illuminator On/Off Control : Unified/ Scheduled/ Auto

VIDEO :

• Max. Resolution : 2560 X 1440

• Main Stream :

  • Frame Rate :

    • 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

    • 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

  •  Resolution:

    • 2560x1440, 2304x1296, 2048x1280, 1920x1080

• Sub-Stream :

  • Frame Rate :

    • 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

    • 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

  •  Resolution:

    • 2560x1440, 2304x1296, 2048x1280, 1920x1080

• Bit Rate Control : CBR, VBR

• Video Compression :

  • Main Stream : H.265+/H.265/H.264+/H.264

  • Sub-Stream : H.265/H.264

• H.264 Type : Main Profile/High Profile

• H.264+ : Main Stream Supported

• H.265 Type : Main Profile

• H.265+ : Main Stream Supported

• Video Bit Rate :

  • Main Stream : 256 Kbps to 4 Mbps

  • Sub-Stream : 64 Kbps to 512 Kbps

Image :

• Image Settings :

  • Mirror

  • Brightness

  • Contrast

  • Saturation

  • Sharpness

  • Exposure

  • WDR

  • White Balance

  • Prevent Overexposure to Infrared Light

  • HLC Adjustable by Client Software

• Image Enhancement : BLC/3D DNR/HLC/SmartIR

• Wide Dynamic Range : DWDR

• SNR : ≥ 52 dB

• Image Parameters Switch : Yes

• Privacy Mask : Up to 4 Masks

• ROI : 1 Region

• OSD Setting : Yes

AUDIO :

• Audio Communication : Two-Way Audio

• Audio Input : Yes

• Audio Output : Yes

• Audio Compression : Yes

• Audio Sampling Rate : 8KHz

• Environment Noise Filtering : Yes

• Audio Bit Rate : 64 Kbps(G.711 alaw)

NETWORK :

• Protocol :

  • TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP,

  • DNS, RTSP, NTP, UPnP UDP, SSL/TLS

• ONVIF : Yes

• API : ONVIF

• Simultaneous Live View : 3 Main Streams & 3 Sub-Streams

• Web Browser :

  • Google Chrome® 57 and above

  • Firefox® 52 and above

  • Safari® 11 and above

  • Microsoft® Edge 91 and above

• Cloud : Yes

• Security :

  • Password Protection

  • HTTPS Encryption

  • IP Address Filter

  • Digest Authentication

ALARM AND EVENT MANAGEMENT :

• Smart Event :

  • Area Intrusion Detection

  • Line-Crossing Detection

  • People Detection

• Basic Event :

  • Motion Detection

  • Video Tampering Detection

  • Exception ( Illegal Login)

• Alarm Linkage :

  • Memory Card Video Recording

  • Message Push

  • Audible Warning

  • White Light Flashing

• Linkage Method : N/A

• Output Notification : Message Push

INTERFACES :

• Network Interface : 1 RJ45 10/100M Self-Adaptive Ethernet Port

• Audio Input : Built-in Microphone

• Audio Output : Built-in Speaker

• Alarm : N/A

• Reset Button : Yes

• Power : DC Power Port

• Button : Reset Button

• Slot : Micro SD card

• On-board Storage :

  • Built-In Memory Card Slot

  • Support MicroSD Card, Up to 256 GB

• Built-in Microphone : Yes

  • Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera

• Built-in Speaker : Yes

• Audio : N/A

GENERAL :

• Operating Temperature : -30–60 °C

• Storage Temperature : -40–60 °C

• Operating Humidity : 95% or Less (Non-Condensing)

• Storage Humidity : 95% or Less (Non-Condensing)

• Dimensions( H X W X D ) : 123 × 123 × 84 mm

• Material : Plastic

• General Features :

  • Two Streams

  • Mirror

  • Privacy Masks

  • Password Reset via E-mail

  • HTTP Listening

• Power Requirements :

  • 12V DC ± 5%, 5.5mm Coaxial Power Plug

  • PoE (802.3af/at, class 0)

• Net Weight : 0.25 Kg

• Gross Weight : 0.4 Kg

• Max. Power Consumption :

  • 12V DC : Max 5.5W

  • PoE : Class 0

• Power Supply :

  • 12V DC ± 5%, 5.5mm Coaxial Power Plug

  • PoE (802.3af/at, class 0)

• Protection : N/A

• Product Dimensions (L x W x H) : 123× 83× 123 mm

In the Box :

• VIGI Network Camera

• Quick Start Guide

• Screws and Anchors

• Mounting Template

Certifications : CE, FCC, RCM, BSMI, VCCI, RoHS
