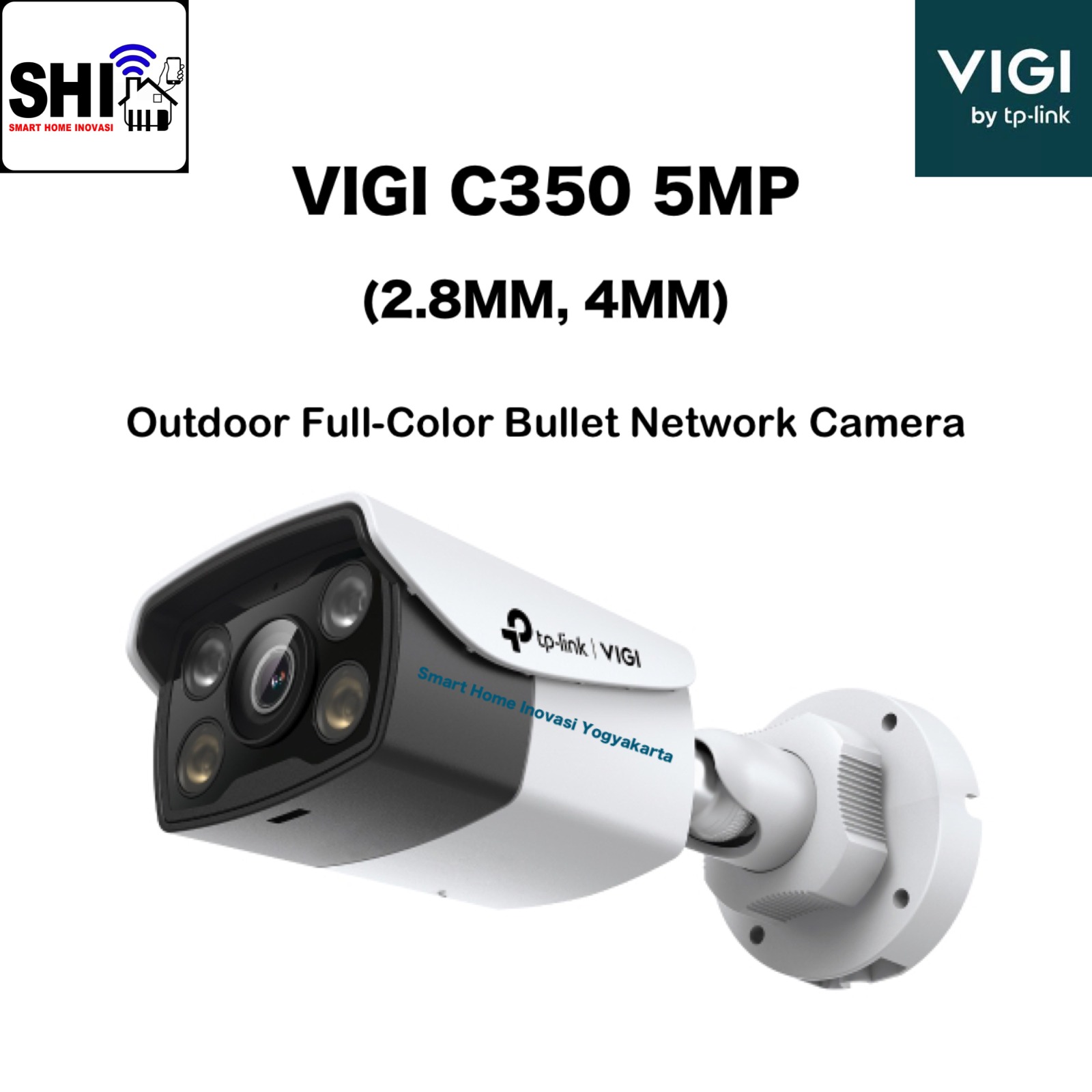

tp-link VIGI C350 5MP (2.8MM, 4MM), Outdoor Full-Color Bullet Network Camera

tp-link VIGI C350 5MP (2.8MM, 4MM), Outdoor Full-Color Bullet Network Camera

CAMERA :

• Image Sensor : 1/2.7” Progressive Scan CMOS

• Shutter Speed : 1/3 to 1/10000 s

• Slow Shutter : Yes

• Minimum Illumination : 0.005 Lux; 0 Lux with IR/white light

• Day/Night Mechanism : IR Cut Filter

• Day/Night Switch : Unified/ Scheduled/ Auto

LENS :

• Type : Fixed Focal Lens

• Focal Length : 4 mm

• Aperture : F1.6

• FOV :

  • 2.8mm :

    • Horizontal : 109°, Vertical : 57°, Diagonal : 128°

  • 4mm:

    • Horizontal : 90°, Vertical : 48°, Diagonal : 107°

  • 6mm:

    • Horizontal : 56°, Vertical : 30.5°, Diagonal : 66°

• Lens Mount : M12*P 0.5

• DORI (Detect, Observe, Recognize, Identify) Distance :

  • 2.8 mm :

    • 63 m (206 ft) x 26 m (85 ft) x 12 m (39 ft) x 6 m (19 ft)

  • 4 mm

    • 80 m (262 ft) x 33 m (109 ft) x 16 m (52 ft) x 8 m (26 ft)

  •  6 mm :

    • 120 m (393 ft) x 50 m (164 ft) x 24 m (78 ft) x 12 m (39 ft)

• Angle Adjustment (Manual) Range :

  • Pan : 0° to 360°

  • Tilt: 0° to 90°

  • Rotation: 0° to 360°

ILLUMINATOR :

• IR LED :

  • Quantity : 2

  • Range : 30m

  • Wavelength : 850nm

• White LED :

  • Quantity : 2

  • Range : 30m

• Illuminator On/Off Control :

  • Auto

  • Scheduled

  • Always on

  • Always off

VIDEO :

• Max. Resolution : 2880 X 1620

• Main Stream :

  • Frame Rate ：

    • 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

    • 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

  • Resolution :

    • 2880x1620

    • 2688x1520

    • 2304x1296

    • 2048x1280

    • 1920x1080

    • 1280x720

  • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

• Sub-Stream :

  • Frame Rate：

    • 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

    • 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

  • Resolution :

    • 704x576, 640x480, 352x288, 320x240

  • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

• Bit Rate Control : CBR, VBR

• Video Compression :

  • Main Stream : H.265+/H.265/H.264+/H.264

  • Sub-Stream : H.265/H.264

• H.264 Type : Main Profile/High Profile

• H.264+ : Main Stream Supported

• H.265 Type : Main Profile△

• H.265+ : Main Stream Supported△

• Video Bit Rate :

  • Main Stream : 256 Kbps to 6 Mbps

  • Sub-Stream : 64 Kbps to 512 Kbps

Image :

• Image Settings :

  • Mirror

  • Brightness

  • Contrast

  • Saturation

  • Sharpness

  • Exposure

  • WDR

  • White Balance

  • Prevent Overexposure to Infrared Light

  • HLC Adjustable by Client Software

• Image Enhancement : BLC/3D DNR/HLC/SmartIR

• Wide Dynamic Range : 120 dB

  • Note: When People & Vehicle Analytics is enabled, only DWDR is supported.

• SNR : ≥ 52 dB

• Image Parameters Switch : Yes

• Privacy Mask : Up to 4 Masks

• ROI : 1 Region

• OSD Setting : Yes

AUDIO :

• Audio Communication : Two-Way Audio

• Audio Input : Yes

• Audio Output : Yes

• Audio Compression : Yes

• Audio Sampling Rate : 8KHz

• Environment Noise Filtering : Yes

• Audio Bit Rate : 64 Kbps(G.711 alaw)

NETWORK :

• Protocol :

  • TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP,

  • DNS, RTSP, NTP, UPnP UDP, SSL/TLS

• ONVIF : Yes

• API : Open Network Video Interface (Profile S)

• Simultaneous Live View 3 Main Streams & 3 Sub-Streams

• Client    VIGI App, VIGI Security Manager

• Web Browser     Google Chrome® 57 and above

• Firefox® 52 and above

• Safari® 11 and above

• Microsoft® Edge 91 and above

• Cloud    Yes

• Security :

  • Password Protection

  • HTTPS Encryption

  • IP Address Filter

  • Digest Authentication

ALARM AND EVENT MANAGEMENT

• Smart Event :

  • Human & Vehicle Classification

  • Area Intrusion Detection

  • Line-Crossing Detection

  • People Detection

  • Vehicle Detection

  • Region Entering Detection

  • Region Exiting Detection

  • Object Abandoned Detection

  • Object Removal Detection

  • Loitering Detection

  • Scene Change Detection

• Basic Event :

  • Motion Detection

  • Video Tampering Detection

  • Exception ( Illegal Login)

  • Scene Change Detection

• Alarm Linkage :

  • Memory Card Video Recording

  • Message Push

  • Audible Warning

  • White Light Flashing

• Linkage Method : N/A

• Output Notification : Message Push

Deep Learning Function :

• People & Vehicle Analytics :

  • Search and filter to people or vehicle of interest based on
          many different attributes, making post-event search faster
          and easier.

• Face Capture : N/A

• Face Comparison : N/A

INTERFACES :

• Network Interface :

  • 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE

• Alarm : N/A

• Reset Button : Yes

• Power : DC Power Port

• On-board Storage :

  • Built-In Memory Card Slot

  • Support MicroSD Card, up to 256 GB

• Built-in Microphone : Yes

  • Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera

• Built-in Speaker : Yes

• Audio : N/A

GENERAL :

• Operating Temperature : -30–60 °C

• Storage Temperature : -40–60 °C

• Operating Humidity : 95% or Less (Non-Condensing)

• Storage Humidity : 95% or Less (Non-Condensing)

• Material : Plastic

• Power Supply :

  • 12V DC ± 5%, Max. 9 W, 5.5 mm Coaxial Power Plug

  • PoE : 802.3af/at, class 0, Max. 10.5 W

• Protection : IP67

• Product Dimensions (L x W x H) :

  • 78.42× 186.88× 71.55 mm

In the Box :

• VIGI Network Camera

• Quick Start Guide

• Waterproof Cable Attachments

• Mounting Accessories

Certifications : CE, NTRA, VCCI, KC, BSMI, FCC, IC

SKU :

2.8 mm : C350-2.8mm

4 mm : 4895252502978
