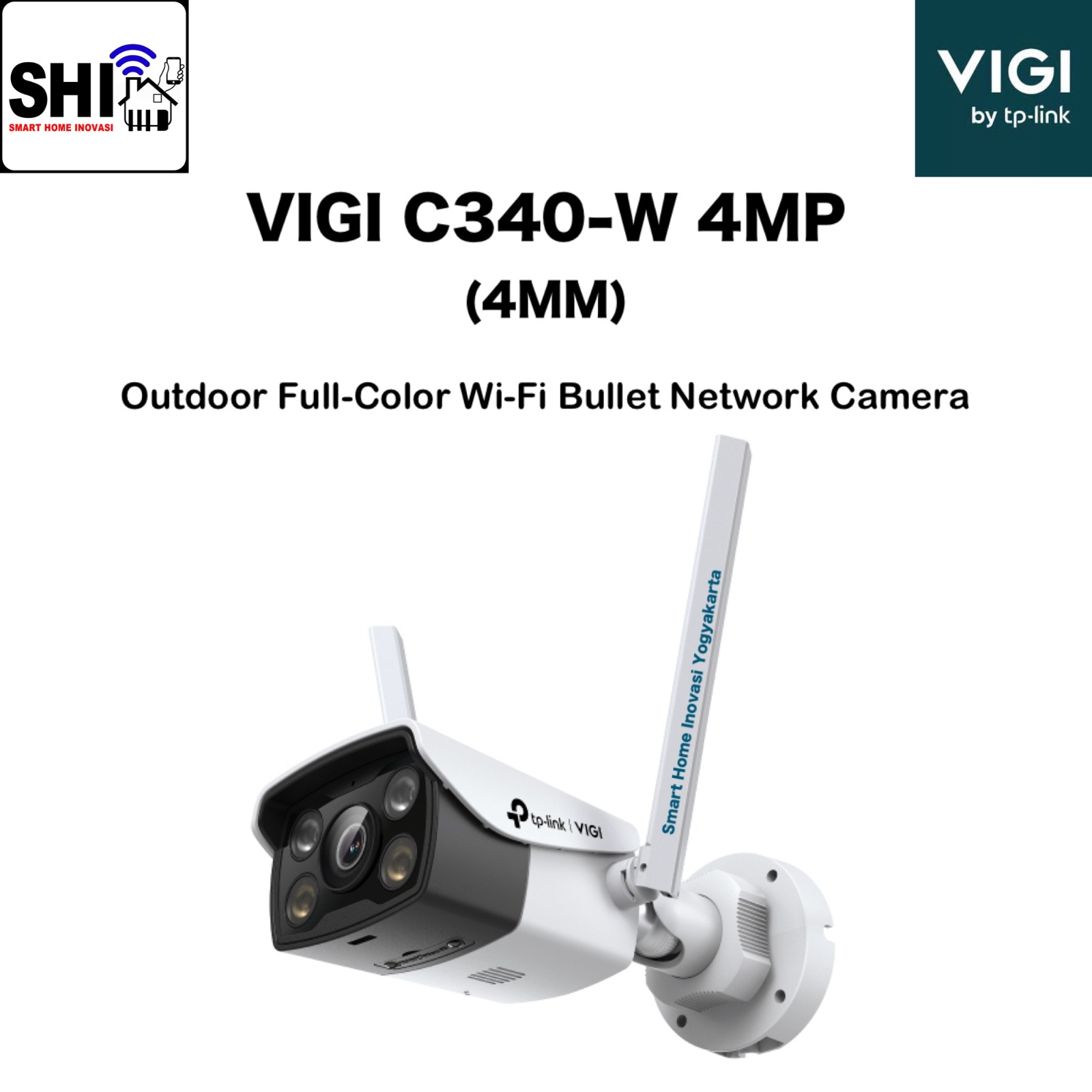

tp-link VIGI C340-W 4MP (4MM), Outdoor Full-Color Wi-Fi Bullet Network Camera

tp-link VIGI C340-W 4MP (4MM), Outdoor Full-Color Wi-Fi Bullet Network Camera

CAMERA :

• Image Sensor : 1/3” Progressive Scan CMOS

• Shutter Speed : 1/3 to 1/10000 s

• Slow Shutter : Yes

• Minimum Illumination :

  • 0.005 Lux

  • 0 Lux with IR/white light

• Day/Night Mechanism : IR Cut Filter

• Day/Night Switch : Unified/ Scheduled/ Auto

LENS :

• Type : Fixed Focal Lens

• Focal Length : 4 mm

• Aperture : F1.6

• FOV :

  • Horizontal : 76.3°, Vertical : 40.6°, Diagonal : 90.2°

• Lens Mount : M12

• DORI (Detect, Observe, Recognize, Identify) Distance :

  • 80 m (262 ft) x 33 m (109 ft) x 16 m (52 ft) x 8 m (26 ft)

• Angle Adjustment (Manual) Range :

  • Pan : 0° to 360°

  • Tilt : 0° to 90°

  • Rotation : 0° to 360°

ILLUMINATOR :

• IR LED :

  • Quantity : 2

  • Range : 30m

  • Wavelength : 850nm

• White LED :

  • Quantity : 2

  • Range : 30m

• Illuminator On/Off Control :

  • Auto

  • Scheduled

  • Always on

  • Always off

VIDEO :

• Max. Resolution : 2560 X 1440

• Main Stream :

  • Frame Rate ：

    • 50Hz : 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

    • 60Hz : 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

  • Resolution :

    • 2560x1440

    • 2304x1296

    • 2048x1280

    • 1920x1080

    • 1280x720

  • Note : If the image rotation is set to 90° or 270°,
                     the frame rate only supports up to 20fps.

• Sub-Stream :

  • Frame Rate ：

    • 50Hz : 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

    • 60Hz : 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

  • Resolution :

    • 704x576, 640x480, 352x288, 320x240

  •  Note : If the image rotation is set to 90° or 270°,
                      the frame rate only supports up to 20fps.

• Bit Rate Control : CBR, VBR

• Video Compression :

  • Main Stream : H.265+/H.265/H.264+/H.264

  • Sub-Stream : H.265/H.264

• H.264 Type : High Profile

• H.264+ : Main Stream Supported

• H.265 Type : Main Profile

• H.265+ : Main Stream Supported

• Video Bit Rate :

  • Main Stream : 256 Kbps to 3 Mbps

  • Sub-Stream : 64 Kbps to 512 Kbps

Image :

• Image Settings :

  • Mirror

  • Brightness

  • Contrast

  • Saturation

  • Sharpness, Exposure, WDR,

  • White Balance

  • Prevent Overexposure to Infrared Light

  • HLC Adjustable by Client Software

  • Rotation (90°/270°)

• Image Enhancement : BLC/3D DNR/HLC/SmartIR

• Wide Dynamic Range : DWDR

• SNR : ≥ 52 dB

• Image Parameters Switch : Yes

• Privacy Mask : Up to 4 Masks

• ROI : 1 Region

• OSD Setting : Yes

AUDIO :

• Audio Communication : Two-Way Audio

• Audio Input : Yes

• Audio Output : Yes

• Audio Compression : Yes

• Audio Sampling Rate : 8KHz

• Environment Noise Filtering : Yes

• Audio Bit Rate : 64 Kbps(G.711 alaw)

NETWORK :

• Protocol :

  • TCP/IP

  • UDP

  • ICMP

  • HTTP

  • HTTPS

  • DHCP, DNS, RTSP

  • NTP

  • UPnP

  • SSL/TLS

  • FTP/SFTP

  • RTP

  • IPv4

  • IPv6

  • ARP

• ONVIF : Yes

• API : Open Network Video Interface (Profile S)

• Simultaneous Live :

  • View 3 Main Streams & 3 Sub-Streams

• Client : VIGI App, VIGI Security Manager, Web UI

• Web Browser :

  • Google Chrome® 57 and above

  • Firefox® 52 and above

  • Safari® 11 and above

  • Microsoft® Edge 91 and above

• Cloud : Yes

• Security :

  • Password Protection

  • HTTPS Encryption

  • IP Address Filter

  • Digest Authentication

WIRELESS :

• Standards and Protocols : IEEE 802.11b/g/n

• WiFi Channels :

  • UN : 1-13

  • US : 1-11

• Frequency : 2.4 GHz

• Wireless Transmit Power : High

• Auto Wireless Channel : N/A

• Wireless Statistics : N/A

• Throughput Monitoring : N/A

• Radio Bandwidth :

  • Auto : N/A

  • 20M : Yes

  • 40M : Yes

• Wireless Rate  :

  • 11Mbps(802.11b)

  • 54Mbps(802.11g)

  • 150/300Mbps(802.11n)

• Wireless Security : WPA-PSK/WPA2-PSK

• Wireless Mode : AP, AP Client

ALARM AND EVENT MANAGEMENT :

• Smart Event :

  • Intrusion Detection

  • Line-Crossing Detection

  • Region Entering Detection

  • Region Exiting Detection

  • Object Abandoned/Removal Detection

  • Scene Change Detection

  • Abnormal Sound Detection

  • People Detection

  • Vehicle Detection

  • Loitering Detection

• Basic Event :

  • Motion Detection

    • (Enhanced with Human & Vehicle Classification for more accurate alerts)

  • Video Tampering Detection

  • Exception ( Illegal Login)

• Alarm Linkage :

  • Memory Card Video Recording

  • Message Push

  • Audible Warning

  • White Light Flashing

  • Upload Capture to FTP

INTERFACES :

• Network Interface : 1

  • RJ45 10/100M Self-Adaptive Ethernet Port

• Alarm : N/A

• Reset Button : Yes

• Power : DC Power Port

• On-board Storage :

  • Built-In Memory Card Slot

  • Support MicroSD Card, Up to 512 GB

• Built-in Microphone : Yes

  • Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera

• Built-in Speaker : Yes

• Audio : N/A

GENERAL :

• Operating Temperature : -30–60 °C

• Storage Temperature : -40–60 °C

• Operating Humidity : 95% or Less (Non-Condensing)

• Storage Humidity : 95% or Less (Non-Condensing)

• Material : Plastic

• Net Weight : 0.38 Kg

• Gross Weight : 0.66 Kg

• Power Supply :

  • 9-12V DC/0.85-1.0A

  • 5.5mm Coaxial Power Plug

• Antenna :

  • Quantity: 2

  • Type : 2.4GHz Welded Dipole Omni-Directional Antenna

  • Gain : 2.0dBi

• Protection : IP66 Waterproof

• Product Dimensions (L x W x H) :

  • 78.5 × 188.0 × 161.89 mm (3.09 × 7.40 × 3.67 in)

In the Box :

• VIGI Network Camera

• Quick Start Guide

• Waterproof Cable Attachments

• Power Adapter

• Mounting Accessories

Certifications : CE, NTRA, JRF, VCCI, BSMI, NCC
