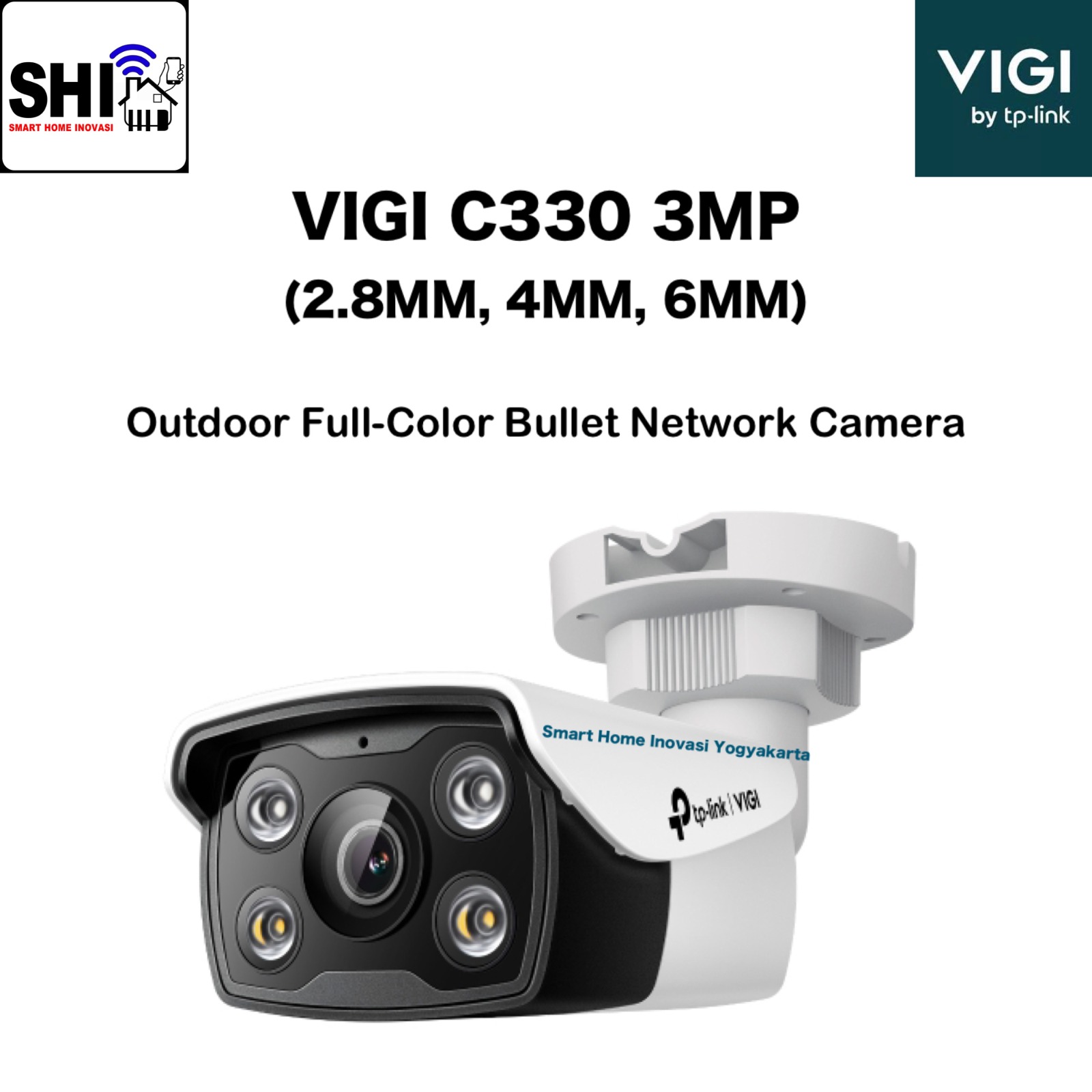

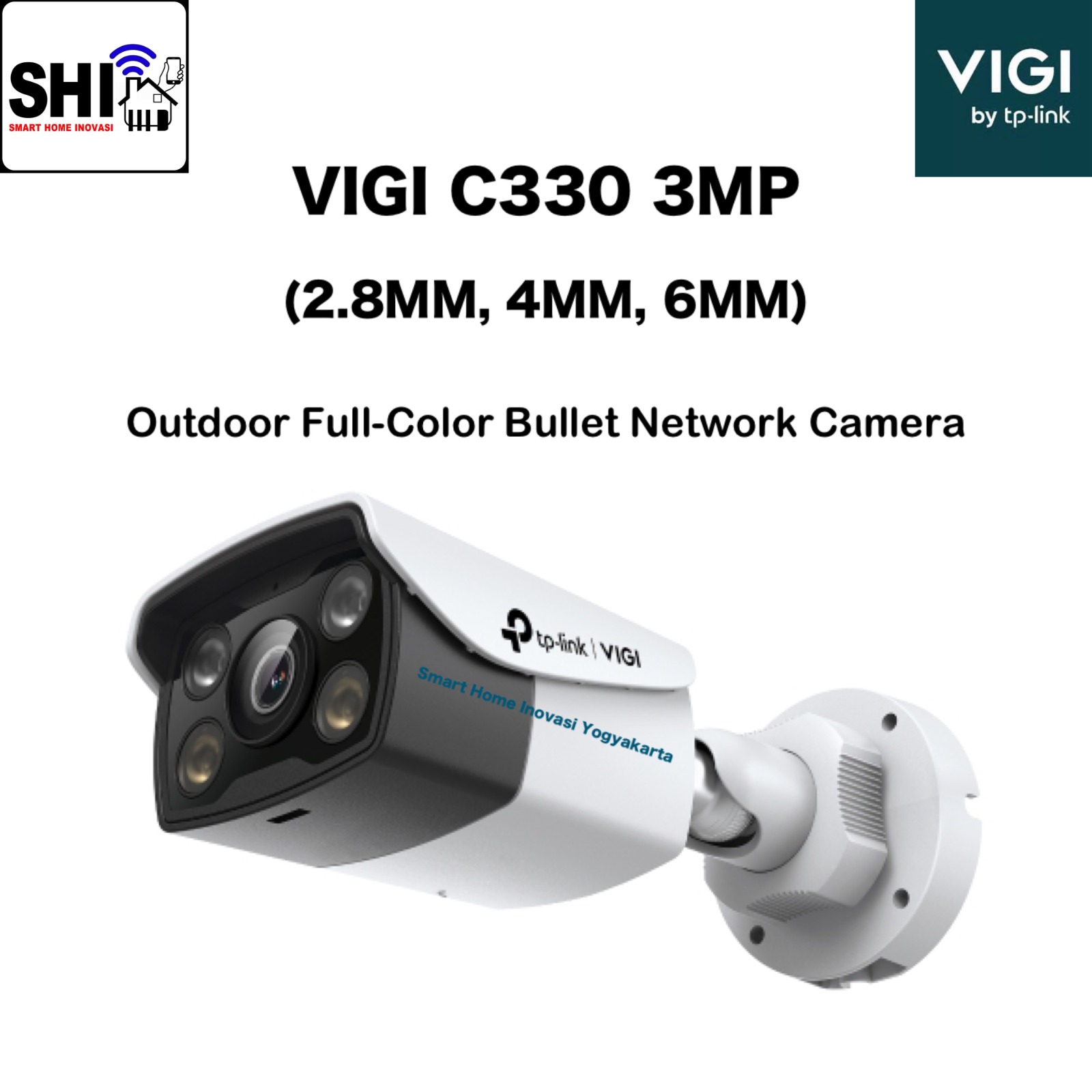

tp-link VIGI C330 3MP (2.8MM,4MM,6MM), Outdoor Full-Color Bullet Network Camera

tp-link VIGI C330 3MP (2.8MM,4MM,6MM), Outdoor Full-Color Bullet Network Camera

CAMERA :

• Image Sensor : 1/2.8” Progressive Scan CMOS

• Shutter Speed : 1/3 to 1/10000 s

• Slow Shutter : Yes

• Minimum Illumination :

  • 0.005 Lux; 0 Lux with IR/White Light

• Day/Night Mechanism : IR Cut Filter

• Day/Night Switch : Unified/ Scheduled/ Auto

LENS :

• Type : Fixed Focal Lens

• Focal Length : 2.8/4/6 mm

• Aperture : F1.6

• FOV :

  • 2.8 mm:

    • Horizontal : 107.5°, Vertical : 57.2°, Diagonal : 128.7°

  • 4 mm:

    • Horizontal : 84.4°, Vertical : 44.3°, Diagonal : 100.6°

  • 6 mm:

    • Horizontal : 55.1°, Vertical : 30.2°, Diagonal : 64°

• Lens Mount : M12

• DORI (Detect , Observe, Recognize, Identify) Distance :

  • 2.8 mm :

    • 52 m (170 ft) x 22 m (71 ft) x 10 m (34 ft) x 5 m (17 ft)

  •  4 mm :

    • 70 m (230 ft) x 29 m (96 ft) x 14 m (46 ft) x 7 m (23 ft)

  •  6 mm :

    • 100 m (327 ft) x 41 m (136 ft) x 20 m (65 ft) x 10 m (33 ft)

• Angle Adjustment (Manual) Range :

  • Pan : 0° to 360°

  • Tilt : 0° to 90°

  • Rotation : 0° to 360°

ILLUMINATOR :

• IR LED :

  • Quantity : 2

  • Range : 30m

  • Wavelength : 850nm

• White LED :

  • Quantity : 2

  • Range : 30m

• Illuminator On/Off Control :

  • Auto/Scheduled/Always on/Always off

VIDEO :

• Max. Resolution : 2304 × 1296

• Main Stream :

  • Frame Rate : 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

  • Resolution :

    • 2304x1296

    • 2048x1280

    • 1920x1080

    • 1280x720

  •  Note : If the image rotation is set to 90° or 270°,
                      the frame rate only supports up to 20fps.

• Sub-Stream :

  • Frame Rate : 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

  • Resolution : 704x576, 640x480, 352x288, 320x240

  • Note : If the image rotation is set to 90° or 270°,
                     the frame rate only supports up to 20fps.

• Bit Rate Control : CBR, VBR

• Video Compression :

  • Main Stream : H.265+/H.265/H.264+/H.264

  • Sub-Stream : H.265/H.264

• H.264 Type : High Profile

• H.264+ : Main Stream Supported

• H.265 Type : Main Profile

• H.265+ : Main Stream Supported

• Video Bit Rate   :

  • Main Stream : 256 Kbps to 4 Mbps

  • Sub-Stream : 64 Kbps to 512 Kbps

Image :

• Image Settings :

  • Mirror

  • Brightness

  • Contrast

  • Saturation

  • Sharpness

  • Exposure

  • WDR

  • White Balance

  • Prevent Overexposure to Infrared Light

  • HLC Adjustable by Client Software

  • Rotation(90°/270°)

• Image Enhancement : BLC/3D DNR/HLC/SmartIR

• Wide Dynamic Range : DWDR

• SNR : ≥ 52 dB

• Image Parameters Switch : Yes

• Privacy Mask : Up to 4 Masks

• ROI : 1 Region

• OSD Setting : Yes

AUDIO :

• Audio Communication : N/A

• Audio Input : Yes

• Audio Output : N/A

• Audio Compression : Yes

• Audio Sampling Rate : 8KHz

• Environment Noise Filtering : Yes

• Audio Bit Rate : 64 Kbps(G.711 alaw)

NETWORK :

• Protocol :

  • TCP/IP

  • UDP

  • ICMP

  • HTTP

  • HTTPS

  • DHCP, DNS, RTSP

  • NTP

  • UPnP

  • SSL/TLS

  • FTP/SFTP

  • RTP

  • IPv4

  • IPv6

  • ARP

• ONVIF : Yes

• API : Open Network Video Interface (Profile S)

• Simultaneous Live View : 3 Main Streams & 3 Sub-Streams

• Client : VIGI App, VIGI Security Manager, Web UI

• Web Browser :

  • Google Chrome® 57 and above

  • Firefox® 52 and above

  • Safari® 11 and above

  • Microsoft® Edge 91 and above

• Cloud : Yes

• Security :

  • Password Protection

  • HTTPS Encryption

  • IP Address Filter

  • Digest Authentication

ALARM AND EVENT MANAGEMENT :

• Smart Event :

  • Intrusion Detection

  • Line-Crossing Detection

  • Region Entering Detection

  • Region Exiting Detection

  • Object Abandoned Detection

  • Object Removal Detection

  • Abnormal Sound Detection

  • People Detection

  • Vehicle Detection

• Basic Event :

  • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)

  • Video Tampering Detection

  • Exception ( Illegal Login)

• Alarm Linkage :

  • White Light Flashing

  • Message Push

• Linkage Method : N/A

• Output Notification : Message Push

INTERFACES :

• Network Interface :

  • 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE

• Alarm : N/A

• Reset Button :    N/A

• Power : DC Power Port

• On-board Storage : N/A

• Built-in Microphone : Yes

  • Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera

• Built-in Speaker : N/A

• Audio : N/A

GENERAL :

• Operating Temperature : -30–60 °C

• Storage Temperature : -40–60 °C

• Operating Humidity : 95% or Less (Non-Condensing)

• Storage Humidity  : 95% or Less (Non-Condensing)

• Material : Plastic

• Net Weight : 0.32 Kg

• Gross Weight : 0.48 Kg

• Power Supply :

  • 12V DC ± 5%, Max. 5.5 W, 5.5mm Coaxial Power Plug

  • PoE : 802.3af/at, class 0, Max. 6 W

• Protection : IP67 Waterproof

• Product Dimensions (L x W x H) :

  • 78.5 × 188.0 × 71.5 mm (3.09 × 7.40 × 2.81 in)

In the Box :

• VIGI Network Camera

• Quick Start Guide

• Waterproof Cable Attachments

• Mounting Accessories

Certifications : CE, NTRA, VCCI, BSMI

SKU :

2.8 mm : 4895252501773

4 mm : 4897098689912

6 mm : 4895252501797
