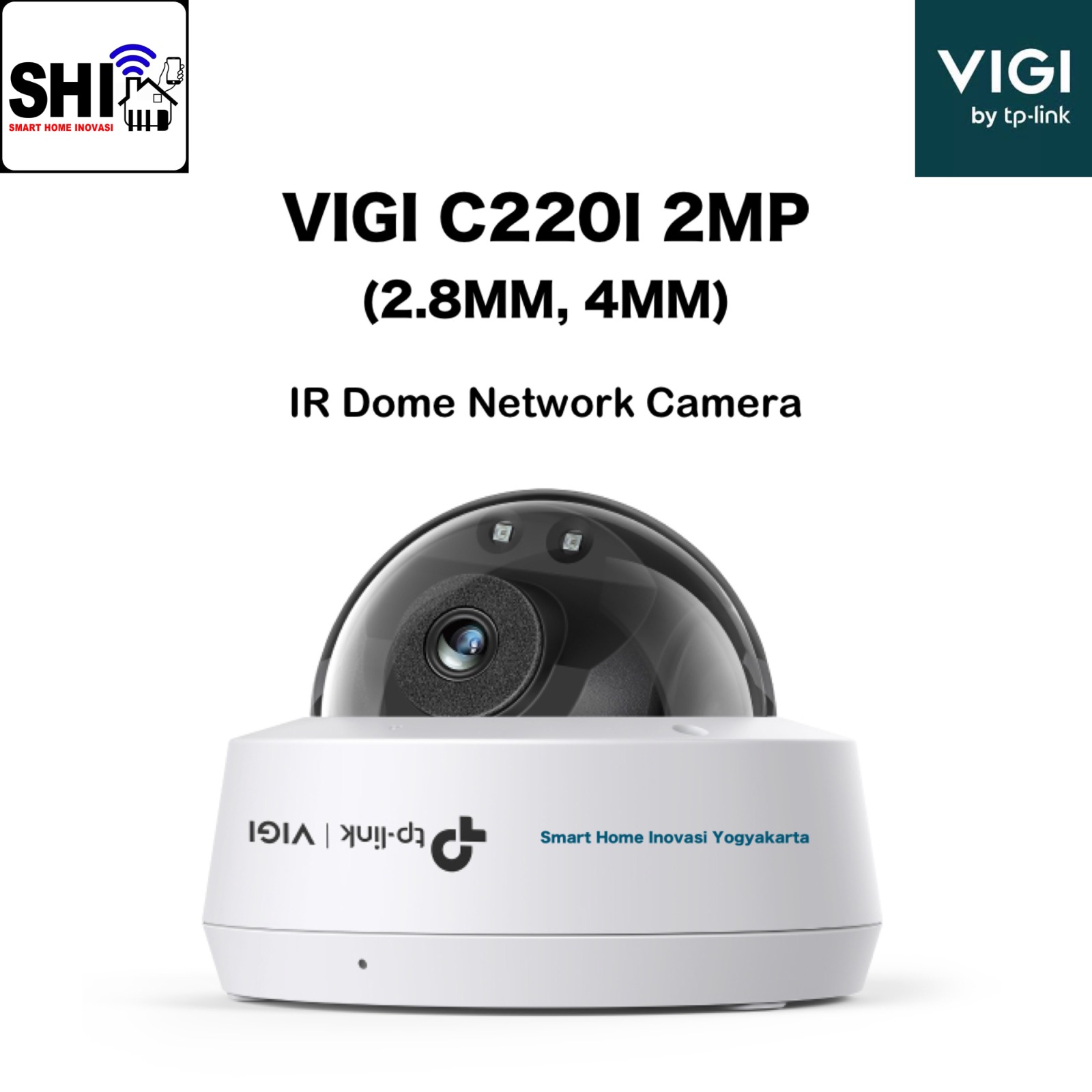

tp-link VIGI C220I 2MP (2.8MM, 4MM) IR Dome Network Camera

tp-link VIGI C220I 2MP (2.8MM, 4MM) IR Dome Network Camera

CAMERA :

• Image Sensor : 1/3” Progressive Scan CMOS

• Shutter Speed : 1/3 to 1/10000 s

• Slow Shutter : Yes

• Minimum Illumination : Color: 0.01 Lux; 0 Lux with IR

• Day/Night Mechanism : IR Cut Filter

• Day/Night Switch : Unified/ Scheduled/ Auto

LENS :

• Type : Fixed Focal Lens

• Focal Length : 2.8 mm/4 mm

• Aperture :

  • 2.8 mm: F2.2

  • 4 mm: F2.0

• FOV :

  • 2.8 mm :

    • Horizontal : 88.2°, Vertical : 48.7°, Diagonal : 106.5°

  • 4 mm :

    • Horizontal : 74.6°, Vertical : 41.3°, Diagonal : 88.1°

• Lens Mount : M12

• DORI Distance :

  • 2.8 mm :

    • 45 m (149 ft) x 19 m (62 ft) x 9 m (30 ft) x 5 m (15 ft)

  •  4 mm :

    • 60 m (198 ft) x 25 m (83 ft) x 12 m (40 ft) x 6 m (20 ft)

• Angle Adjustment (Manual) Range :

  • Pan : 0° to 355°

  • Tilt : 0° to 75°

ILLUMINATOR :

• IR LED

  • Quantity : 2

  • Range : 30m

  • Wavelength : 850nm

• White LED : N/A

• Illuminator On/Off Control :

  • Auto/Scheduled/Always on/Always off

VIDEO :

• Max. Resolution : 1920 × 1080

• Main Stream :

  • Frame Rate：

    • 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

    • 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

  •  Resolution:

    • 1920x1080, 1280x960, 1280x720

  •  Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

• Sub-Stream :

  • Frame Rate：

    • 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

    • 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

  • Resolution:

    • 704x576, 640x480, 352x288, 320x240

  • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

• Bit Rate Control : CBR, VBR

• Video Compression :

  • Main Stream : H.265+/H.265/H.264+/H.264

  • Sub-Stream : H.265/H.264

• H.264 Type : High Profile

• H.264+ : Main Stream Supported

• H.265 Type : Main Profile

• H.265+ : Main Stream Supported

• Video Bit Rate :

  • Main Stream: 256 Kbps to 4 Mbps

  • Sub-Stream: 64 Kbps to 512 Kbps

Image :

• Image Settings :

  • Mirror

  • Brightness

  • Contrast

  • Saturation

  • Sharpness

  • Exposure

  • WDR

  • White Balance

  • Prevent Overexposure to Infrared Light

  • HLC Adjustable by Client Software

  • Rotation(90°/270°)

• Image Enhancement : BLC/3D DNR/HLC/SmartIR

• Wide Dynamic Range : DWDR

• SNR : ≥ 52 dB

• Image Parameters Switch : Yes

• Privacy Mask : Up to 4 Masks

• ROI : 1 Region

• OSD Setting : Yes

AUDIO :

• Audio Communication : N/A

• Audio Input : Yes

• Audio Output : N/A

• Audio Compression : Yes

• Audio Sampling Rate : 8KHz

• Environment Noise Filtering : Yes

• Audio Bit Rate : 64 Kbps(G.711 alaw)

NETWORK :

• Protocol :

  • TCP/IP

  • UDP

  • ICMP

  • HTTP

  • HTTPS

  • DHCP, DNS, RTSP

  • NTP

  • UPnP

  • SSL/TLS

  • FTP/SFTP

  • RTP

  • IPv4

  • ARP

• ONVIF : Yes

• API : Open Network Video Interface (Profile S)

• Simultaneous Live View : 3 Main Streams & 3 Sub-Streams

• Client : VIGI App, VIGI Security Manager, Web UI

• Web Browser :

  • Google Chrome® 57 and above

  • Firefox® 52 and above

  • Safari® 11 and above

  • Microsoft® Edge 91 and above

• Cloud : Yes

• Security :

  • Password Protection

  • HTTPS Encryption

  • IP Address Filter

  • Digest Authentication

ALARM AND EVENT MANAGEMENT :

• Smart Event

  • Intrusion Detection

  • Line-Crossing Detection

  • Region Entering Detection

  • Region Exiting Detection

  • Object Abandoned/Removal Detection

  • Abnormal Sound Detection

  • People Detection

  • Vehicle Detection

• Basic Event :

  • Motion Detection

    • (Enhanced with Human & Vehicle Classification for more accurate alerts)

  • Video Tampering Detection

  • Exception ( Illegal Login)

• Alarm Linkage : Message Push

• Linkage Method : N/A

• Output Notification : Message Push

INTERFACES :

• Network Interface :

  • 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE

• Alarm : N/A

• Reset Button : N/A

• Power : N/A

• On-board Storage : N/A

• Built-in Microphone : Yes;

  • Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera

• Built-in Speaker : N/A

• Audio : N/A

GENERAL :

• Operating Temperature : -30–60 °C

• Storage Temperature : -40–60 °C

• Operating Humidity : 95% or Less (Non-Condensing)

• Storage Humidity : 95% or Less (Non-Condensing)

• Material : Plastic

• Net Weight : 0.27 Kg

• Gross Weight : 0.45 Kg

• Power Supply : PoE: 802.3af/at, class 0, Max. 5.5 W

• Protection : IP67 Waterproof, IK10 Vandal Proof

• Product Dimensions (L x W x H)

  • 115× 115× 86 mm (4.53× 4.53× 3.39 in)

In The Box :

• VIGI Network Camera

• Quick Start Guide

• Waterproof Cable Attachments

• Mounting Accessories

Certifications : CE, NTRA, VCCI, BSMI
