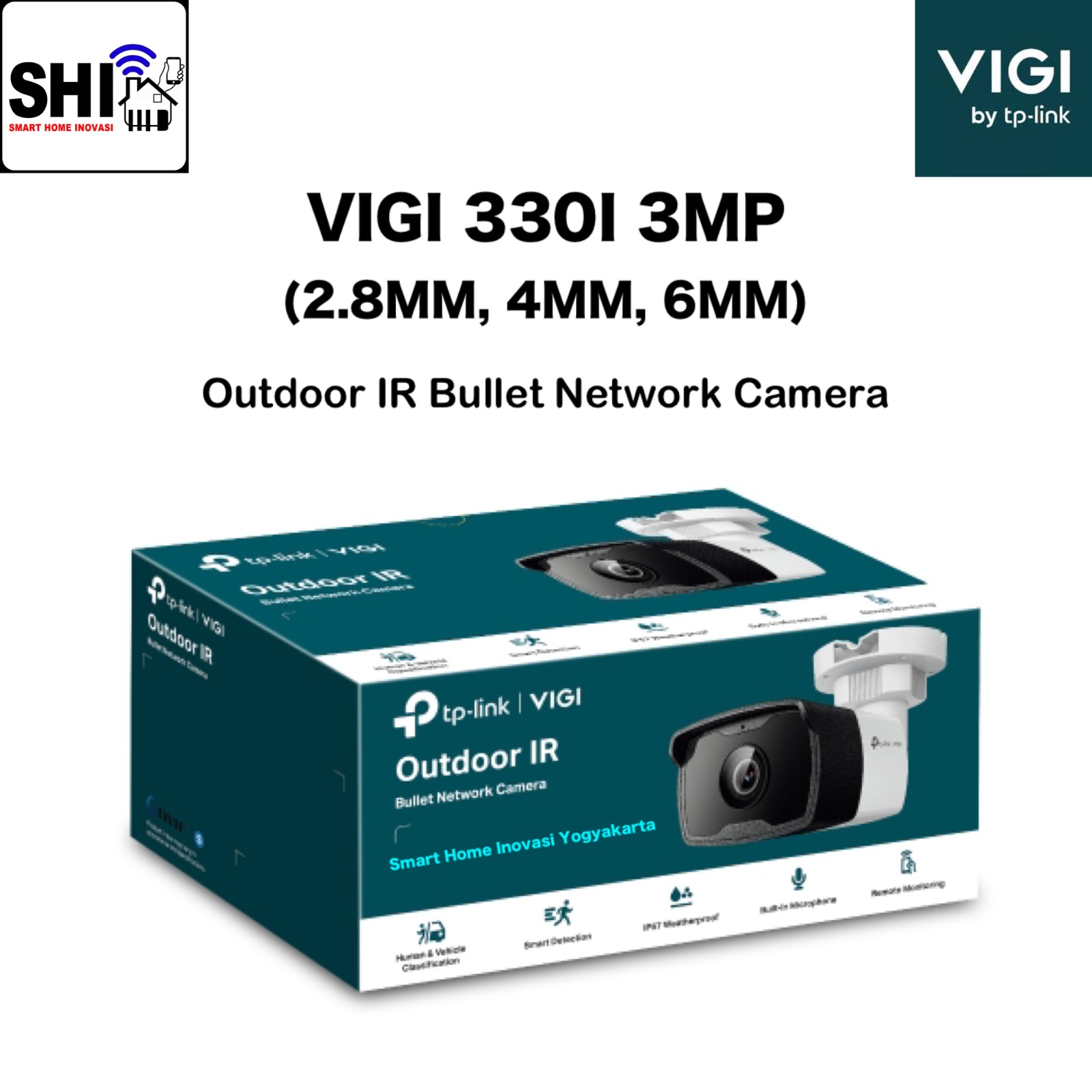

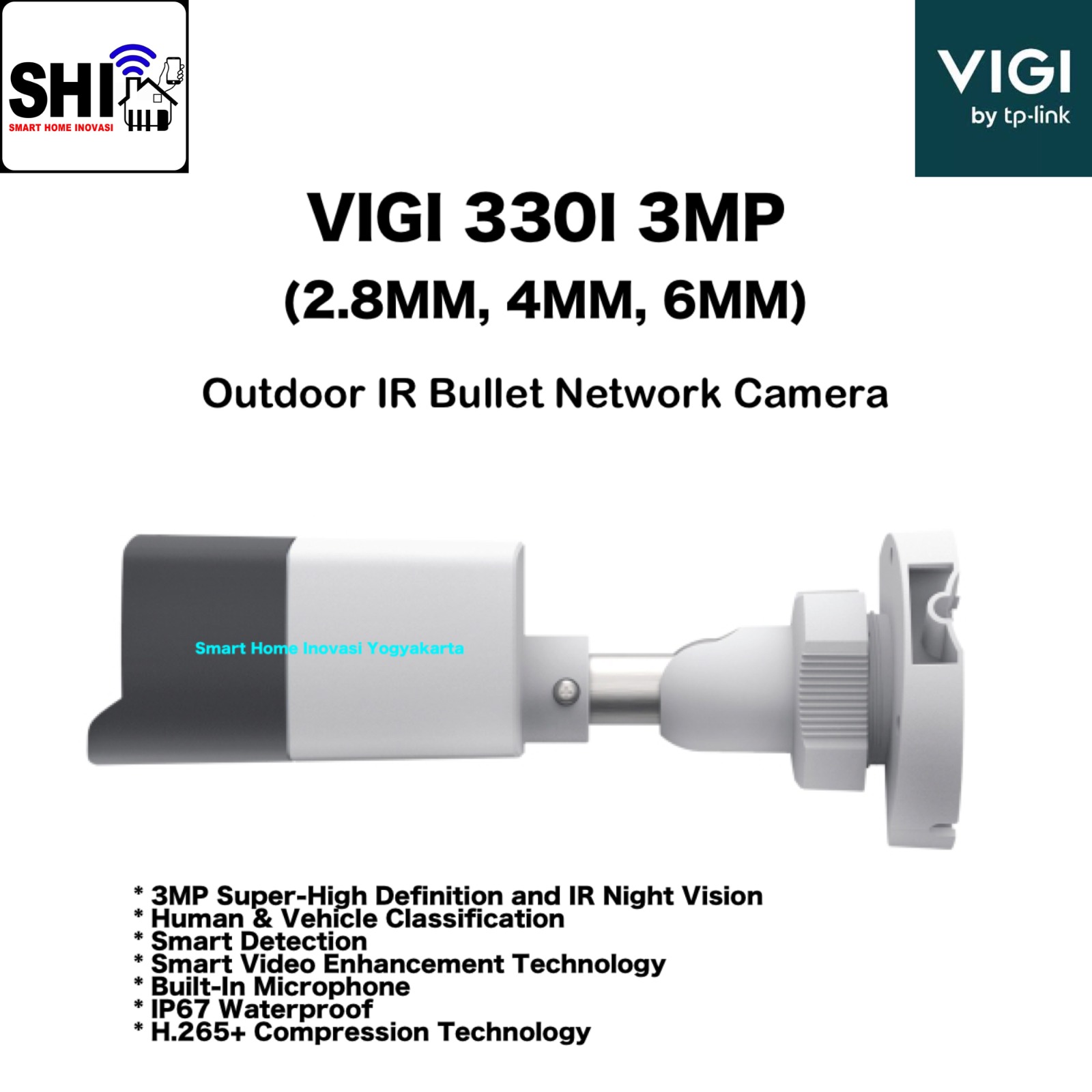

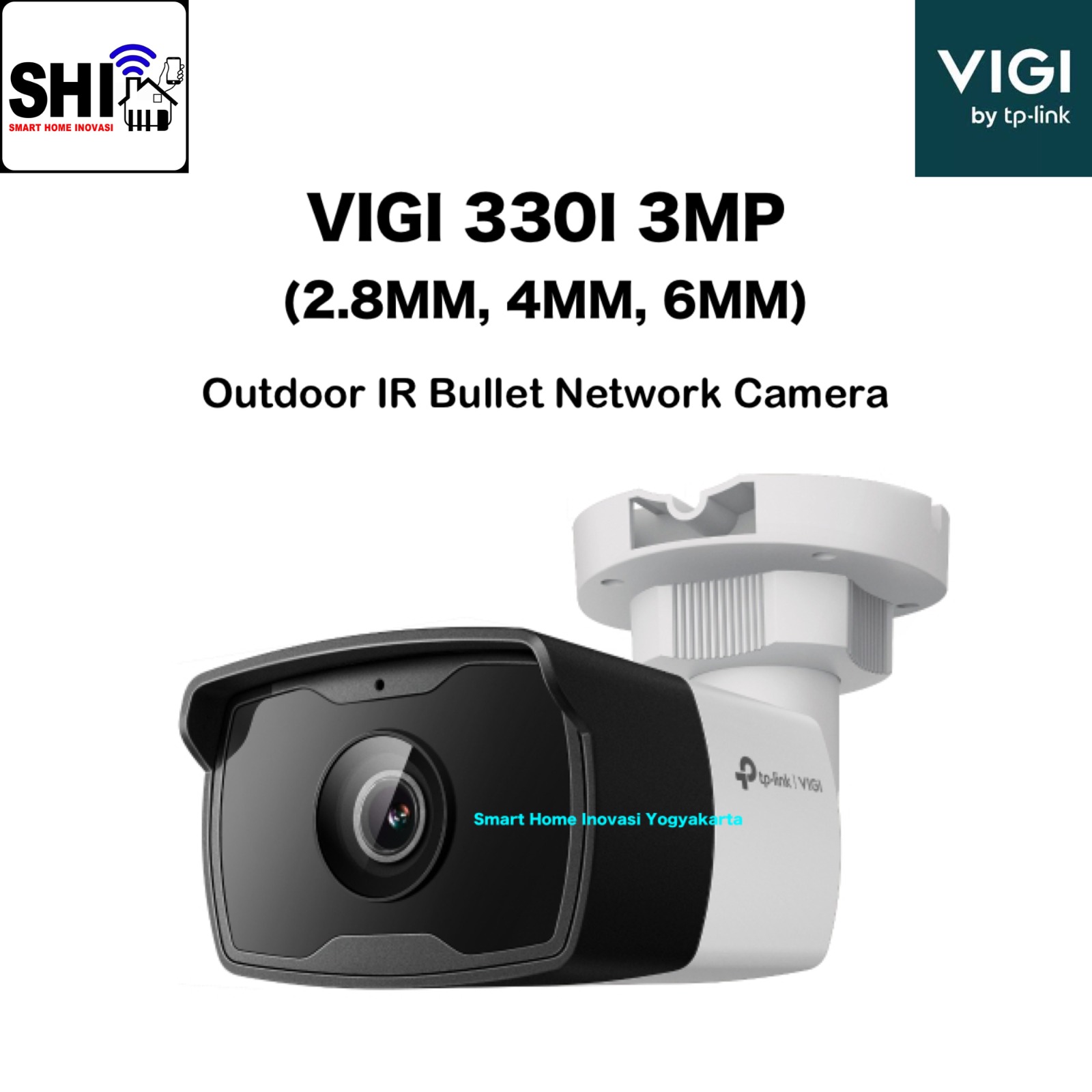

tp-link VIGI 330I (2.8MM,4MM,6MM), Outdoor IR Bullet Network Camera

tp-link VIGI 330I (2.8MM,4MM,6MM), Outdoor IR Bullet Network Camera

CAMERA :

• Image Sensor : 1/2.8” Progressive Scan CMOS

• Shutter Speed : 1/3 to 1/10000 s

• Slow Shutter : Yes

• Minimum Illumination :

  • Color : 0.01 Lux;

  • 0 Lux with IR light

• Day/Night Mechanism : IR Cut Filter

• Day/Night Switch : Unified/ Scheduled/ Auto

LENS :

• Type : Fixed Focal Lens

• Focal Length : 2.8 mm/4 mm/6 mm

• Aperture :

  • 2.8mm : F2.2

  • 4mm : F2.0

  • 6mm : F2.0

• FOV :

  • 2.8 mm :

    • Horizontal : 97.8°, Vertical : 52.9°, Diagonal : 117.9°

  • 4 mm :

    • Horizontal : 82.8°, Vertical : 44.5°, Diagonal : 98.1°

  • 6 mm :

    • Horizontal : 54.5°, Vertical : 30.0°, Diagonal : 63.2°

• Lens Mount : M12

• DORI (Detect, Observe, Recognize, Identify) Distance :

  • 2.8 mm :

    • 49 m (161 ft) x 20 m (67 ft) x 10 m (32 ft) x 5 m (16 ft)

  • 4 mm :

    • 65 m (214 ft) x 27 m (89 ft) x 13 m (43 ft) x 7 m (21 ft)

  • 6 mm :

    • 98 m (321 ft) x 41 m (134 ft) x 20 m (64 ft) x 10 m (32 ft)

• Angle Adjustment (Manual) Range :

  • Pan : 0° to 360°

  • Tilt : 0° to 90°

  • Rotation : 0° to 360°

ILLUMINATOR :

• IR LED :

  • Quantity : 2

  • Range : 50m

  • Wavelength : 850nm

• White LED : N/A

• Illuminator On/Off Control :

  • Auto

  • Scheduled

  • Always on

  • Always off

VIDEO :

• Max. Resolution : 2304 × 1296

• Main Stream :

  • Frame Rate : 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

  • Resolution :

    • 2304x1296

    • 2048x1280

    • 1920x1080

    • 1280x720

  •  Note : If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

• Sub-Stream :

  • Frame Rate : 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

  • Resolution : 704x576, 640x480, 352x288, 320x240

  • Note : If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

• Bit Rate Control : CBR, VBR

• Video Compression :

  • Main Stream : H.265+/H.265/H.264+/H.264

  • Sub-Stream : H.265/H.264

• H.264 Type : High Profile

• H.264+ : Main Stream Supported

• H.265 Type : Main Profile

• H.265+ : Main Stream Supported

• Video Bit Rate :

  • Main Stream : 256 Kbps to 4 Mbps

  • Sub-Stream : 64 Kbps to 512 Kbps

Image :

• Image Settings :

  • Mirror

  • Brightness

  • Contrast

  • Saturation

  • Sharpness

  • Exposure

  • WDR

  • White Balance

  • Prevent Overexposure to Infrared Light

  • HLC Adjustable by Client Software

  • Rotation(90°/270°)

• Image Enhancement : BLC/3D DNR/HLC/SmartIR

• Wide Dynamic Range : DWDR

• SNR : ≥ 52 dB

• Image Parameters Switch : Yes

• Privacy Mask : Up to 4 Masks

• ROI : 1 Region

• OSD Setting : Yes

AUDIO :

• Audio Communication : N/A

• Audio Input : Yes (Built-in Microphone)

• Audio Output : N/A

• Audio Compression : Yes

• Audio Sampling Rate : 8KHz

• Environment Noise Filtering : Yes

• Audio Bit Rate : 64 Kbps (G.711 alaw)

NETWORK :

• Protocol :

  • TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP

  • NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP

  • IPv4, IPv6, ARP, SMTP, SNMP

• ONVIF : Yes

• API : Open Network Video Interface (Profile S/T)

• Simultaneous Live View :

  • 3 Main Streams & 3 Sub-Streams

• Client :

  • VIGI App

  • Web UI

  • VIGI VMS

  • VIGI Cloud VMS

  • VIGI Config Tool

  • VIGI PC Client

• Web Browser :

  • Google Chrome® 57 and above

  • Firefox® 52 and above

  • Safari® 11 and above

  • Microsoft® Edge 91 and above

• Cloud : Yes

• Security :

  • Password Protection

  • HTTPS Encryption

  • IP Address Filter

  • Digest Authentication

ALARM AND EVENT MANAGEMENT :

• Smart Event :

  • Intrusion Detection

  • Line-Crossing Detection

  • Region Entering Detection

  • Region Exiting Detection

  • Object Abandoned/Removal Detection

  • Abnormal Sound Detection

  • People Detection

  • Vehicle Detection

• Basic Event :

  • Motion Detection

    • (Enhanced with Human & Vehicle Classification for more accurate alerts)

  • Video Tampering Detection

  • Exception ( Illegal Login)

• Alarm Linkage    : Message Push

INTERFACES :

• Network Interface : 1,

  • RJ45 10/100M Self-Adaptive Ethernet Port,

PoE :

• Alarm : N/A

• Reset Button : N/A

• Power : DC Power Port

• On-board Storage : N/A

• Built-in Microphone : Yes

• Built-in Speaker : N/A

• Audio : N/A

GENERAL :

• Operating Temperature : -30 °C to 60 °C (-22 °F to 140 °F)

• Storage Temperature : -40 °C to 60 °C (-40 °F to 140 °F)

• Operating Humidity : 95% or Less (Non-Condensing)

• Storage Humidity : 95% or Less (Non-Condensing)

• Material : Plastic

• Net Weight : 0.21 Kg

• Gross Weight : 0.35 Kg

• Power Supply :

  • 12V DC ± 5%, Max. 5 W, 5.5mm Coaxial Power Plug

  • PoE : 802.3af/at, class 0, Max. 5.5 W

• Protection : IP67 Waterproof

• Product Dimensions (L x W x H) :

  • 3.1 × 7.4 × 2.9 in (78.50 × 188.03 × 71.55 mm)

In the Box :

• VIGI Network Camera

• Quick Start Guide

• Waterproof Cable Attachments

• Mounting Accessories

Certifications : CE, NTRA, VCCI, BSMI

SKU :

2.8 mm : 4897098688960

4 mm : 4897098688977

6 mm : 4897098688984
