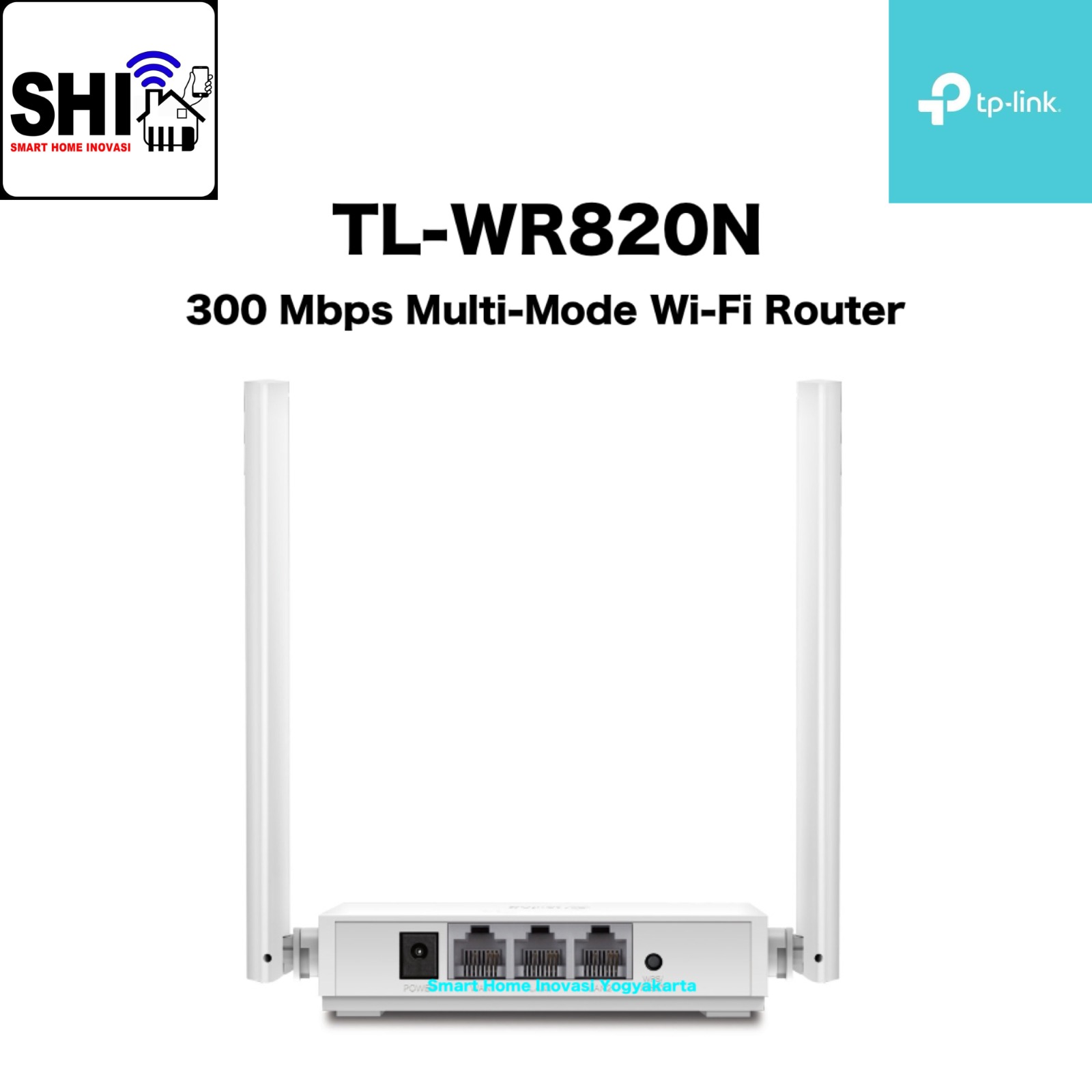

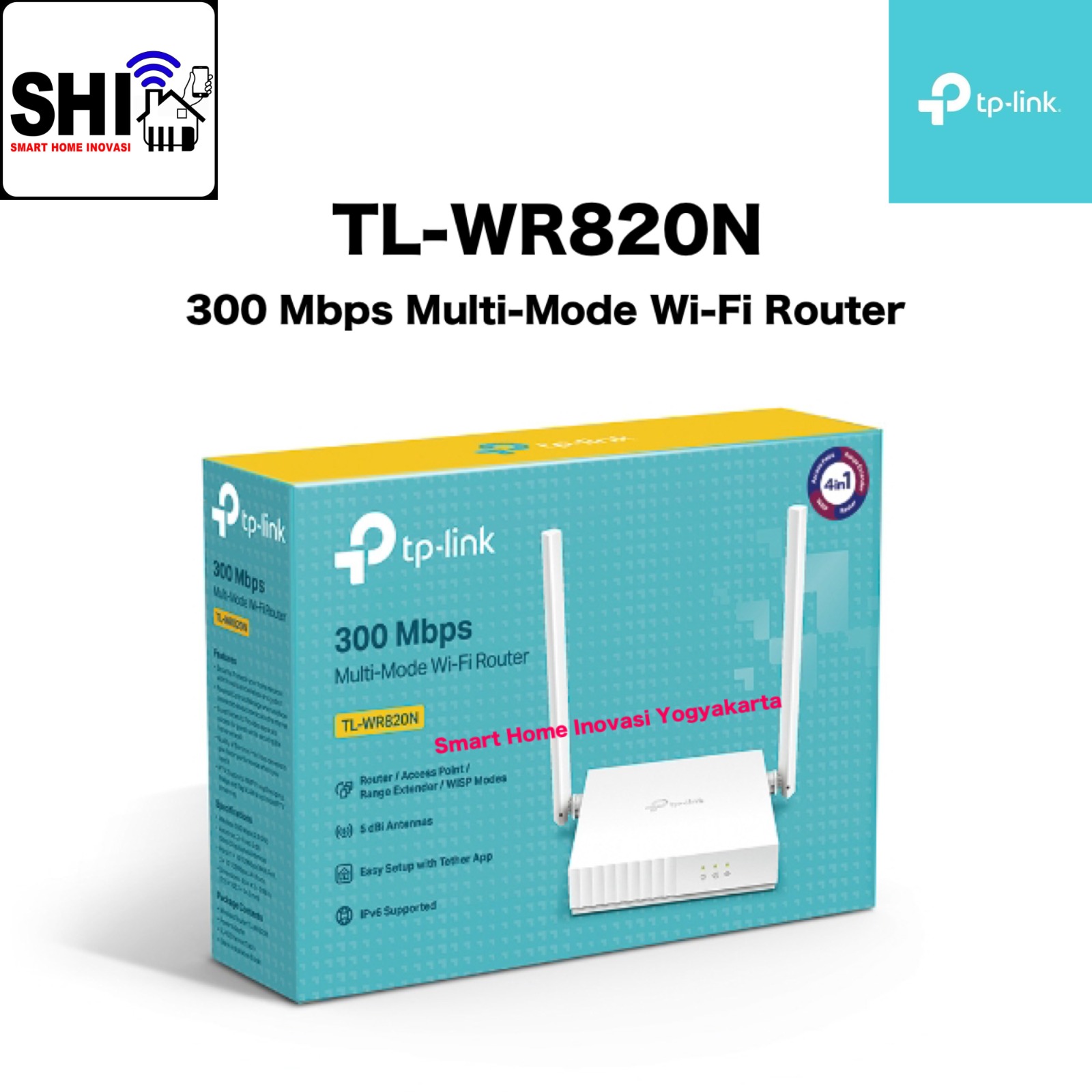

tp-link TL-WR820N, 300 Mbps Multi-Mode Wi-Fi Router
Rp1.00
tp-link TL-WR820N, 300 Mbps Multi-Mode Wi-Fi Router
Overview :
Kecepatan Wi-Fi 300 Mbps
Sangat ideal untuk aktivitas sehari-hari seperti browsing, mengirim email, dan streaming video.
Dukungan IPTV dengan IGMP Proxy/Snooping, Bridge, dan Tag VLAN
Mengoptimalkan streaming IPTV.
Jaringan Tamu
Menyediakan akses terpisah untuk tamu sambil menjaga keamanan jaringan utama.
Kontrol Orang Tua
Mengatur kapan dan bagaimana perangkat yang terhubung dapat mengakses internet.
Firewall SPI dan enkripsi nirkabel
Melindungi jaringan rumah Anda.
Kompatibel dengan IPv6 (versi terbaru Protokol Internet).
SPESIFIKASI :
WIRELESS :
Standards and Protocols :
Wi-Fi 4
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds :
N300
2.4 GHz: 300 Mbps (802.11n)
WiFi Range :
2 Bedroom Houses
2× Fixed Antennas
WiFi Capacity : Legacy
Working Modes :
Router Mode
Access Point Mode
Range Extender Mode
WISP Mode
SECURITY :
Network Security :
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network : 1× 2.4 GHz Guest Network
WiFi Encryption :
WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)
HARDWARE :
Processor : Single-Core CPU
Ethernet Ports :
1× 10/100 Mbps WAN Port
2× 10/100 Mbps LAN Ports
Buttons : Reset Button
Power : 5 V ⎓ 0.6 A
SOFTWARE :
Protocols :
IPv4
IPv6
Parental Controls :
URL Filtering
Time Controls
WAN Types :
Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service : QoS by Device
NAT Forwarding :
Port Forwarding
Port Triggering
DMZ
UPnP
IPTV :
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP :
Address Reservation
DHCP Client List
Server
DDNS :
NO-IP
DynDNS
Management Features :
Tether App
Webpage
OTHER :
Network Services Enabled by Default :
Web Server :
Manage and configure device through web (HTTP/HTTPS)
Port : 80/443 Protocol : TCP
DHCP Server :
IP address assignment (DHCP)
Port : 67 Protocol : UDP
App management
Manage and configure device through app
Port : 20002 Protocol : UDP
System Requirements :
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+,
Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider
(for internet access)
Environment :
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Dimensions (W×D×H) :
4.5 × 4.2 × 1.0 in (115 × 106.7 × 24.3 mm)
TEST DATA
WiFi Transmission Power :
CE : < 20dBm(2.4GHz)
FCC : < 30dBm
WiFi Reception Sensitivity :
270M : -70dBm@10% PER
130M : -74dBm@10% PER
108M : -74dBm@10% PER
54M : -77dBm@10% PER
11M : -87dBm@8% PER
6M : -90dBm@10% PER
1M : -98dBm@8% PER
In the Box :
Wi-Fi Router TL-WR820N
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
Certifications : FCC, CE, RoHS
