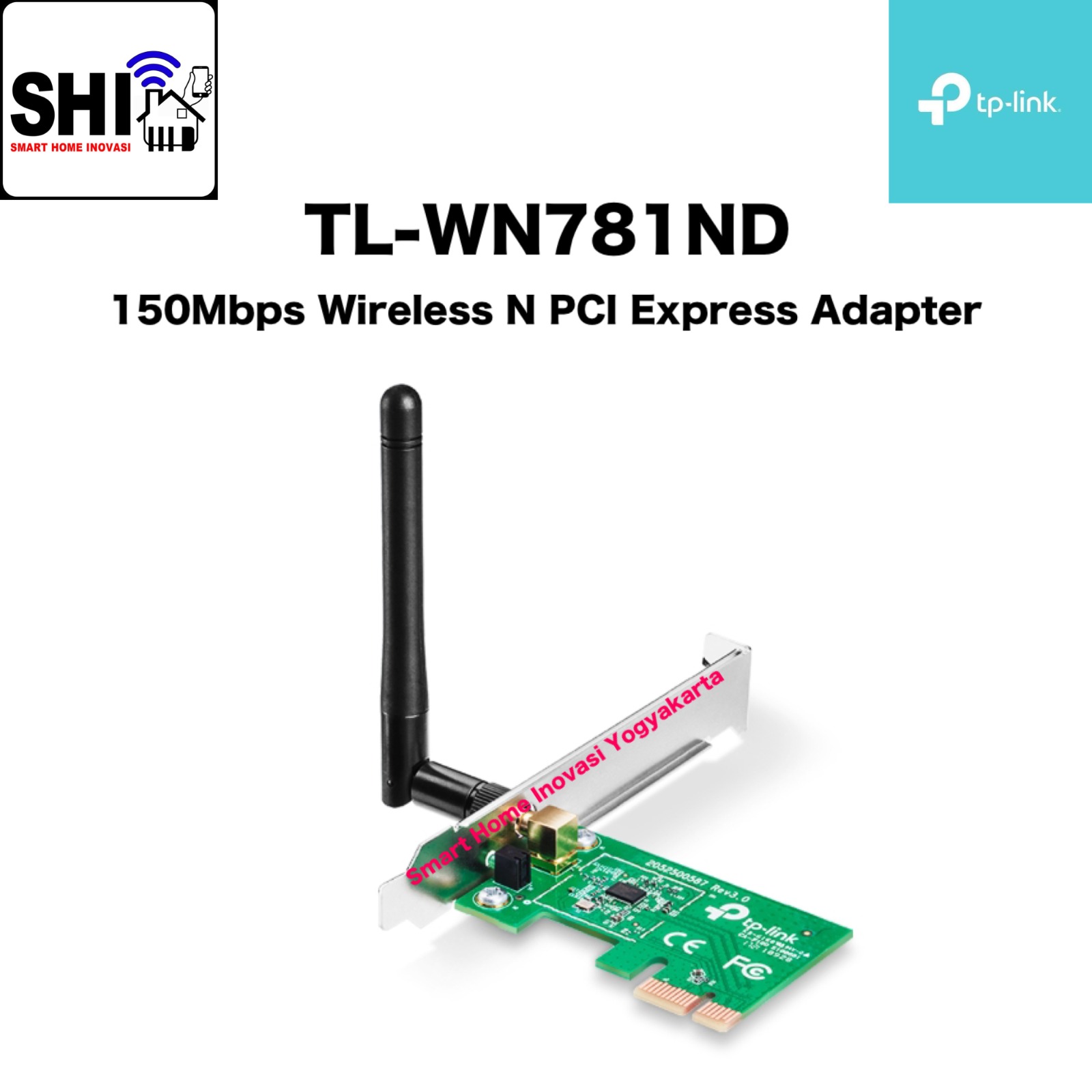

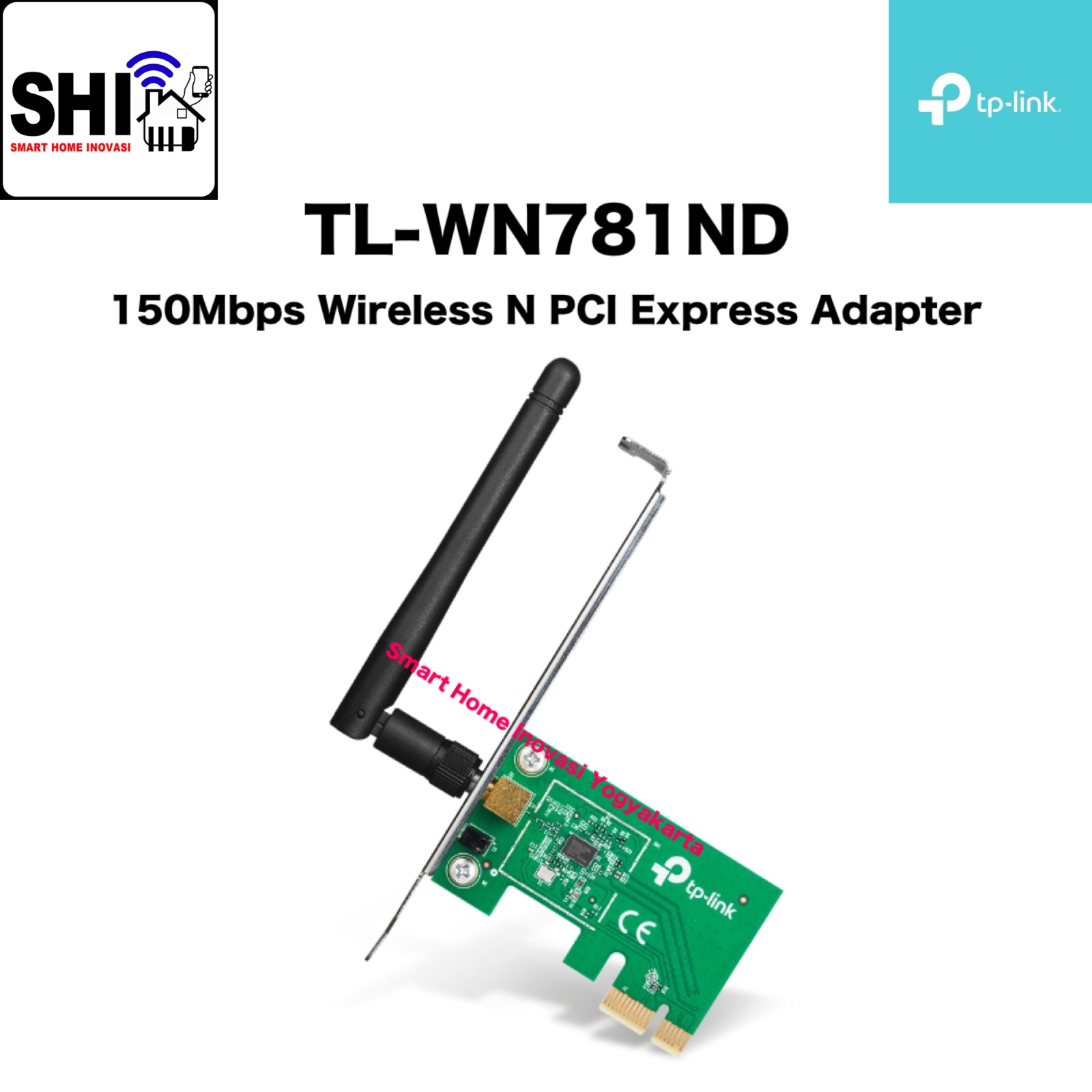

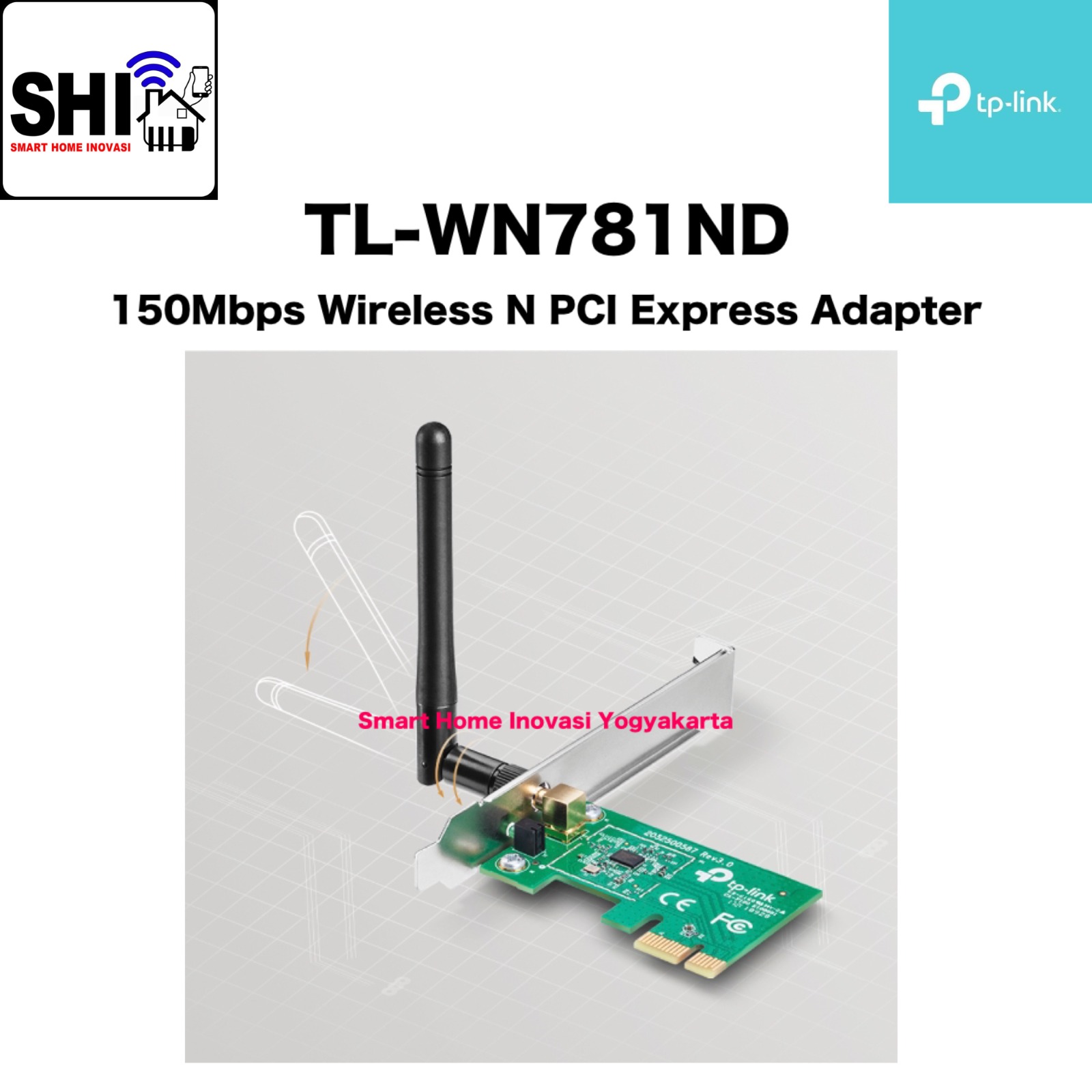

tp-link TL-WN781ND, 150Mbps Wireless N PCI Express Adapter

tp-link TL-WN781ND, 150Mbps Wireless N PCI Express Adapter

Overviews :

• Up to 150Mbps wireless transmission rate

• Provides PCI Express interface

• Advanced secure connection with WPA/WPA2 encryption

• Bundled utility enables easy management

HARDWARE FEATURES :

• Interface : PCI Express

• Dimensions ( W x D x H ) :

  • 4.8 x 3.1 x 0.8in. (120.8 x 78.5 x 21.5mm)

• Antenna : Detachable Omni Directional (RP-SMA)

• Antenna Gain : 2dBi

WIRELESS FEATURES :

• Wireless Standards :

  • IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

• Frequency : 2.400-2.4835GHz

• Signal Rate :

  • 11n : Up to 150Mbps(dynamic)

  • 11g : Up to 54Mbps(dynamic)

  • 11b: Up to 11Mbps(dynamic)

• Reception Sensitivity :

  • 130M : -68dBm@10% PER

  • 108M : -68dBm@10% PER

  • 54M : -68dBm@10% PER

  • 11M : -85dBm@8% PER

  • 6M : -88dBm@10% PER

  • 1M : -90dBm@8% PER

• Wireless Modes :

  • Ad-Hoc / Infrastructure mode

• Wireless Security :

  • Support 64/128 bit WEP, WPA-PSK/WPA2-PSK

• Modulation Technology :

  • DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM

• Transmission Power : <20dBm(EIRP)

OTHERS :

• System Requirements :

  • Windows XP/Vista/7/8/8.1/10(32/64bits)

• Environment :

  • Operating Temperature : 0℃~40℃ (32℉~104℉)

  • Storage Temperature : -40℃~70℃ (-40℉~158℉)

  • Operating Humidity : 10%~90% non-condensing

  • Storage Humidity : 5%~90% non-condensing

In the Box :

• Wireless Adapter

• Detachable Omni directional antenna

• Resource CD

• Quick Installation Guide

Certification : CE, FCC, RoHS
