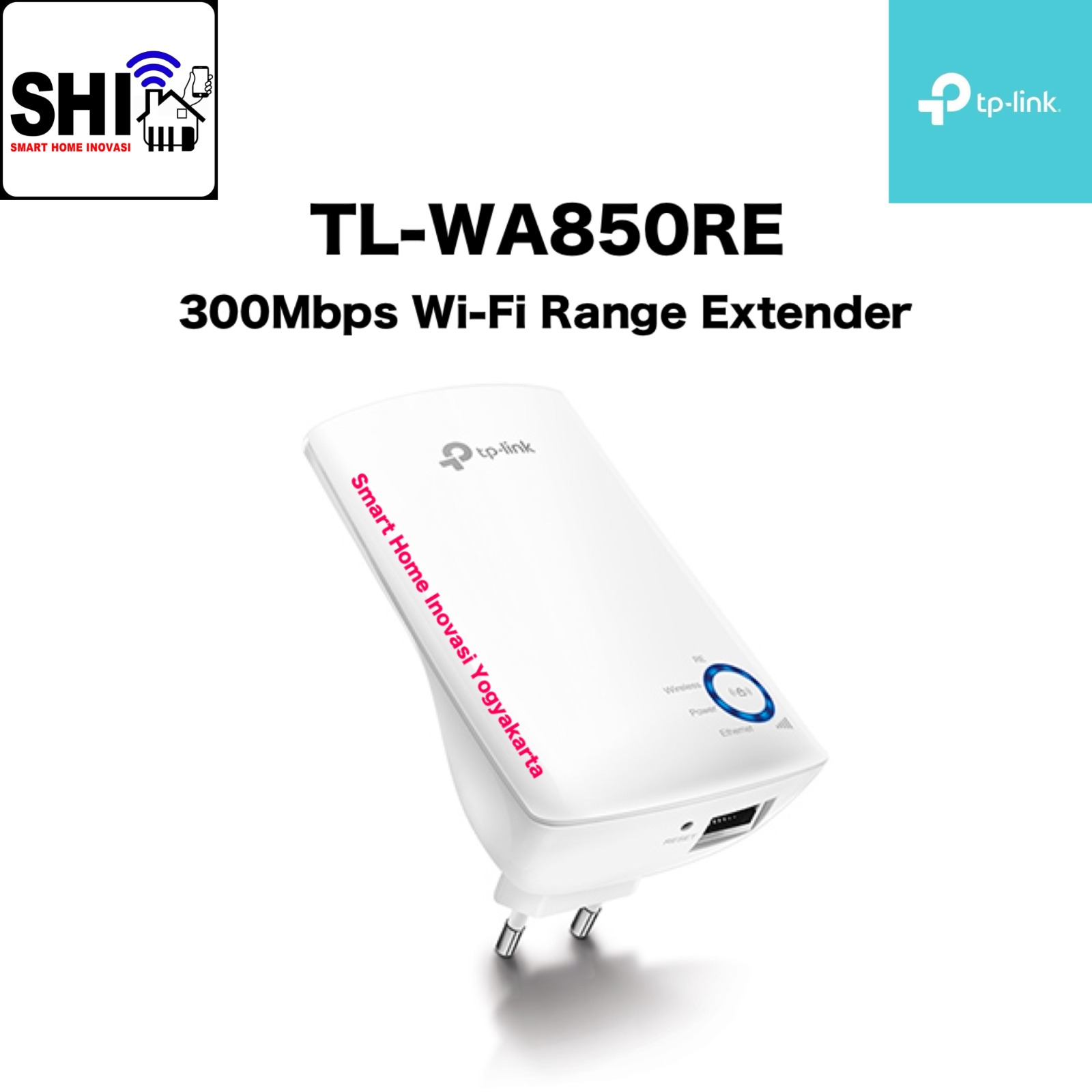

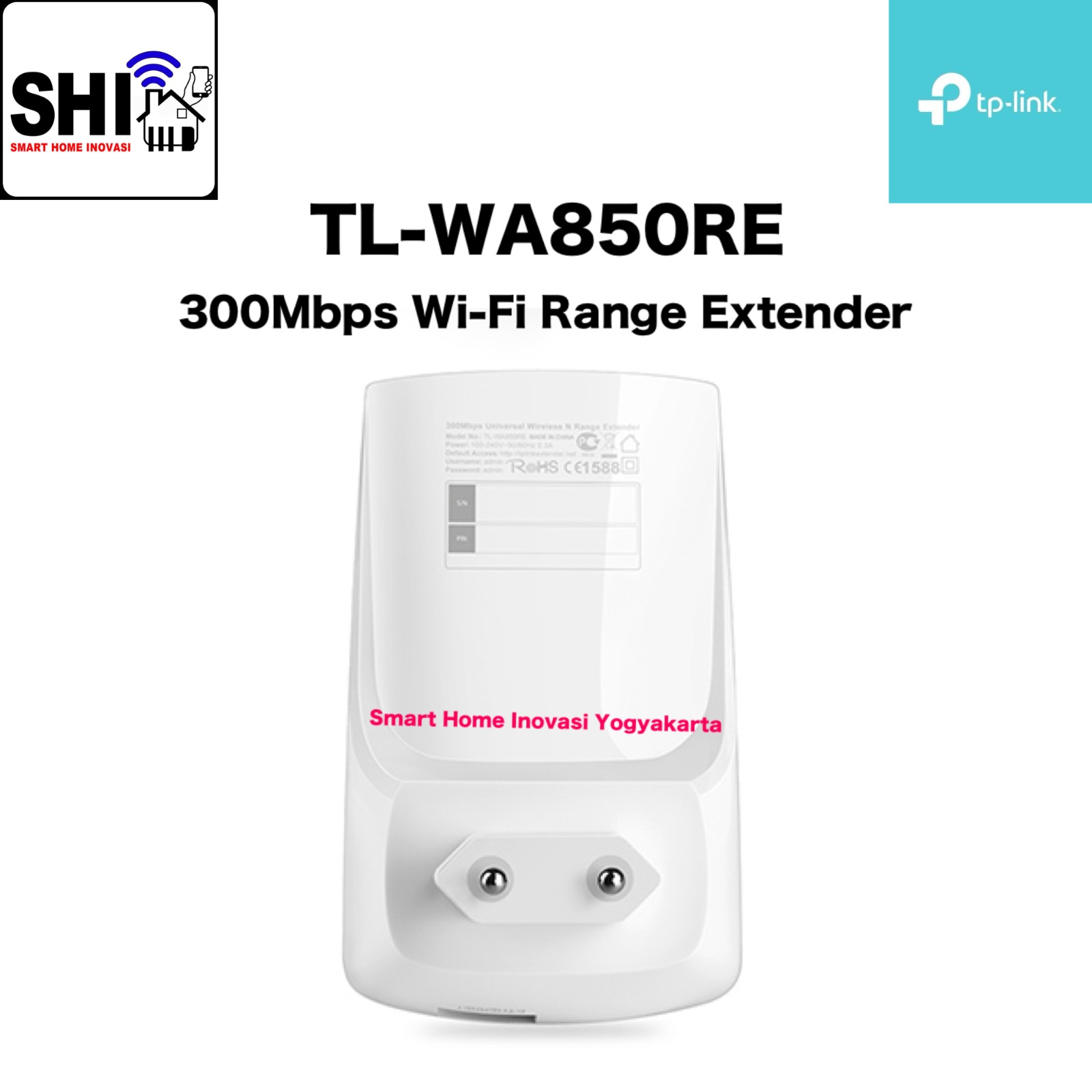

tp-link TL-WA850RE, 300Mbps Wi-Fi Range Extender

tp-link TL-WA850RE, 300Mbps Wi-Fi Range Extender

Overview :

• Mode Range Extender

  • Meningkatkan sinyal nirkabel ke area yang sebelumnya sulit dijangkau atau tidak dapat dijangkau kabel dengan sempurna

• Ukuran yang kecil dan desain

  • Pemasangan di dinding membuatnya mudah dipasang dan dipindahkan secara fleksibel

• Perluas jangkauan WiFi dengan mudah

  • Hanya dengan menekan tombol Range Extender

• Port Ethernet

  • Memungkinkan Extender berfungsi sebagai adaptor nirkabel untuk menghubungkan perangkat berkabel

• Aplikasi Tether

  • Memudahkan akses dan pengelolaan melalui perangkat seluler apa pun

• Fungsi Kontrol LED

  • Mencakup Mode Malam untuk tidur yang lebih tenang

WIRELESS :

• Working Modes : Range Extender/Access Point

HARDWARE FEATURES :

• Plug Type : EU, UK, US

• Interface : 1 x 10/100Mbps Ethernet Port (RJ45)

• Button : RE (Range Extender) Button, Reset Button

• Input Power : 100-240V~50/60Hz

• Max. Power Consumption : About 3W

• Wireless Standards :

  • IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

• Dimensions ( W x D x H ) :

  • 4.3 x 2.6 x 3.0 in. (110.0 x 65.8 x 75.2mm)

• Antenna : 2 x internal

WIRELESS FEATURES :

• Wireless Standards : IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

• Frequency : 2.4~2.4835GHz

• Signal Rate :

  • 11n : Up to 300Mbps (dynamic)

  • 11g : Up to 54Mbps (dynamic)

  • 11b : Up to 11Mbps (dynamic)

• Working Modes : Range Extender/Access Point

• Reception Sensitivity :

  • 270M : -68dBm@10% PER

  • 130M : -68dBm@10% PER

  • 108M : -68dBm@10% PER

  • 54M : -68dBm@10% PER

  • 11M : -85dBm@8% PER

  • 6M : -88dBm@10% PER

  • 1M : -90dBm@8% PER

• Wireless Modes : Range Extender/Access Point

• Wireless Functions          :

  • WMM (Wi-Fi Multimedia)

  • Wireless MAC Address Filtering

  • Wireless Statistic

  • Domain Login Function

• Wireless Security :

  • 64/128/152-bit WEP

  • WPA-PSK / WPA2-PSK

• Transmission Power : < 20 dBm (EIRP)

OTHER :

• Network Services Enabled by Default :

  • Web Server :

    • Manage and configure device through web (HTTP/HTTPS)

      • Port : 80/443   Protocol : TCP

  • DHCP Server :

    • IP address assignment (DHCP)

      • Port : 67   Protocol : UDP

  • App management :

    • Manage and configure device through app

      • Port : 20001   Protocol : TCP

      • Port : 20002   Protocol : UDP

• System Requirements :

  • Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.

• Environment :

  • Operating Temperature : 0°C~40°C (32°F~104°F)

  • Storage Temperature : -40°C~70°C (-40°F~158°F)

  • Operating Humidity : 10%~90% non-condensing

  • Storage Humidity : 5%~90% non-condensing

In the Box :

• 300Mbps Universal Wi-Fi Range Extender TL-WA850RE

• Quick Installation Guide

Certification : CE, RoHS
