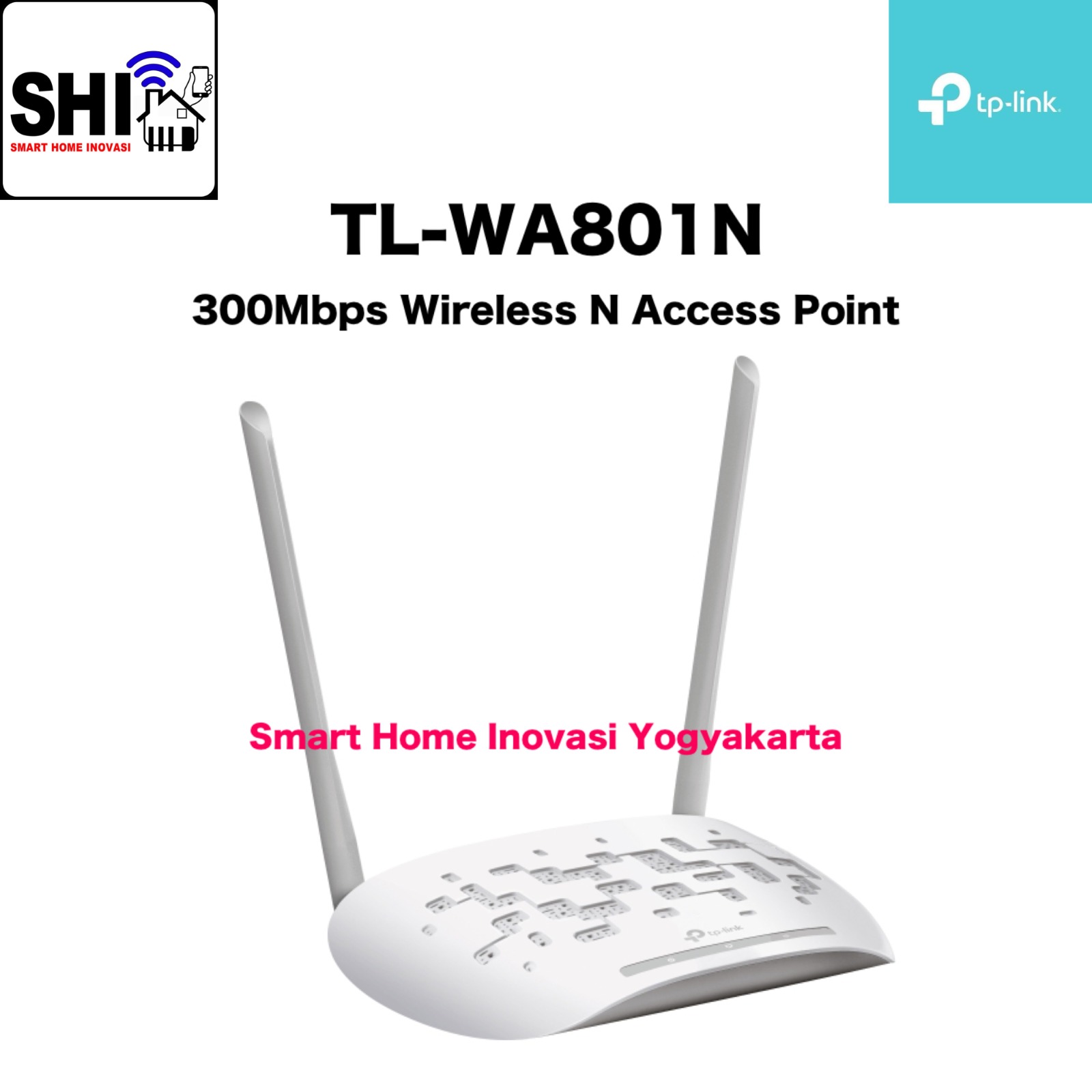

tp-link TL-WA801N, 300Mbps Wireless N Access Point

tp-link TL-WA801N, 300Mbps Wireless N Access Point

Overviews :

• 300 Mbps wireless speed

  • Ideal for smooth HD video, voice streaming, and online gaming

• Supports multiple operation modes:

  • Access Point, Multi-SSID, Client, and Range Extender modes

• Protects your home network with WPA2 encryption

• Makes quick connection with the push of a button

• Up to 30 meters (100 feet) of flexible deployment

  • With included Passive Power over Ethernet Injector

HARDWARE FEATURES :

• Interface             :

  • 1× 10/100 M Ethernet Port(RJ45)

  • Support Passive PoE

• Button :

  • Power On/Off Button

  • WPS Button

  • Reset Button

• External Power Supply : 9VDC / 0.6A

• Wireless Standards :

  • IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

• Dimensions ( W x D x H ) :

  • 7.1 × 5.1 × 1.4 in (181.6 × 129.5 × 36.2 mm)

• Antenna : 2 Fixed Omni-Directional Antennas

WIRELESS FEATURES :

• Frequency : 2.4 GHz

• Signal Rate : 300 Mbps at 2.4 GHz

• Reception Sensitivity :

  • 11g 6Mbps : -90dBm

  • 11g 54Mbps : -77dBm

  • 11n HT20 MC7 : -73dBm

  • 11n HT40 MC7 : -70dBm

• Wireless Modes :

  • AP Mode

  • Multi-SSID Mode

  • Client Mode

  • Range Extender Mode

• Wireless Functions          :

  • Enable/Disable Wireless Radio, WMM, Short GI, AP

  • Isolation, Wireless Statistics, Throughput Monitor

• Wireless Security :

  • WEP, WPA/WPA2, WPA/WPA2-PSK encryptions

• Quality of Service : WMM

• Management Features : SNMP

• Advanced Features :

  • Up to 30 meters Passive PoE is supported

• Transmission Power :

  • CE : <15dBm; FCC : <20dBm

OTHERS :

• System Requirements :

  • Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10

  • MAC OS, NetWare, UNIX or Linux, Internet Explorer 11

  • Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser

  • Cable or DSL Modem

  • Subscription with an Internet Service Provider

    • (for Internet access)

• Environment :

  • Operating Temperature : 0°C~40°C (32°F ~104°F)

  • Storage Temperature : -40°C~70°C (-40°F ~158°F)

  • Operating Humidity : 10%~90% RH

  • Storage Humidity : 5%~90% RH

In the Box :

• Wireless Access Point TL-WA801N

• Power Adapter

• Passive PoE Power Injector

• RJ45 Ethernet Cable

• Quick Installation Guide

Certification : CE, FCC, RoHS
