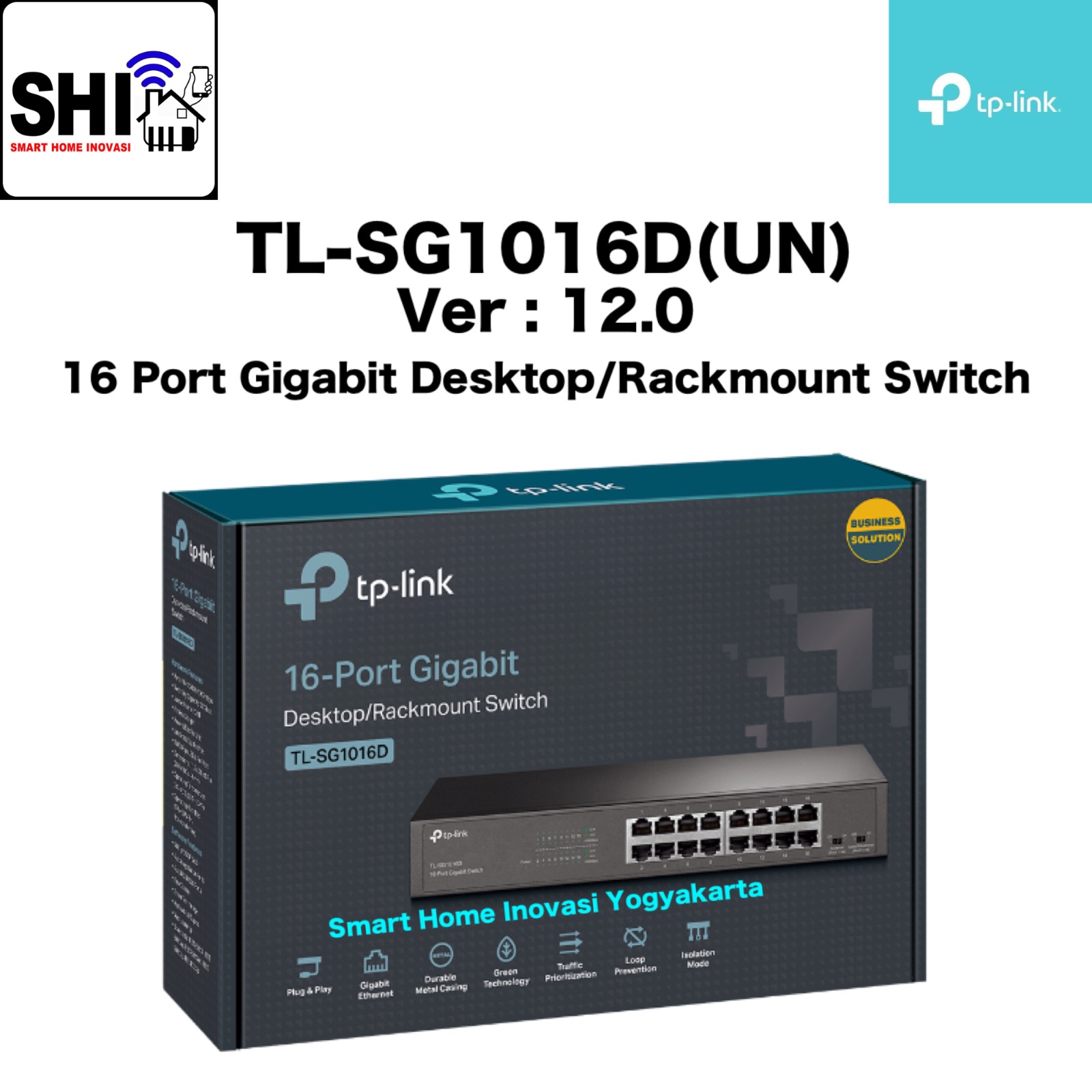

tp-link TL-SG1016D V12 , 16-Port Gigabit Desktop/Rackmount Switch

tp-link TL-SG1016D V12 , 16-Port Gigabit Desktop/Rackmount Switch

Overview :

• 16 10/100/1000Mbps ports

• Innovative energy-efficient technology saves power consumption

• Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation

• Isolation Mode : Ports 1-14

• Loop Prevention : Ports 1-16

• Plug & play design

SPESIFIKASI :

HARDWARE FEATURES :

• Standards and Protocols :

  • IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x

• Interface : 16

  • 10/100/1000Mbps RJ45 Ports

    • (Auto Negotiation/Auto MDI/MDIX)

• Network Media :

  • 10BASE-T: UTP category 3, 4, 5 cable

    • (maximum 100m)

  • 100BASE-TX/1000BASE-T:

    • UTP category 5, 5e or above cable (maximum 100m)

• Fan Quantity :    Fanless

• Physical Security Lock : No

• Power Supply : 100-240VAC, 50/60Hz

• Dimensions ( W x D x H ) :

  • 11.6 × 5.5 × 1.7 in. (294 × 140 × 44 mm)

• Max. Power Consumption :

  • 10.68 W (220 V/50 Hz)

• Max. Heat Dissipation : 36.31 BTU/h

PERFORMANCE

• Switching Capacity : 32Gbps

• Packet Forwarding Rate : 23.8Mpps

• MAC Address Table : 8K

• Advanced Features :

  • Isolation Mode: Ports 1-14

  • Loop Prevention : Ports 1-16

• Jumbo Frame : 10KB

• Green Technology : Yes

• Transmission Method : Store-and-Forward

Environment :

• Operating Temperature : 0℃~40℃ (32℉~104℉);

• Storage Temperature : -40℃~70℃ (-40℉~158℉);

• Operating Humidity : 10%~90% non-condensing;

• Storage Humidity : 5%~90% non-condensing

In the Box :

• 16-Port Gigabit Desktop/Rackmount Switch

• Power Cord

• Installation Guide

• Rackmount Kits

• Rubber Feet

Certification : FCC, CE, RoHs
