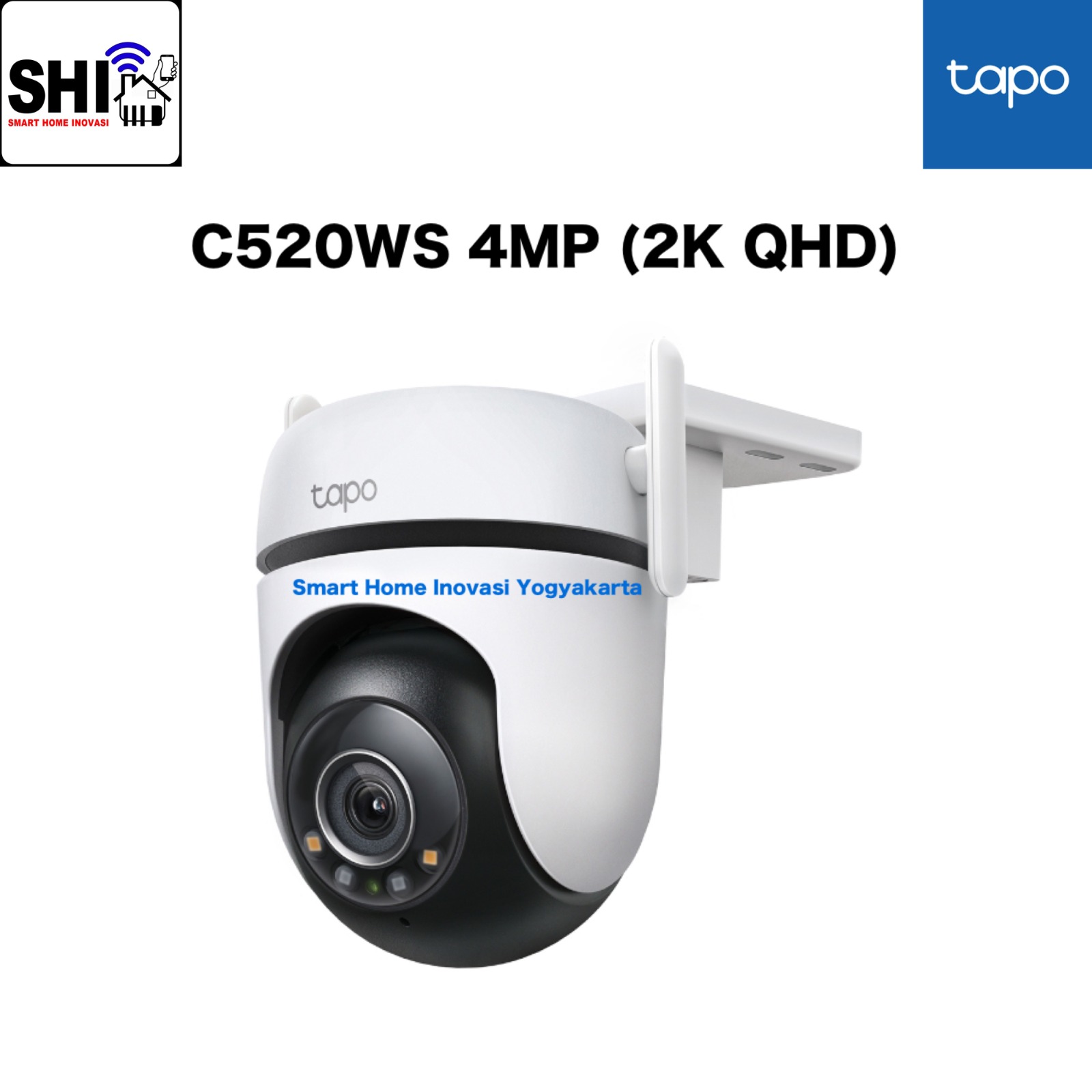

tp-link TAPO IP Camera PTZ Outdoor C520WS 4MP (2K QHD)

tp-link TAPO IP Camera PTZ Outdoor C520WS 4MP (2K QHD)

CAMERA :

• Image Sensor :

  • 1/3” Progressive Scan CMOS Starlight Sensor

• Lens : Focal Length: 3.2 mm

• Aperture : F1.6

• Field of View :

  • 112° (Diagonal), 95°(Horizontal), 53°(Vertical)

• Motion Range :

  • Pan Mechanical Range: 340° (360° Pan Coverage)

• Tilt Mechanical Range : 60° (130° Tilt Coverage)

• Night Vision : 850 nm IR LED (98 ft / 29.9 m)

• Full-Color Night Vision

• Lighting : 2× Built-in Spotlights

VIDEO & AUDIO :

• Maximum Resolution : 2K QHD 4MP (2560 × 1440 px)

• Frame Rate : 15/20/25/30 fps (Default 15 fps)

• Digital Zoom : 12x

• Video Compression : H.264

• Live View : Yes

• Image Enhancement : 3DNR, WDR

• Audio Input & Output :

  • Built-in Microphone and Speaker

• Audio Communication :

  • Two-Way Audio with Noise Cancellation

• Siren Volume : 93 dB

  • (Level measured at 4-inch/10-cm distance)

• Interface & Button :

  • 1× Ethernet Port

  • 1× RESET Button

  • 1× MicroSD Card Slot (Up to 512GB)

STORAGE :

• Local Storage : MicroSD Card Slot on Camera (Up to 512 GB)

• Cloud Storage : Tapo Care Cloud Storage Services

  • (Subscription required)

DETECTION and NOTIFICATIONS :

• AI Detection :

  • Motion Detection

  • Person Detection

  • Pet Detection

  • Vehicle Detection

  • Line-Crossing Detection

  • Tamper Detection

• Activity Zones : Yes

• Output Notification : System Notification

• System Notification with Snapshot (Tapo Care Services)

NETWORK :

• Network Connectivity : Connect via Wi-Fi or Ethernet

• Wireless Connectivity :

  • IEEE 802.11b/g/n/ax, 2.4 GHz Wi-Fi

• Ethernet Port : 1× 10/100 Mbps RJ45 Port on Camera

• RTSP : Yes

• ONVIF : Yes

SECURITY :

• On-Device Machine Learning

• 128-bit AES Encryption with SSL/TLS

• WPA/WPA2-PSK

POWER :

• Power Source : 9V DC Power Adapter

• Input Voltage : 100-240 V, 50/60 Hz

• Output Voltage : 9 V, 0.85 A (DC Power)

GENERAL :

• Smart Integration : Google Assistant, Amazon Alexa

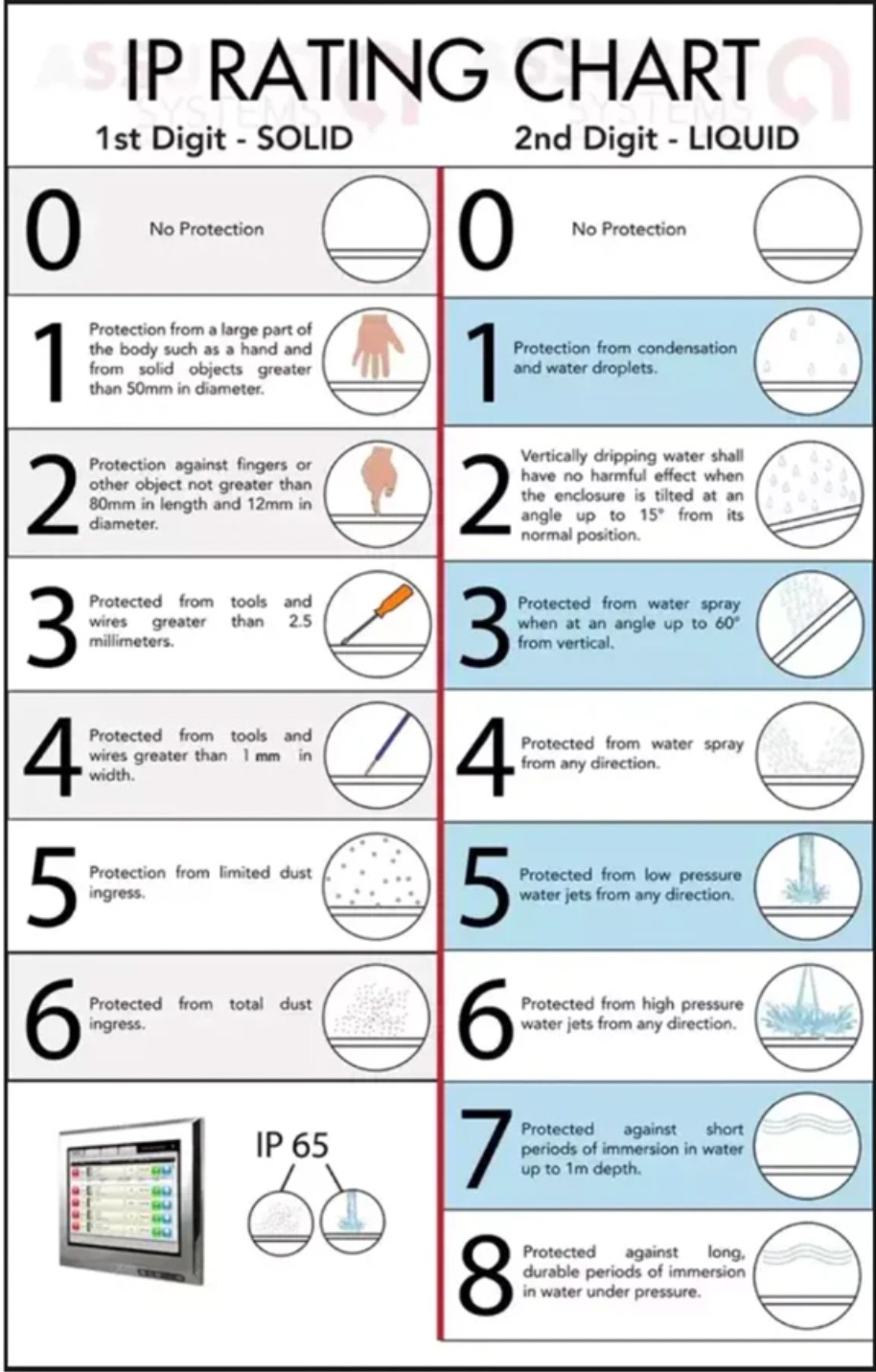

• Weather Resistance : IP66

• System Requirements  :

  Tapo App

  • iOS 9.0 or higher

  • Andriod 4.4 or higher

• Mounting Options :

  • Ceiling-Mounted

  • Wall-Mounted

  • Pole-Mounted

    • (Pole-Mounting loops required but not included)

• Operating Temperature: -30℃~60℃ (-22°F~140°F)

• Storage Temperature: -40℃~60℃ (-40°F~140°F)

• Operating Humidity: 10%~90% RH, Non-condensing

• Storage Humidity: 0~90% RH, Non-condensing

• Dimensions ( W x D x H ) :

  • 4.9 × 4.8 × 3.5 in (123.8 × 123 × 90 mm)

Package Content :

• Tapo C520WS Camera

• Power Adapter

• Mounting Anchors

• Mounting Screws

• Bracket Screws

• Mounting Template

• Mounting Bracket

• Waterproof Seal

• Waterproof Cable Attachments

• Quick Start Guide

Certifications : CE, FCC, RoHS, RCM
