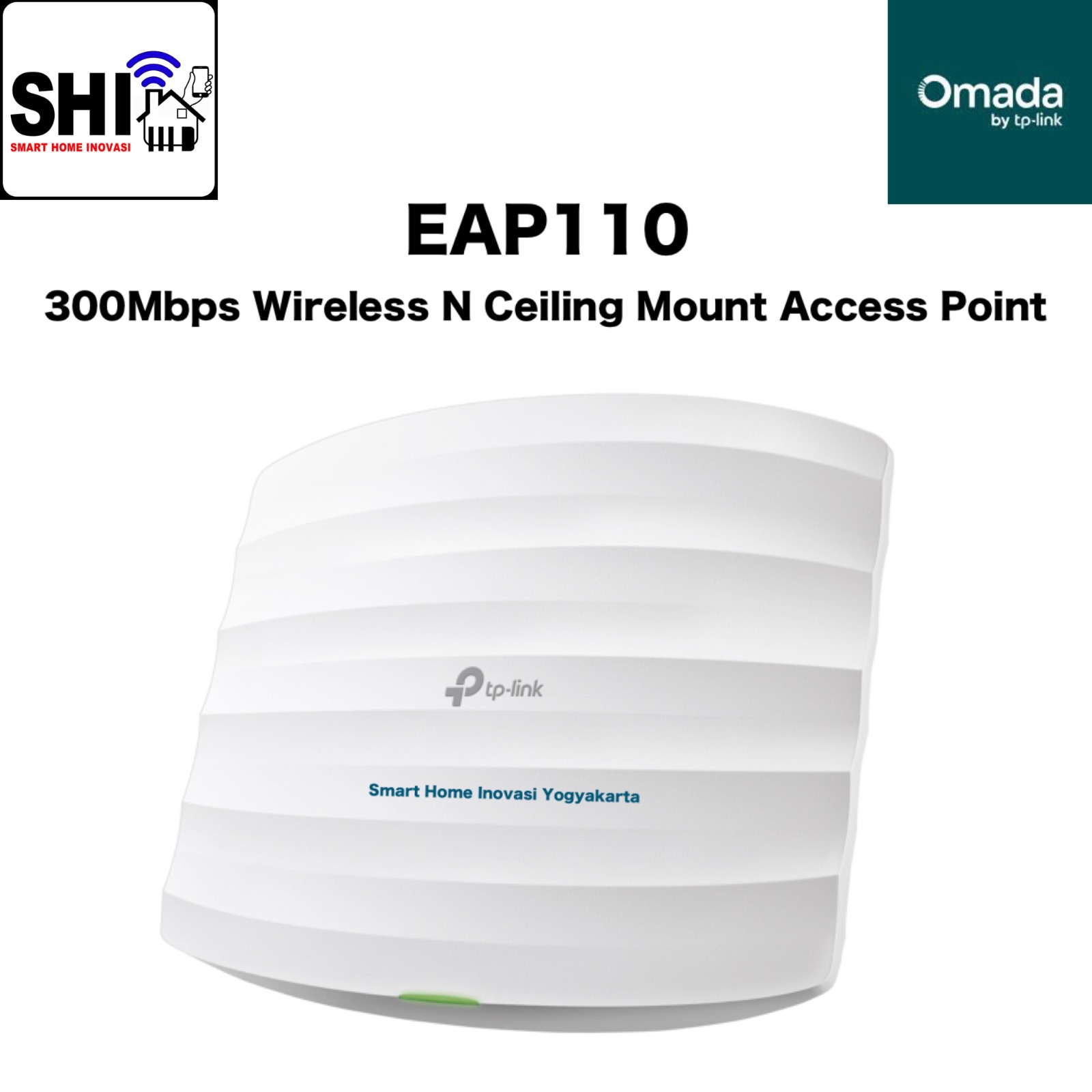

tp-link Omada EAP110, 300Mbps Wireless N Ceiling Mount Access Point

tp-link Omada EAP110, 300Mbps Wireless N Ceiling Mount Access Point

Overview :

• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.

• Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

• PoE Support: Supports Passive PoE (PoE adapter included) for convenient deployment.

• Easy Installation: Simple mounting design for easy attachment to a wall or ceiling.

• Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

• Load Balancing: Limit the number of users on each access point and remove devices with weak reception to keep your Wi-Fi running at peak performance.

• Scheduling: Automatically reboot the access point and turn on or off the Wi-Fi at the time you set.

HARDWARE FEATURES :

• Interface : 1× Fast Ethernet (RJ-45) Port (Support Passive PoE)

• Button : Reset

• Power Supply :

  • 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)

• Max. Power Consumption : 2.8 W

• Dimensions ( W x D x H ) :

  • 7.5×6.7×1.2 in (189.5×170.5×29.7mm)

• Antenna : Internal 2× 4 dBi Omni

• Mounting : Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES :

• Coverage : 60㎡(650ft²)§

• Concurrent Clients : 100+**

• Wireless Standards : IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

• Frequency : 2.4–2.4835 GHz

• Signal Rate :

  • 11n: Up to 300 Mbps (dynamic)

  • 11g: Up to 54 Mbps (dynamic)

  • 11b: Up to 11 Mbps (dynamic)

• Reception Sensitivity :

  • 300M : -71 dBm@10% PER

  • 150M : -75 dBm@10% PER

  • 54M : -78 dBm@10% PER

  • 11M : -93 dBm@8% PER

  • 6M : -92 dBm@10% PER

  • 1M : -96 dBm@8% PER

• Wireless Functions :

  • Multiple SSIDs :（Up to 8 SSIDs）

  • Enable/Disable Wireless Radio

  • Automatic Channel Assignment

  • Transmit Power Control

    • Adjust Transmit Power on dBm

  • QoS(WMM)

  • Rate Limit

  • Reboot Schedule

  • Wireless Schedule

  • Wireless Statistics based on SSID/AP/Client

• Wireless Security :

  • Captive Portal Authentication

  • Access Control

  • Wireless MAC Address Filtering

  • Wireless Isolation Between Clients

  • SSID to VLAN Mapping

  • Rogue AP Detection

  • 802.1X Support

  • 64/128/152-bit WEP / WPA / WPA2-Enterprise,

    • WPA-PSK / WPA2-PSK

• Transmission Power :

  • CE : ≤19 dBm (EIRP)

  • FCC :≤21 dBm

Management Features :

• Omada App : Yes

• Centralized Management :

  • Omada Hardware Controller

  • Omada Software Controller

• Cloud Access : Yes

  • (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

• Email Alerts : Yes

• LED ON/OFF Control : Yes

• Management MAC Access Control : Yes

• SNMP : v1,v2c

• System Logging Local/Remote Syslog : Local/Remote Syslog

• SSH : Yes

• Web-based Management : HTTP/HTTPS

• L3 Management : Yes

• Multi-site Management : Yes

• Management VLAN : Yes

OTHERS :

• Certification : CE, FCC, RoHS

• Package Content :

  • 300Mbps Wireless N Ceiling Mount Access Point EAP110

  • Passive PoE Adapter

  • Power Cord

  • Mounting Kits

  • Installation Guide

• System Requirements :

  • Microsoft Windows 10/8/7/Vista/XP

• Environment :

• Operating Temperature : 0–40 ℃ (32–104 ℉)

• Storage Temperature : -40–70 ℃ (-40–158 ℉)

• Operating Humidity : 10–90% RH non-condensing

• Storage Humidity : 5–90% RH non-condensing
