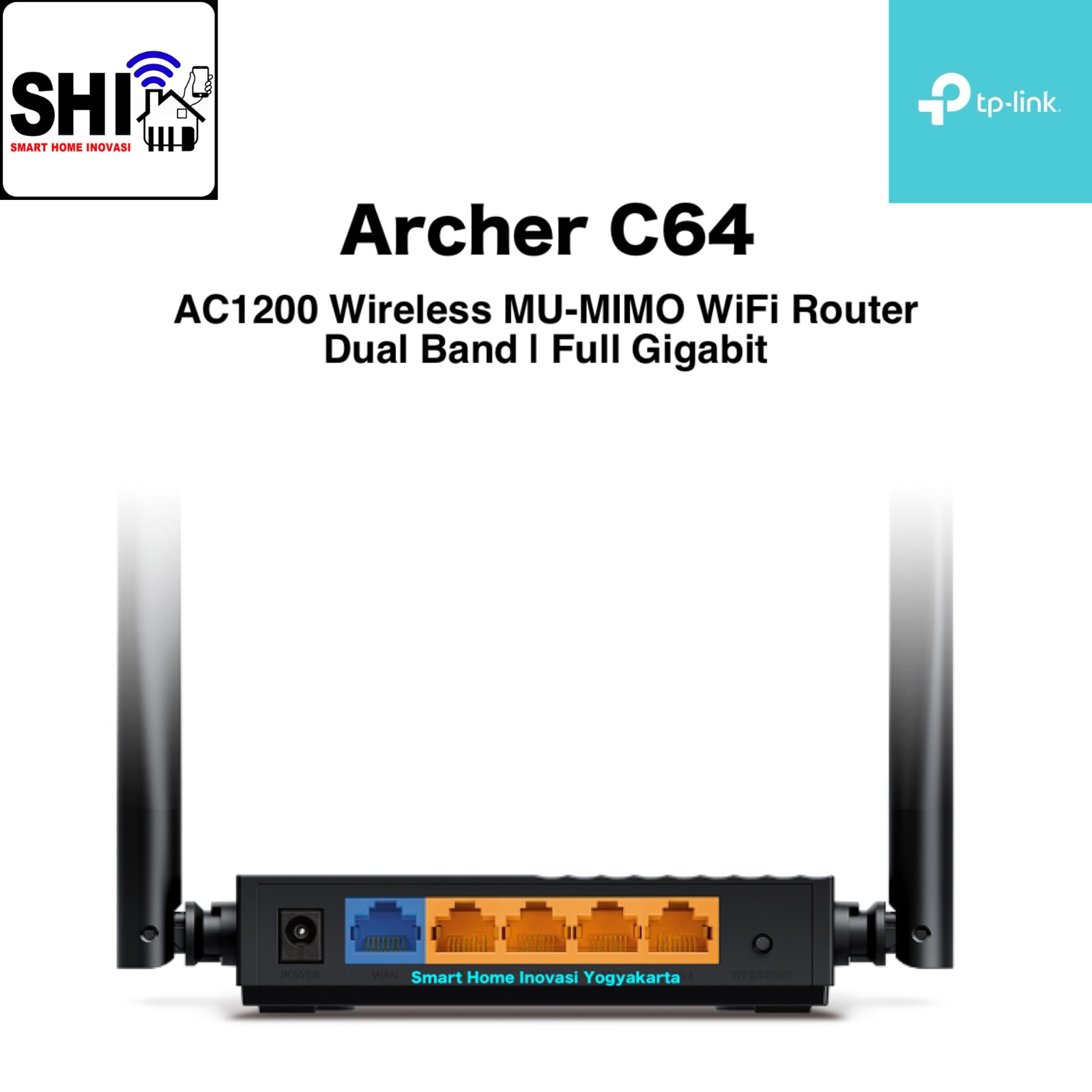

tp-link Archer C64, AC1200 Wireless MU-MIMO WiFi Router

tp-link Archer C64, AC1200 Wireless MU-MIMO WiFi Router

Overview :

• Wi-Fi 802.11ac Wave2

  • Kecepatan hingga 867 Mbps pada band 5 GHz dan 400 Mbps pada band 2.4 GHz†

• Cakupan Wi-Fi yang Ditingkatkan

  • 4 antena eksternal menyediakan koneksi nirkabel stabil dan jangkauan optimal

• MU-MIMO

  • Manajemen jaringan mudah dengan TP-Link Tether.

  • MU-MIMO meningkatkan efisiensi hingga 2× dengan berkomunikasi dengan hingga 2 perangkat sekaligus

• Beamforming

  • Teknologi Beamforming menghadirkan koneksi nirkabel yang sangat efisien

• Mode AP

  • Mendukung mode Access Point untuk membuat titik akses Wi-Fi baru

• Koneksi Cerdas

  • Smart Connect mengarahkan perangkat ke band yang lebih sedikit padat, sementara Airtime Fairness mengoptimalkan penggunaan waktu jaringan

• Pengaturan Mudah

  • Manajemen jaringan menjadi praktis dengan aplikasi TP-Link Tether

WIRELESS :

• Standards and Protocols :

  • Wi-Fi 5 :

    • IEEE 802.11ac/n/a 5 GHz

    • IEEE 802.11n/b/g 2.4 GHz

•  WiFi Speeds : AC1200

  • 5 GHz : 867 Mbps (802.11ac)

  • 2.4 GHz : 400 Mbps (802.11n)

• WiFi Range :

  • 3 Bedroom Houses

    • 4× Fixed High-Performance Antennas

      • Multiple antennas form a signal-boosting array to cover more directions and large areas

    •  Beamforming

      • Concentrates wireless signal strength towards clients to expand WiFi range

• WiFi Capacity : Medium

  • Dual-Band

    • Allocate devices to different bands for optimal performance

  • MU-MIMO

    • Simultaneously communicates with multiple MU-MIMO clients

  • Airtime Fairness

    • Improves network efficiency by limiting excessive occupation

• Working Modes :

  • Router Mode

  • Access Point Mode

SECURITY :

• Network Security :

  • SPI Firewall

  • Access Control

  • IP and MAC Binding

• Guest Network :

  • 1× 2.4 GHz Guest Network

  • 1× 5 GHz Guest Network

• WiFi Encryption :

  • WPA

  • WPA2

  • WPA3

  • WPA/WPA2-Enterprise (802.1x)

HARDWARE :

• Processor : 1.2 GHz CPU

• Ethernet Ports :

  • 1× Gigabit WAN Port

  • 4× Gigabit LAN Ports

• Buttons : WPS/Reset Button

• Power : 12V = 1A

SOFTWARE :

• Protocols :

  • IPv4

  • IPv6

•  EasyMesh :

  • Mesh networking creates smooth, fast, stable roaming.

  • Archer C64 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi.

  • Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability.

• Parental Controls :

  • URL Filtering

  • Time Controls

• WAN Types :

  • Dynamic IP

  • Static IP

  • PPPoE(Dual Access)

  • PPTP(Dual Access)

  • L2TP(Dual Access)

• Quality of Service : QoS by Device

• Cloud Service     :

  • OTA Firmware Upgrade

  • TP-Link ID

  • DDNS

• NAT Forwarding :

  • Port Forwarding

  • Port Triggering

  • UPnP

  • DMZ

• IPTV :

  • IGMP Proxy

  • IGMP Snooping

  • Bridge

  • Tag VLAN

• DHCP :

  • Server

  • DHCP Client List

  • Address Reservation

• DDNS :

  • TP-Link

  • NO-IP

  • DynDNS

• Management Features :

  • Tether App

  • Webpage

OTHER :

• Network Services Enabled by Default :

  • Web Server :

    • Manage and configure device through web (HTTP/HTTPS)

      • Port: 80/443   Protocol : TCP

  • DNS :

    • DNS :

      • Port : 53   Protocol : TCP & UDP

  • DHCP Server

    • IP address assignment (DHCP)

      • Port : 67   Protocol : UDP

  • App management :

    • Manage and configure device through app

      • Port : 20002   Protocol : UDP

  • Alexa service :

    • Detect Alexa-enabled devices in the LAN

      • Port : 5353   Protocol : UDP

• System Requirements :

  • Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

  • Cable or DSL Modem (if needed)

  • Subscription with an internet service provider (for internet access)

• Certifications : CE, RoHS

• Environment :

  • Operating Temperature: 0℃~40℃ (32℉ ~104℉)

  • Operating Humidity: 10%~90% non-condensing

  • Storage Humidity: 5%~90% non-condensing

TEST DATA :

• WiFi Transmission Power :

  • CE : <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz)

  • FCC :<30dBm(2.4 GHz & 5 GHz)

• WiFi Reception Sensitivity :

  • 5 GHz :

    • 11a 6Mbps :-95dBm

    • 11a 54Mbps :-77dBm

    • 11ac VHT20 MCS8 :-71dBm

    • 11ac VHT40 MCS9 :-67dBm

    • 11ac VHT80 MCS9 :-63dBm

  • 2.4 GHz :

    • 11g 6Mbps : -96dBm

    • 11g 54Mbps : -78dBm

    • 11n HT20 MCS7 :-77dBm

    • 11n HT40 MCS7 :-74dBm

    • 11ac VHT20 MCS8 :-73dBm

    • 11ac VHT40 MCS9 :-68dBm

PHYSICAL :

• Dimensions (W×D×H) :

  • 4.7 × 4.7 × 1.1 in (120 × 120 × 27.9 mm)

• Package Content :

  • Wireless Router Archer C64

  • Power Adapter

  • RJ45 Ethernet Cable

  • Quick Installation Guide
