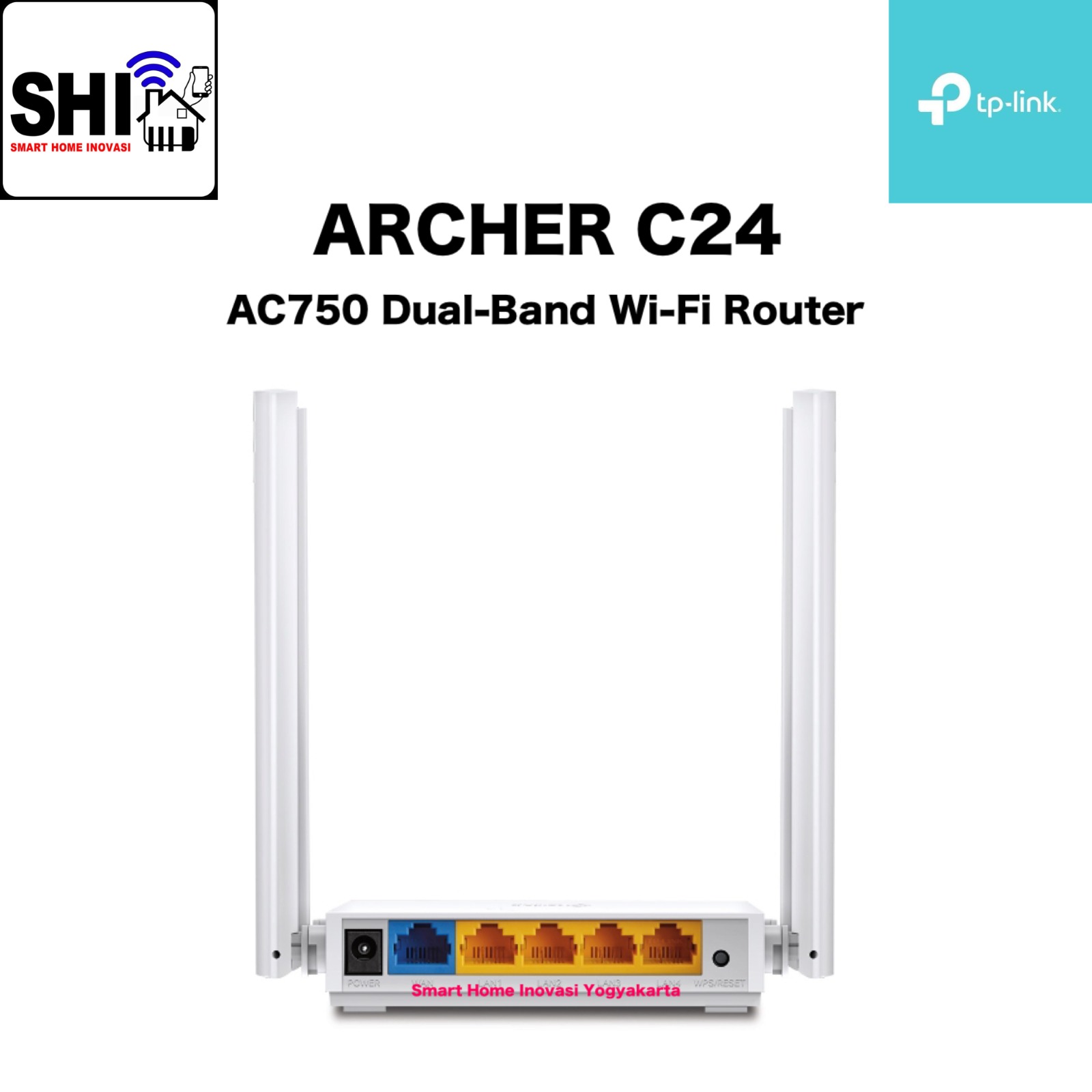

tp-link ARCHER 24, AC750 Dual-Band Wi-Fi Router

tp-link ARCHER 24, AC750 Dual-Band Wi-Fi Router

Overview:

•  Wi-Fi Berkecepatan Tinggi

  • AC750 dual-band ideal untuk streaming video HD dan pengunduhan berkecepatan tinggi.

• Cakupan Luas

  • 4 antena menghadirkan jangkauan Wi-Fi yang luas dan koneksi yang stabil.

• Multi-Mode 3-in-1

  • Mendukung mode Router, Access Point, dan Range Extender untuk fleksibilitas penggunaan.

• Kontrol Orang Tua

  • Mengatur kapan dan bagaimana perangkat yang terhubung dapat mengakses internet.

• Keamanan WPA3

  • Menawarkan peningkatan keamanan siber untuk jaringan pribadi.

• Jaringan Tamu

  • Menyediakan akses terpisah bagi tamu tanpa mengorbankan keamanan jaringan utama.

• Streaming HD Lancar

  • Mendukung IGMP Proxy/Snooping, Bridge, dan Tag VLAN untuk mengoptimalkan streaming IPTV.

• Dukungan IPv6

  • Kompatibel dengan IPv6 (protokol internet versi terbaru).

• Kompak dan Dapat Dipasang

  • Dirancang untuk menghemat ruang dan menyatu dengan berbagai gaya interior.

SPESIFIKASI :

WIRELESS :

• Standards and Protocols :

  •  Wi-Fi 5

  •  IEEE 802.11ac/n/a 5 GHz

  •  IEEE 802.11n/b/g 2.4 GHz

• WiFi Speeds : AC750

  • 5 GHz : 433 Mbps (802.11ac)

  •  2.4 GHz : 300 Mbps (802.11n)

• WiFi Range :

  • 2 Bedroom Houses

    • 4× Fixed Antennas

    • Multiple antennas form a signal-boosting array to cover more directions and large areas

•  WiFi Capacity :

  • Medium

    • Dual-Band

    • Allocate devices to different bands for optimal performance

• Working Modes :

  • Router Mode

  • Access Point Mode

  • Range Extender Mode

SECURITY :

• Network Security :

  • SPI Firewall

  • Access Control

  • IP & MAC Binding

  • Application Layer Gateway

• Guest Network :

  • 1× 5 GHz Guest Network

  • 1× 2.4 GHz Guest Network

• WiFi Encryption :

  • WPA

  • WPA2

  • WPA-PSK

  • WPA2-PSK

  • WPA3-Personal encryption

HARDWARE :

• Ethernet Ports :

  • 1× 10/100 Mbps WAN Port

  • 4× 10/100 Mbps LAN Ports

• Buttons : WPS/Reset Button

• Power : 9 V ⎓ 0.6 A

SOFTWARE :

• Protocols :

  • IPv4

  • IPv6

• Parental Controls :

  • URL Filtering

  • Time Controls

• WAN Types :

  • Dynamic IP

  • Static IP

  • PPPoE

  • PPTP

  • L2TP

• Quality of Service : QoS by Device

• NAT Forwarding :

  • Port Forwarding

  • Port Triggering

  • DMZ

  • UPnP

• IPTV :

  •  IGMP Proxy

  • IGMP Snooping

  • Bridge

  • Tag VLAN

• DHCP :

  • Address Reservation

  • DHCP Client List

  • Server

• DDNS :

  • NO-IP

  • DynDNS

• Management Features :

  • Tether App

  • Webpage

OTHER :

• Network Services Enabled by Default :

  • Web Server :

    • Manage and configure device through web (HTTP/HTTPS)

      • Port : 80/443   Protocol : TCP

  • DHCP Server :

    • IP address assignment (DHCP)

      • Port : 67   Protocol : UDP

  • App management :

    • Manage and configure device through app

      • Port : 20002   Protocol : UDP

• System Requirements :

  • Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+,

    • or other JavaScript-enabled browser

  • Cable or DSL Modem (if needed)

  • Subscription with an internet service provider

    • (for internet access)

• Environment :

  • Operating Temperature : 0℃~40℃ (32℉ ~104℉)

  • Storage Temperature : -40℃~60℃ (-40℉ ~140℉)

  • Operating Humidity : 10%~90% non-condensing

  • Storage Humidity : 5%~90% non-condensing

•  Dimensions (W×D×H) :

  • 4.5 × 4.2 × 1.0 in (115 × 106.7 × 24.3 mm)

TEST DATA :

• WiFi Transmission Power :

  • CE :

    • <20dBm(2.4GHz)

    • <23dBm(5GHz)

• WiFi Reception Sensitivity :

  • 5GHz :

    • 11a 54M : -76dBm;

    • 11ac VHT20 MCS8 : -70dBm

    • 11ac VHT40 MCS9 : -65.5dBm

    • 11ac VHT80 MCS9 : -61.5dBm

  • 2.4GHz :

    • 11g 54M : -76dBm11n; HT20 MCS7 : -74dBm;

    • 11n HT40 MCS7 : -71dBm

In the Box :

• Wi-Fi Router Archer C24

• Power Adapter

• RJ45 Ethernet Cable

• Quick Installation Guide

Certifications : FCC, CE, RoHS
