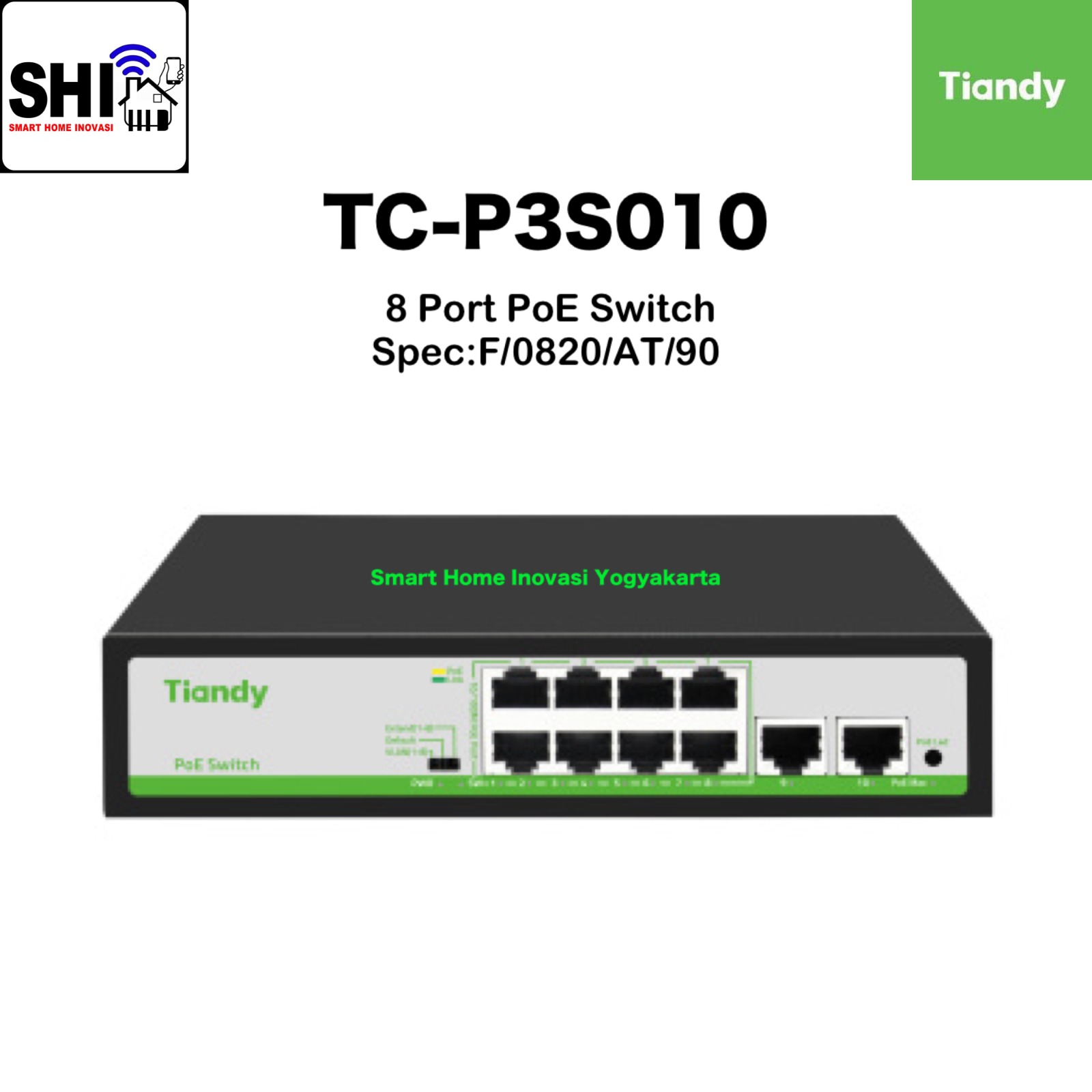

TIANDY TC-P3S010 Spec: F/0820/AT/90, Switch PoE 8 Port/10 Channel

TIANDY TC-P3S010 Spec: F/0820/AT/90, Switch PoE 8 Port/10 Channel

Overview :

• 8*10/100Mbps PoE Ports + 2*10/100Mbps RJ45 Uplink Ports

• Comply with IEEE 802.3、IEEE 802.3u、IEEE802.3x standard

• Ethernet port supports 10/100Mbps adaptive

• Support POE Priority(QOS)：

• 1>2>3>4>5>6>7>8(The port in front has higher priority)

• Flow control mode:

• Full-duplex adopts IEEE 802.3x standard

• Half-duplex adopts back pressure standard

• Support Port Auto-flip(Auto MDI/MDIX)

• Adopting store-and-forward switching mechanism

• All ports support wire-speed switching

• Zero configuration feature,

• Automatically supplied to adaptive equipment.

• Panel indicator monitoring status and help failure analysis

• With three gears and one key intelligent dip switch，support VLAN、

• Default、Extend three modes

• Surge Protection : General 4KV（level C）:

• ESD 8KV air, 6KV contact（level C）

Spesifikasi :

• Model : Tiandy TC-P3S010 Spec: F/0820/AT/90

I/O Interface :

• Power : AC INPUT (100-240V)

• Ethernet :

  • 8*10/100Mbps PoE Ports,

  • 2*10/100Mbps RJ45 Uplink Ports

Performance :

• Bandwidth : 2Gbps

• Throughput : 1.488Mpps

• Packet Buffer : 448Kbit

• MAC Address : 2K

• Transfer Mode : Store and Forward

Standard :

• Network Protocol :

  • IEEE802.3 (10Base-T),

  • IEEE802.3u (100Base-TX),

  • IEEE802.3x (Flow control)

• PoE Protocol :

  • IEEE802.3af (15.4W), IEEE802.3at (30W),

  • POE port output voltage : DC 52V,

  • POE power supply core : 1/2+; 3/6-

• Industrial Standard :

  • EMS : EN61000-4-2 (ESD), EN61000-4-5 (Surge)

• Network Medium :

  • 10Base-T : Cat3, 4, 5 or above UTP/STP (≤100m),

  • 100Base-TX : Cat5 or above UTP/STP (≤100m)

Function :

• LED Indicators :

  • PWR (Power Supply)

  • SW(DIP)

  • 1-10 Green (Link & Data)

  • POE Max (Power)

• PWR

  • On : Powered on,

  • Off : Powered off

• POE LED Buttons :

  • Dual color light selection:

    • Default green (link data)

    • Switch yellow light (POE)

• DIP Switch :

  • VLAN : (Port Isolation Mode).

    • In this mode, the PoE ports (1-8) of the switch cannot
            communicate with each other and can only communicate with
            the Uplink port (9, 10).

    • The port AI mode (PoE Watchdog) is turned on.

  • Default : (Normal Mode).

    • All Ports can communicate with each other,

      • the transmission rate is 10/100Mbps adaptive;

    • The port AI mode is disabled;

  • Extend : (Link Extension Mode). 1-8 ports force 10M, link 220M.

    • The port AI mode (PoE Watchdog) is turned on.

Environment :

• Working Environment :

• • Working Temperature : -10~50℃,

• • Storage Temperature : -40~70℃,

• • Working Humidity : 10%~90%, non-condensing,

• • Storage Temperature : 5%~95%, non-condensing

Physical Specifications :

• Dimension :

  • Product Dimensions : 200*118*44mm,

  • Package Dimensions : 245*190*60mm,

  • Product N.W : 0.68KG, Product G.W: 0.98KG

• Packing Info :

  • Carton Dimensions : 520*320*400mm,

  • Packing Quantity : 20PCS,

  • Packing Weight : 20.6KG

• Power Voltage :

  • Input Voltage : AC 100-240V, Power Supply : 52V / 1.92A

• Power :

  • Mainboard power : maximum 10W,

  • POE power : maximum 90W
