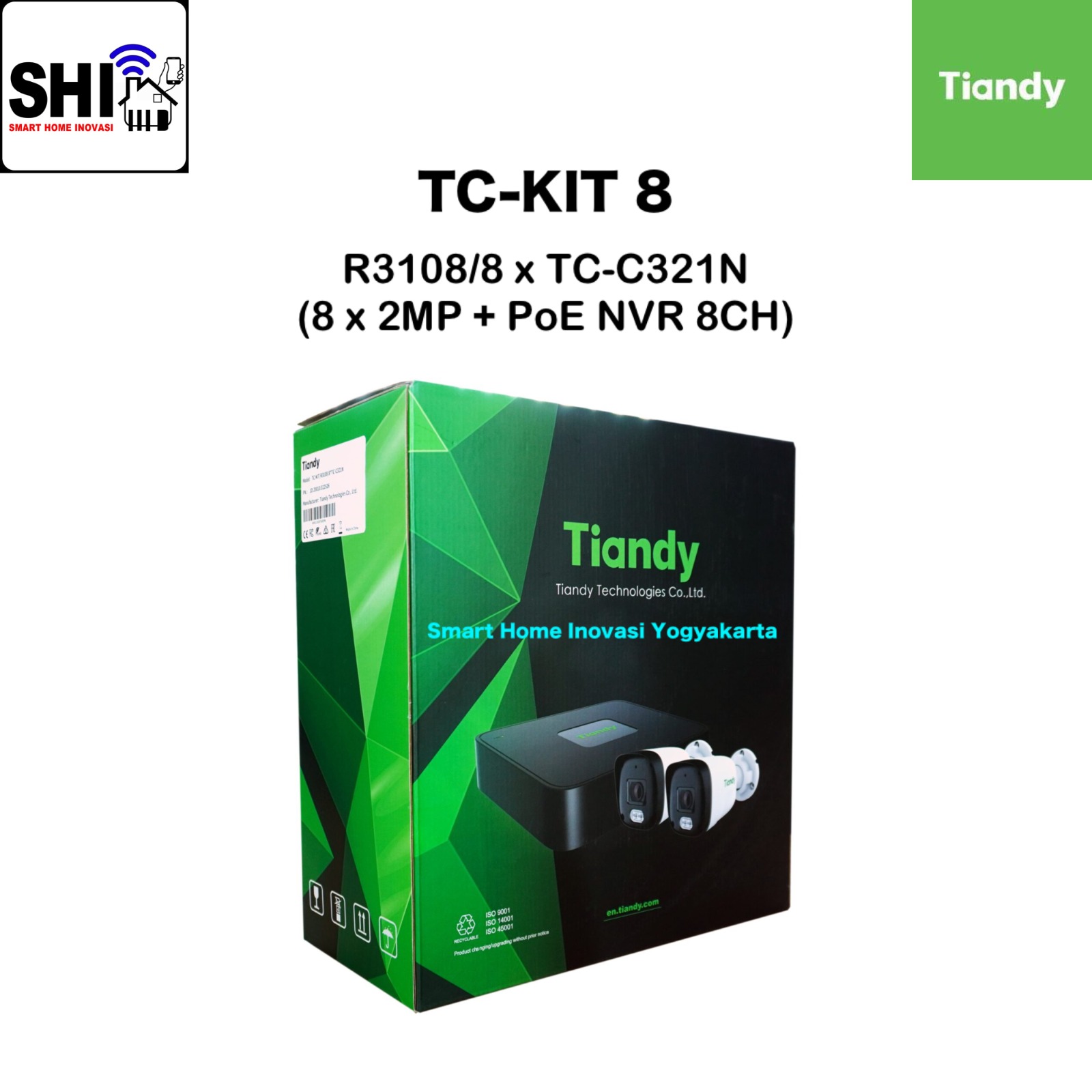

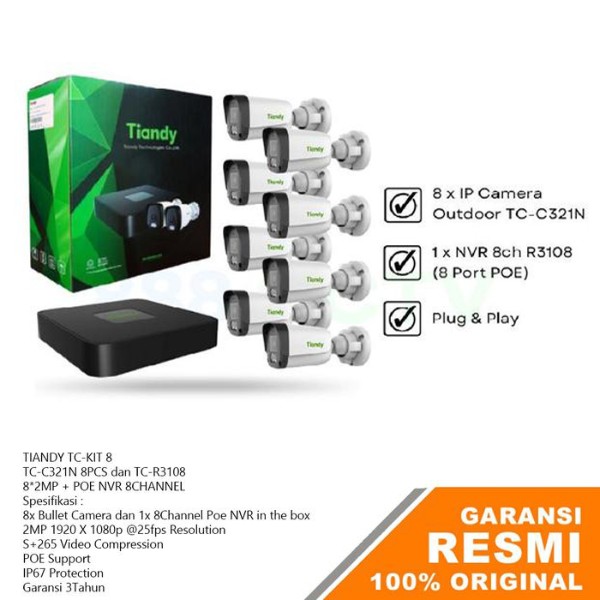

TIANDY TC-KIT8

TIANDY TC-KIT8

Product Information :

• Model NVR No. : TC-R3108 Spec:I/B/P8/C/Eu/L/S/V2.0

• Model Camera No.: TC-C321N Spec:I3/E/Y/2.8mm

Video and Audio :

• Access Channel : 8

• Incoming Bandwidth : 60Mbps

• Outgoing Bandwidth : 40Mbps

• Resolution :

  • 6MP/5MP/4MP/3MP

  • 1080P/UXGA/720P/VGA

  • 4CIF/DCIF/2CIF/CIF/QCIF

• Preview Decoding Capability :

  • 6MP(30fps)×1

  • 5MP(30fps)×1

  • 4MP(30fps)×2

  • 3MP(30fps)×2

  • 1080P(30fps)×4

  • 720P(30fps)×8

  • 4CIF(30fps)×8

• Playback Decoding Capability :

  • 6MP(30fps)×1

  • 5MP(30fps)×1

  • 4MP(30fps)×1

  • 3MP(30fps)×2

  • 1080P(30fps)×3

  • 720P(30fps)×4

• Third-party Camera Access : ONVIF(Profile S/T); RTSP

• HDMI Output :

  • 1024×768(60Hz)

  • (720P )1280×720(50Hz/60Hz)

  • 1280×800(60Hz)

  • 1440×900(60Hz)

  • (1080P)1920×1080(50Hz/60Hz)

• VGA Output :

  • 1024×768(60Hz)

  • (720P )1280×720(50Hz/60Hz)

  • 1280×800(60Hz)

  • 1440×900(60Hz)

  • (1080P)1920×1080(50Hz/60Hz)

• Multi-screen Display : Simultaneous Output :

  • VGA : 1/2/3/4/5/6/7/8/9

  • HDMI : 1/2/3/4/5/6/7/8/9

Compression :

• Video : S+265; H.265; S+264; H.264

• Audio : G711A; G711U; ADPCM_DIV4

• Stream Type : Video; Video & Audio

Network :

• Network Protocol :

  • ARP; DDNS; DHCP; DNS; Easy DDNS; HTTP; ICMP; IGMP; IPv4;

  • IPv6; NTP; RTCP; RTP; RTSP; SSH; TCP/IP; UDP; Unicast; UPnP

• Mobile Phone Access : Android; iOS; P2P

• System Compatibility : CGI; SDK

• Web : IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+

Record Playback :

• Multi-channel Playback : 4

• Record Mode : Alarm Recording; Schedule Recording

• Storage Method : Local HDD

• Backup : USB storage device

• Playback Function :

  • Play, Pause, Stop, Slow, Speed, Backwards 30s, Forwards 30s

  • Full Screen, Backup (Video Editing), Digital Zoom

Alarm :

• General Alarm :

  • Motion Detection

  • Mask Alarm

  • Alarm Input(IPC)

• Exceptions Alarm :

  • Video Loss

  • Network Disconnected

  • No Disk

  • Illegal Access

  • Disk Full

  • Disk R/W Error

  • Recording Abnormal

  • Abnormal found in smart of disk

  • Abnormal temperature of the disk

  • PoE Overload; Voltage Alarm(IPC)

  • RTC Failure

  • IP Address Conflict

  • MAC Address Conflict

Intelligent Analytics :

• AI by Camera : Smart Motion

Storage :

• HDD Capacity : Up to 6 TB capacity for each HDD

External Port :

• USB : 2×USB2.0

• HDMI : 1×HDMI

• VGA : 1×VGA

• Network Interface :

  • 1×RJ-45, 10/100 Mbps self-adaptive Ethernet port

• SATA : 1×SATA interface

PoE :

• PoE Interface : 8 × RJ45

  • 10/100 Mbps self-adaptive Ethernet port

• PoE Budget : 45W

• Power per PoE Port : 30W

• Standard : IEEE 802.3 af/at

General :

• UI Language :

  • English; Spanish; Italian; Turkish; French; Polish

  • Dutch; Hebrew; German; Portuguese

• Power Supply : DC48V

• Power Consumption : <10W(without HDD&without PoE)

• NetWeight : 0.47kg

• GrossWeight : 0.89kg

• Boundary Dimensions : 200(L)200(W)43(H)mm

• Package Dimensions : 315(L)70(W)235(H)mm

• Operating Temperature : -10℃~+55℃ (+14℉~+131℉)

• Operating Humidity : 10%~90%RH (non-condensing)

• Storage Temperature : -20℃~+60℃ (-4℉~+140℉)

In the Box :

• Network Video Recorder

• Screw Pack

• Mouse

• European Standard Power Adapter (DC48V 1.35A)
