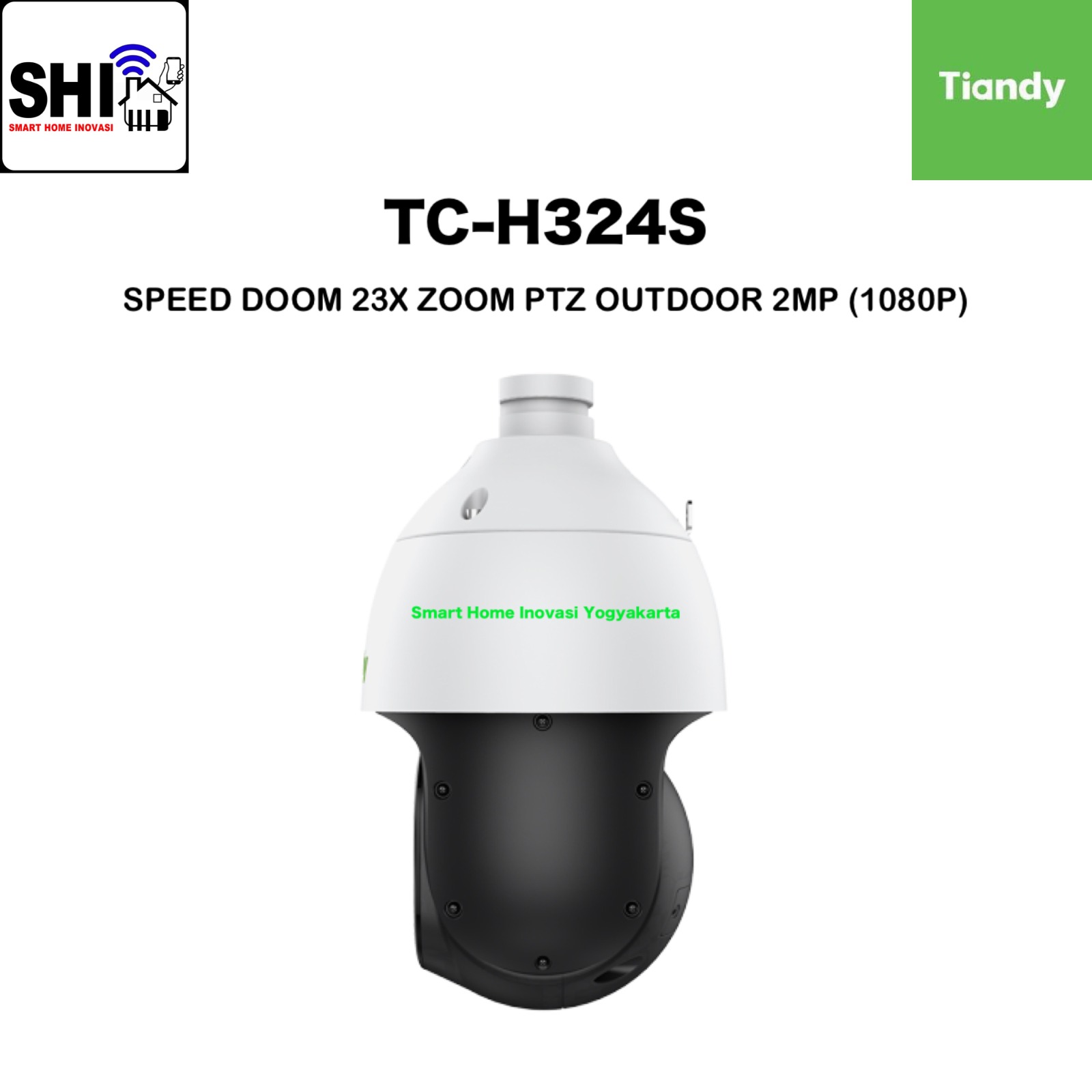

TIANDY TC-H324S, IP Camera PTZ Outdoor 23X Zoom Speed Dome 2MP (1080P) #PO#
Rp1.00
TIANDY TC-H324S, IP Camera PTZ Outdoor 23X Zoom Speed Dome 2MP (1080P) #PO#
Camera :
Image Sensor : 1/2.8"CMOS
Min. Illumination :
Color : 0.001lux@ (F1.5,AGC ON),
B/W : 0lux with IR
Shutter Time : 1s~1/100000s
Day&Night : IR-cut filter with auto Switch (ICR)
Smart IR : Yes
WDR : 120dB
S/N : 42dB
Lens :
Focal Length : 5mm~115mm
Optical Zoom : 23X
Zoom Speed : <5s
Aperture Range : F1.5~F3.0
Aperture Type : Auto(P-Iris)
Field of View : 55.8°~3.2°(H); 32.2°~1.8°(V); 61°~3.64°(D)
Focus Control : Auto/Semi-auto/Manual
Close Focus Distance : 1000mm~1500mm
DORI Distance :
Detect : 1351m
Observe : 536m
Recognize : 270m
Identify : 135m
Pan & Tilt :
Pan Range : 360°
Pan Speed : Manual Speed:0.1°～80°/s Preset Speed:80°/s
Tilt Range : -16°~90° (Default -3°~90°)
Tilt Speed : Manual Speed:0.1°～80°/s Preset:80°/s
3D Position : Yes
Preset : 500
Cruise : 16,up to 32 presets per cruise
Scan : 8
Pattern : 8,each with 600s memory or 1000 orders
Scheduled Task : Preset,Cruise,Scan,Pattern
North Point : Yes(Manual setting)
Power-off Memory : Yes
Illuminator :
IR LEDs : 7
IR Distance : Up to 150m
Wavelength : 850nm
IR Irradiation Angle : Yes
Compression Standard :
Video Compression :
S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG
Video Bit Rate : 32Kbps~16Mbps
Image :
Max. Resolution : 2MP,1920×1080@30fps
Main Stream :
PAL :
25fps(1920×1080,1280×720,640×480,704×576)
NTSC : 30fps(1920×1080,1280×720,640×480,704×480)
Sub Stream :
PAL : 25fps(704×576,704×288,640×360,352×288)
NTSC : 30fps(704×480,704×240,640×360,352×240)
Third Stream :
PAL : 25fps(352×288)
NTSC : 30fps(352×240)
BLC : Yes
HLC : Yes
AGC : Yes
3DNR : Yes
White Balance :
Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp
Daylight Lamp/Filament Lamp/Lock White Balance
ROI : 7 Dynamic Areas for Both Main and Sub Stream
OSD :
5 regions
Each region can have a maximum of 127 characters
Up to 1 line
16*16/24*24/32*32/48*48/64*64/adaptable size
Vector/Lattice
Defog : Yes
Flip : Normal/Horizontal Mirror/Vertical Mirror/Inverted Flip
Regional Exposure : Yes
Regional Focus : Yes
Demist : Yes
Feature :
General Alarm : Motion Detection; Mask Alarm
Exceptions Alarm :
Voltage Alarm
Disk Full
Disk R/W Error
Recording Exception
IP Address Conflict
MAC Address Conflict
FTP Server Exception
Network cable disconnected
Linkage Method :
Send Email
Trigger Recording
Trigger Capture
Notify Surveillance Center
Video Analytics :
Human/Vehicle Classification
Tripwire
Double Tripwire
Perimeter
Object Abandon
Object Missing
Heatmap
Video Abnormal
Network :
ANR : Yes
Protocols :
HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP v1\v2\v3
DHCP; DNS; DDNS; Easy DDNS; NTP; SMTP; TLS v1.2; SSL;
802.1x; QoS; IPv4; IPv6; PPPoE; SSH; Unicast; Multicast;
ARP; RTP; SRTP; FTP; SFTP
System Compatibility :
P2P; ONVIF(Profile S/T/G/M);
SDK; CGI; Milestone; RTSP; RTMP
Remote Connection : ≤2
User/Host : Up to 32 users. 4 user levels
Client : Easy7 VMS
Moblie Client : EasyLive Plus
Web : IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
Interface :
Communication Interface : 1*RJ45 (10/100Base-T)
Reset Button : Yes
On-board Storage : Built-in Micro SD card slot,up to 512 GB
General :
Web Client Language : 19 languages :
Simple Chinese/English/Traditional Chinese/Spanish/Italian
Korean/Turkish/Russian/Thai/ Polish/French/Dutch/ Hebraism
Vietnamese/Arabic/German/ Ukrainian /Portuguese/Albanian
Operating Temperature : -30℃~65℃(-22℉~149℉)
Operating Humidity : ≤95%RH
Storage Temperature : -30℃~65℃(-22℉~149℉)
Storage Humidity : 10%~95%RH(non-condensing)
Power Supply : DC12V±10%; PoE:IEEE 802.3at
Power Consumption : 7.3W(IR OFF) ; 17.6W(IR ON)
Protection : Surge4000V; ESD6000V; IP66
Material : Metal+plastic
Boundary Dimensions : 161mm(D)x276mm(H)
Package Dimensions : 260(L)260(W)465(H)mm
GrossWeight : 3.7kg
NetWeight : 2.1kg
