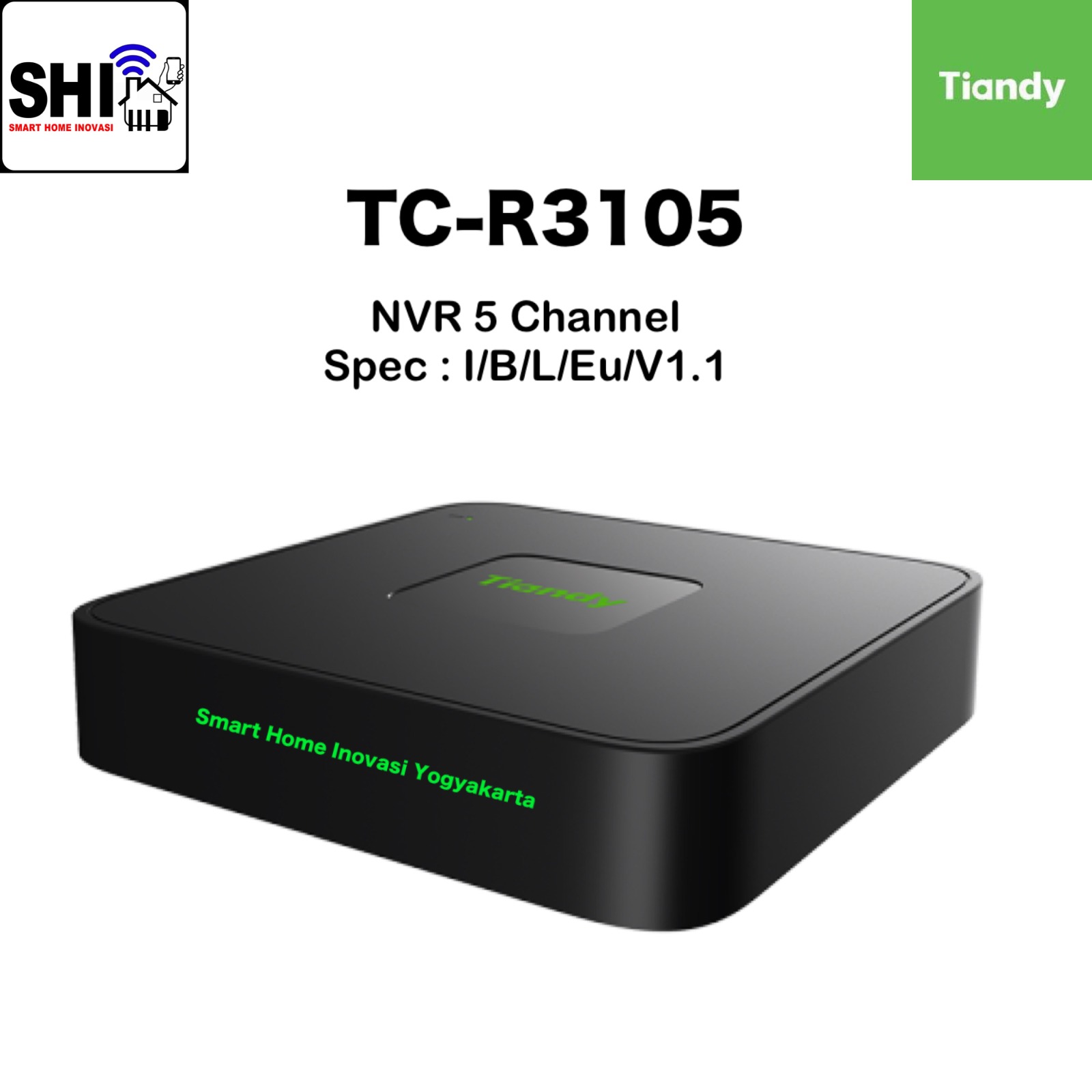

TIANDY TC-R3105, NVR 5 Channel Spec:I/B/L/Eu/V1.1
Perekam video jaringan untuk sistem keamanan
Rp1.00
TIANDY TC-R3105, NVR 5 Channel Spec:I/B/L/Eu/V1.1
Overview :
HD Input: S+265/H.265/H.264 video formats
HD Output: HDMI Video output at up to 4K resolution
HD Storage: 1 SATA interface, up to 8TB for 1 HDD
Channel: 5 Channel
SPESIFIKASI :
Model : TC-R3105 Spec: I/B/L/(Eu)/V1.1
Input :
Video Input : 5-ch
Max Resolution : 6MP
Two-way Audio Input : N/A
Bandwidth : Income 60Mbps; Outgoing 40Mbps
Output :
HDMI/ VGA Output :
HDMI 1-ch,
3840×2160
1920×1080
1280×720
1024×768
1366×768
1440×900
1280×800
VGA 1-ch,
1920×1080
1280×720
1024×768
1366×768
1440×900
1280×800
Screen Split : 1/3/4/5
Audio Output : N/A
Decoding :
Decoding Format : S+265/H.265/H.264
Recording Resolution :
6MP/5MP/4MP/3MP
1080P/UXGA/720P/VGA
4CIF/DCIF/2CIF/CIF/QCIF
Preview Capability :
1×6MP, 1×5MP, 1×4MP, 1×3MP, 4×1080P, 5×720P, 5×4CIF
Synchronous Playback :
1×6MP, 1×5MP, 1×4MP, 1×3MP, 3×1080P, 4×720P
Records Encryption : N/A
Hard Disk :
SATA : 1 SATA interface for 1 HDDs
Capacity : Up to 8TB for each HDD
eSATA Interface : N/A
Aarray Type : N/A
External Interface :
Network Interface :
1×RJ45 self-adaptive 10/100 Mbps network
Interface :
USB Interface : 2×USB 2.0
Serial Interface : N/A
Alarm In/Out : N/A
Feature :
VCA :
Tripwire
Double Tripwire
Perimeter
Object Abandon
Object Lost
Loitering
Motion Detection
Early Warning
Crowd
On Duty Detection
Video Abnormal
Audio Abnormal
Network :
Protocol :
HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, DHCP, DNS,
DDNS, EasyDDNS, NTP, SMTP, SSL, QoS, IPv4, IPv6,
IP Filter, Telnet, SSH, RTSP, RTP, RTCP, ARP
System Compatibility : ONVIF (PROFILE S/T), SDK, P2P
General :
Web Version : Web6
Language : English, Turkish
Operating Conditions : -10～55℃, 10%~90% RH
Power Supply : DC12V 1.5A
Power Consumption : ≤10W (Without HDD)
Case Size : 1U
Dimensions : 42.9×200×199.5mm, (1.69×7.87×7.85 inch)
Weight (without HDD) : 0.4Kg (0.88lb)
