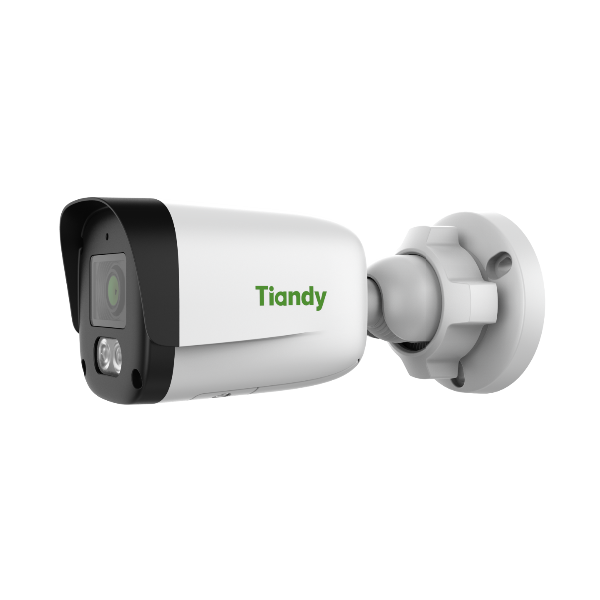

TIANDY TC-C2, IP Camera Static Outdoor Bullet 2MP (1080P)

TIANDY TC-C2, IP Camera Static Outdoor Bullet 2MP (1080P)

Product Information :

• Model : Spec: I5W/ WIFI/ Eu/ 2.8mm/ V4.0

Camera :

• Image Sensor : 1/2.9″ CMOS

• Min. Illumination :

  • Color : 0.02 Lux@ (F1.6, AGC ON)

  • B/W : 0Lux with IR

• Shutter Time : 1s to 1/ 100,000s

• Day & Night : IR-cut filter with auto switch (ICR)

• WDR : DWDR

• S/N : >40dB

• Angle Adjustment : 0~360°(P); 0~75°(T); 0~360°(R)

Lens :

• Lens Type : Fixed

• Focal Length : 2.8 mm

• Lens Mount : M12

• Aperture Range : F1.6, fixed focal lens

• Field of View : 100.3°; 54.4°; 116°

• DORI Distance :

  • Detect : 40m

  • Observe : 15.87m

  • Recognize : 8m

  • Identify : 4m

Illuminator :

• IR LEDs : 2

• IR Distance : 30m

• Wavelength : 850nm

• White LEDs : 2

• Whitelight Distance : 15m

Compression Standard :

• Video Compression :

  • S+265/ H.265/ H.264B/ H.264M/ H.264H

• Video Bit Rate   : 32k – 4Mbps

• Audio Compression : G.711A/ G.711U

• Audio Sampling Rate : 8kHz/ 16kHz

Image :

• Max. Resolution : 1920 x 1080 @20fps

• Main Stream :

  • PAL : 20fps (1920×1080, 1280×720, 640×480, 704×576)

  • NTSC : 20fps (1920×1080, 1280×720, 640×480, 704×480)

• Sub Stream :

  • PAL :  20fps (704×576, 704×288, 640×360, 352×288)

  • NTSC : 20fps (704×480, 704×240, 640×360, 352×240)

• Third Stream : N/A

• BLC : Yes

• HLC : Yes

• AGC : Yes

• 3D DNR : Yes

• White Balance :

  • Auto/ Semi-Auto/ Manual/ Sunshine/ Nature Light/

  • Warmlight Lamp/ Daylight Lamp/ Filament Lamp/

  • Lock White Balance

• ROI : N/A

• Coridor Mode : N/A

• EIS : N/A

• OSD : Overlay of additional characters in one area, 1 line, up to
         48 characters or 16 Chinese characters; 16*16/ 32*32

• Picture Overlay : N/A

• Privacy Mask : 4 black static areas

• Defog : Yes

Feature :

• Alarm Trigger :

  • Voltage Alarm

  • Disk Full

  • Disk R/W Error

  • IP Address Conflict

• Video Analytics : N/A

• Rules of behavior analyze in 1 scene : N/A

• Early Warning (EW) : N/A

• Auto-Tracking : N/A

• Face Mode : N/A

• Face Detection Performance : N/A

• Linkage Method :

  • Trigger sound

  • Trigger recording

  • Trigger capture

  • Notify surveillance center

Network :

• ANR : Yes

• Protocols :

  • HTTP; TCP/ IP; UDP; ICMP; DHCP;

  • DNS; NTP; IPv4; SSH; Unicast; FTP

• System Compatibility : P2P; onvif; CGI

• Remote Connection : ≤2

• Client : Easy7 Smart Client

• Mobile Client : EasyLive Plus

• Web : E10+; Firefox52+; Edge89+; Safari11+; Chrome57+

Interface :

• Communication Interface : 1

  • RJ-45, 10/ 100 Mbps self-adaptive Ethernet port

• Audio 1/0 : N/A

• Alarm 1/0 : N/A

• Built-In Mic : Yes

• Built-In Speaker : Yes

• Reset Button : Yes

• On-board storage :

  • Support microSD/ micro SDHC/ micro SDXC card

    • Up to 512 GB

• Additional interfaces : N/A

General :

• Web Client Language :

  • 3 languages : Simple Chinese/ English/ Vietnamese

• Operating Temperature : -30℃~60℃ (No turning on the light)

• Operating Humidity : Humidity 95% or less (no condensation)

• Storage Temperature : -30°C-60°C

• Storage Humidity : Humidity 95% or less (no condensation)

• Power Supply    : DC12V ±25%

• Protection :

  • Surge protection 2000V

  • Lightning proof (ESD) 6000V

  • IP67

• Boundary Dimensions : 164(L) x 66W) x 73(H)mm

• Package Dimensions : 215(L) x 95(W) x 120(H)mm

• Gross Weight : 0.46kg

• Net Weight : 0.26Kg
