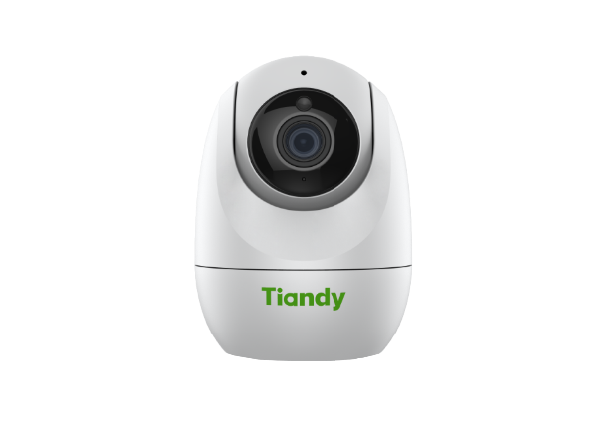

TIANDY IP Camera PTZ Indoor 2MP (1080P) TC-H2

TIANDY IP Camera PTZ Indoor 2MP (1080P) TC-H2

Camera :

• Image Sensor : 1/3"CMOS

• Min. Illumination :

  • Color : 0.02Lux@(F2.0,AGC ON)

  • B/W : 0Lux with IR

• Shutter Time : 1s~1/100000s

• Day&Night : IR-cut filter with auto Switch (ICR)

• Smart IR : Yes

• WDR : DWDR

• S/N : >38dB

• Angle Adjustment : 0-350°; -25-90°

Lens :

• Lens Type : Fixed focal lens

• Focal Length : 4mm

• Lens Mount : M12

• Aperture Range : F2.0

• Aperture Type : Fixed

• Field of View : 75.1°(H); 41.1°(V); 87.3°(D)

• DORI Distance :

  • Detect : 59.3m

  • Observe : 23.5m

  • Recognize : 11.9m

  • Identify : 5.9m

Pan&Tilt :

• Pan Speed : 45°/s

• Tilt Speed : 30°/s

• Preset : 255

Illuminator :

• IR LEDs : 4

• IR Distance : Up to 15m

• Wavelength : 850nm

• White LEDs : 1

• Whitelight Distance : 10m

Compression Standard :

• Video Compression :

  • S+265/H.265/H.264B/H.264M/H.264H

• Video Bit Rate : 32k~4Mbps

• Audio Compression : G.711A/G.711U

• Audio Sampling Rate : 8kHz/16kHz

Image :

• Max. Resolution : 2MP,1920×1080@30fps

• Main Stream :

  • PAL : 25fps(1920×1080, 1280×720, 704×576)

  • NTSC : 30fps(1920×1080, 1280×720, 704×480)

• Sub Stream :

  • PAL : 25fps(704×576, 704×288, 352×288, 640×360)

  • NTSC : 25fps(704×480, 704×240, 352×240, 640×360)

• BLC : Yes

• HLC : Yes

• AGC : Yes

• 3D DNR : Yes

• White Balance :

  • Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp

  • Daylight Lamp/Filament Lamp/Lock White Balance

• OSD : Overlay of additional characters in 1 regions, 1 line,
        with a maximum of 48 characters or 16 Chinese characters per
        region; 16*16/32*32/48*48; Lattice

• Privacy Mask : 4 black static areas

• Defog : Yes

Feature :

• Exceptions Alarm :

  • Disk Full

  • Disk R/W Error

  • IP Address Conflict

  • MAC Address Conflict

• Linkage Method :

  • Trigger Sound

  • Trigger Warmlight

  • Trigger Recording

  • Trigger Capture

• Video Analytics : Smart Alarm

• Auto-Tracking : Yes

Network :

• Protocols :

  • RTSP; HTTP; TCP; UDP; ICMP; DHCP;

  • DNS; NTP; IPv4; SSH; Unicast; FTP

• System Compatibility :

  • ONVIF(Profile S/T) ; SDK; CGI; Milestone

• Remote Connection : ≤2

• Client : Easy7 VMS

• Mobile Client : EasyLive Plus

• Web : IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+

Wi-Fi :

• Transmission Distance :

  • Up tp 30m( based on actual environment)

• Wireless Standard : IEEE802.11b/ 802.11g/802.11n

• Frequency Range : 2.4 GHz ~ 2.4835 GHz

• Channel Bandwidth : 20/40MHz

• Wi-Fi Security : WPA-PSK/WPA2-PSK

Interface :

• Communication Interface : 1× RJ-45 (10/100 Base-T)

• Built-in Mic : 1×Built-in Mic

• Built-in Speaker : 1×Built-in Loudspeaker

• Reset Button : Yes

• On-board Storage :

  • Support microSD/microSDHC/microSDXC card,up to 256GB

General :

• Web Client Language :

  • 3 languages : Simple Chinese/English/Tiếng Việt

• Operating Temperature : -10℃-45℃(14℉~113℉)

• Operating Humidity : ≤95%RH

• Storage Temperature : -10℃-45℃(14℉~113℉)

• Storage Humidity : 10%~95%RH(non-condensing)

• Power Supply : DC5V±5% USB type-C,Max.5W

• Protection : Surge500V; ESD6000V

• Boundary Dimensions : 80(L)80(W)113(H)mm

• Package Dimensions : 97(L)97(W)165(H)mm

• GrossWeight : 0.37kg
