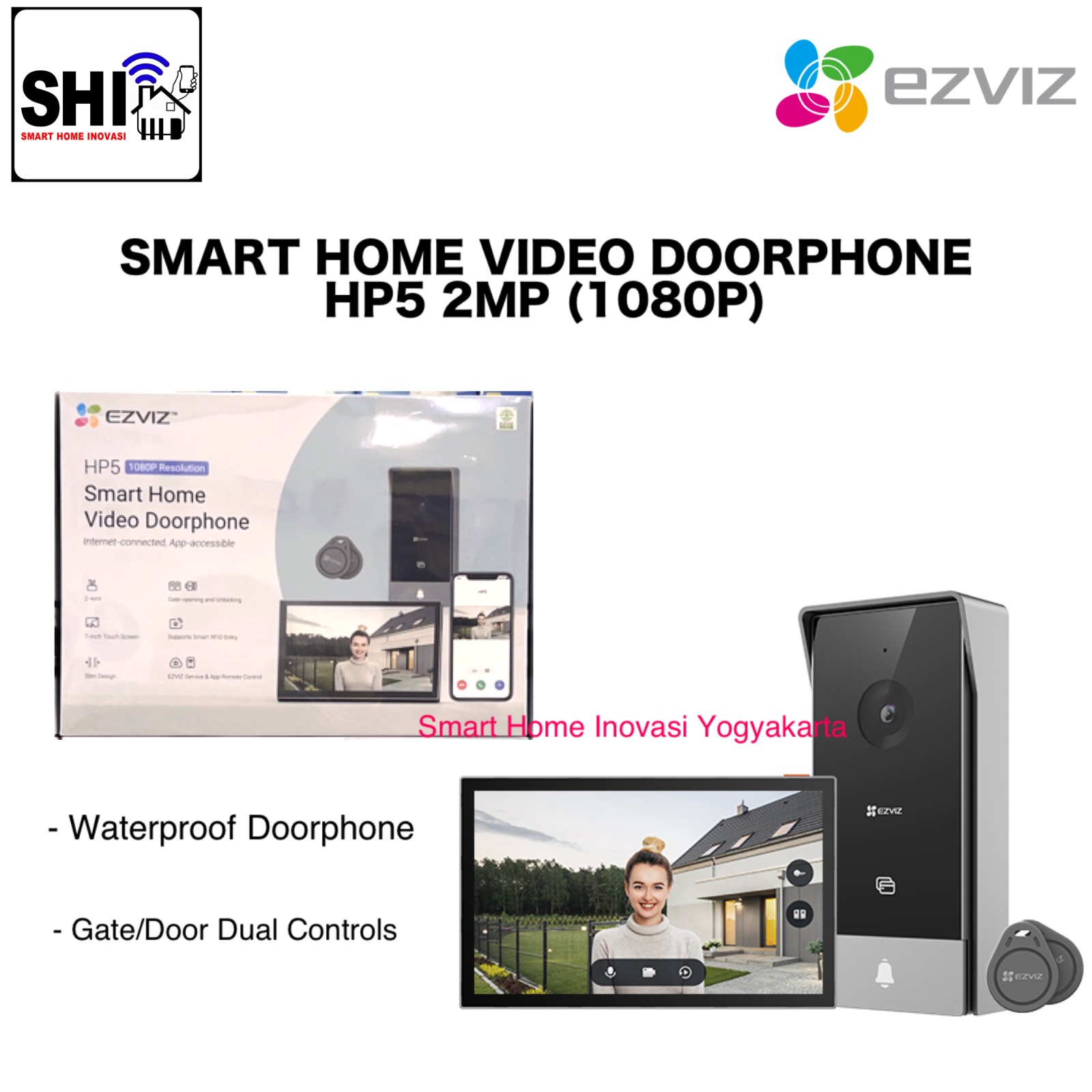

EZVIZ Smart Home Video Doorphone HP5 2MP (1080P)

EZVIZ Smart Home Video Doorphone HP5 2MP (1080P)

• Model : CS-HP5-R100-1W2TFC

• Outdoor Doorbell

• Image Sensor : 1/2.7" Progressive Scan CMOS

  • (Supports low light sensitivity)

• Lens : 2.0 mm @ F1.6,viewing angle: 134° (Diagonal)

• Day & Night IR-cut filter with auto-switching,

  • 850 nm infrared light × 2 (max. 6m)

• Max. Resolution : 1920 × 1080 (1080p)

• DNR : 2D / 3D DNR

• Video Compression : H.265 / H.264

• Frame Rate Max: 15fps

  • Self-Adaptive during network transmission

• Connection and Function

• Connection Method :

  • Wired connection (2-Wired, capable with 4-Wired)

  • Digital signal transmission

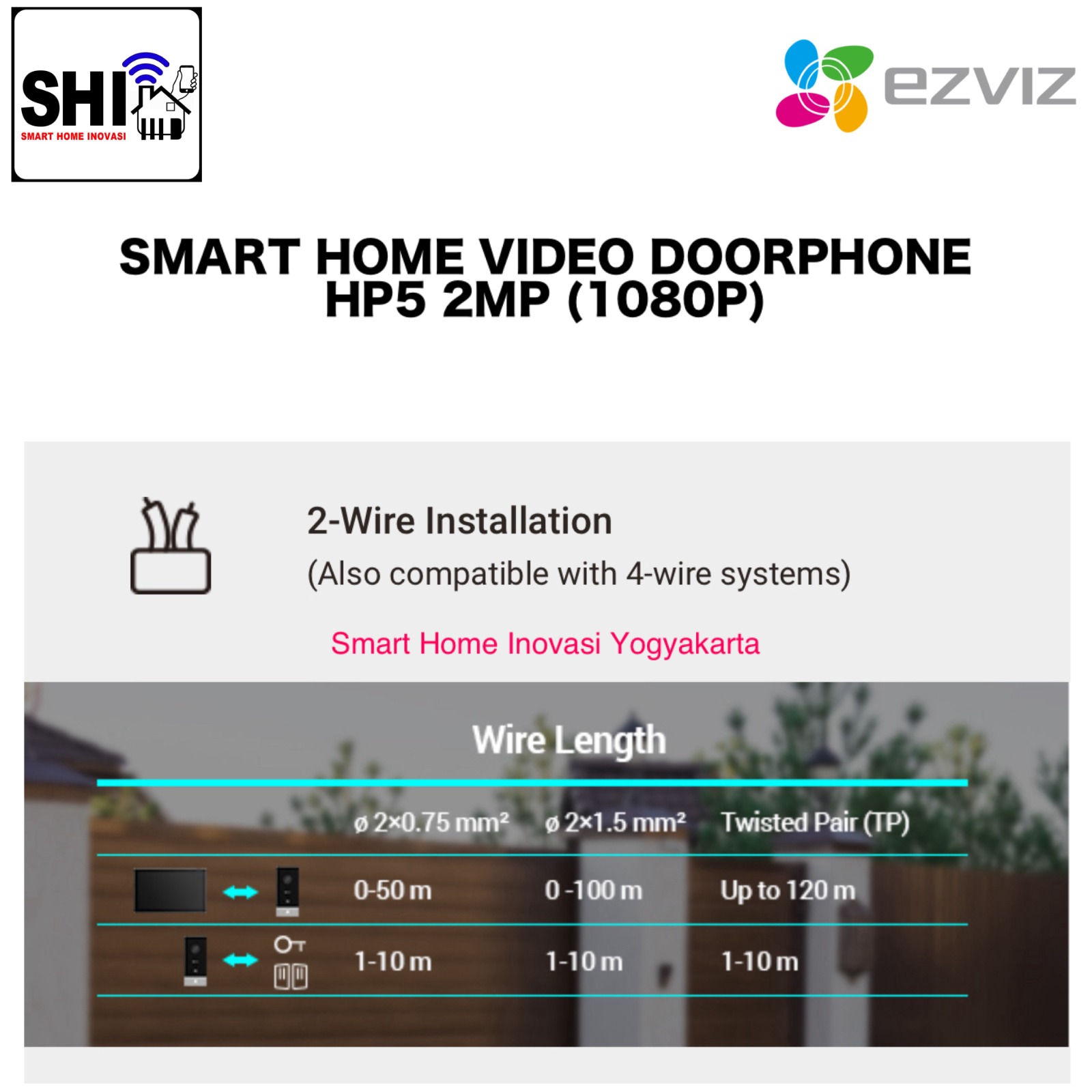

• Transmission Distance :

  • Φ 2 x 0.75mm² , max. 50m Φ 2 x 1.5mm² ,

  • max. 100m Twisted pair, max. 120m

• Open the door (Gate) : Support 2 wiring ports. 1-10m distance.

  • The intercom panel provides a "dry"-contact connection,
          without an electric current, to connect to the button for
          automated gate, gate breaking capacity: 12V / 2A

• Unlock (Electric strike plate) : Support 2 wiring ports. 1-10m distance.

  • The electric strike plate or lock that you order must have a
          mechanical memory

  • The power supply to the electric strike plate or lock must not
          exceed 12V / 1.1A, otherwise should do as user manual.

• Door Open Methods :

  • RFID badge unlock (CPU card × 2 pcs)

  • App remote unlock

  • Indoor display unlock

• Outdoor Doorbell Interface

  • Audio Input Built-in high-sensitivity microphone

  • Audio Output Built-in high-power speaker

  • Doorbell Button 1 doorbell button (Can be set to become illuminated or not).

  • Terminal Two wiring ports to connect screen.

    • Two wiring ports to connect gate.

    • Two wiring ports to connect electric strike plate.

• Functions

  • Tamper Alarm Supports

  • Video Intercom Long-distance video two-way talk

• General

  • Operation Conditions :

    • -30°C to 60°C

    • Humidity 95% or less (non-condensing)

• IP Grade : Waterproof, with shield cover

• Size : 153 × 70.4 × 22.5 mm (7.02 × 2.77 × 0.89 inch)

• Interior Display

  • Display size 7” touch screen

  • Resolution 1024 × 600

  • Audio Input Interface :

    • Built-in high-sensitivity microphone

  • Audio Output Interface : Built-in high-power speaker

  • Button Screen On / Off Button

  • Terminal Two wiring ports to connect 1st outdoor doorbell.

  • Storage Supports microSD card up to 512 GB

    • Supports EZVIZ Cloud storage

• Network Parameters

  • Interface Protocol EZVIZ Cloud Proprietary Protocol

  • Protocol EZVIZ Cloud Proprietary Protocol

  • Protocol EZVIZ Connect Protocol

• Wi-Fi Parameters

  • Wi-Fi Standard : IEEE802.11b, 802.11g, 802.11n, 802.11ac

  • Frequency Range :

    • 2.4G : 2.4 GHz ~ 2.4835 GHz

    • 5G : 5.15 GHz ~ 5.25 GHz

  • Channel Bandwidth Supports 20MHz

  • Security :

    • 64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK

  • Transmission Rate :

    • 11b : 11Mbps

    • 11g : 54Mbps

    • 11n : 150Mbps

    • 11ac : 433.3Mbps

  • Function :

    • Multiple ringtones Up to 20 ringtones

    • Live view, playback, two-way talk, video call

• General

  • Operation Conditions :

    • -10°C to 45°C

    • Humidity 95% or less (non-condensing)

  • Size 180 × 111 × 15 mm (7.09 × 4.37 × 0.59 inch)

  • Power Supply :

    • DC 24V 1.5A power supply, adaptor (100-240Vac)

  • Power Consumption : 8W, Max. 24W

• Net Weight : 639g (22.54oz)

• Weight With Package : 1505g (53.09 oz)

In the Box :

• Monitor

• Wall Bracket for Monitor

• Power Adapter for Monitor

• Intercom Panel

• Drill Template for Monitor

• Drill Template for Intercom Panel

• Name Card (×2)

• Screwdriver

• Badges (×2)

• Screw Kit (×2)

• Wires and Wire Connectors

• DC 24V Power Supply Jack Connector Cable

• Regulatory Information (×2)

• Quick Start Guide

Certifications : CE / REACH / WEEE / RoHS
