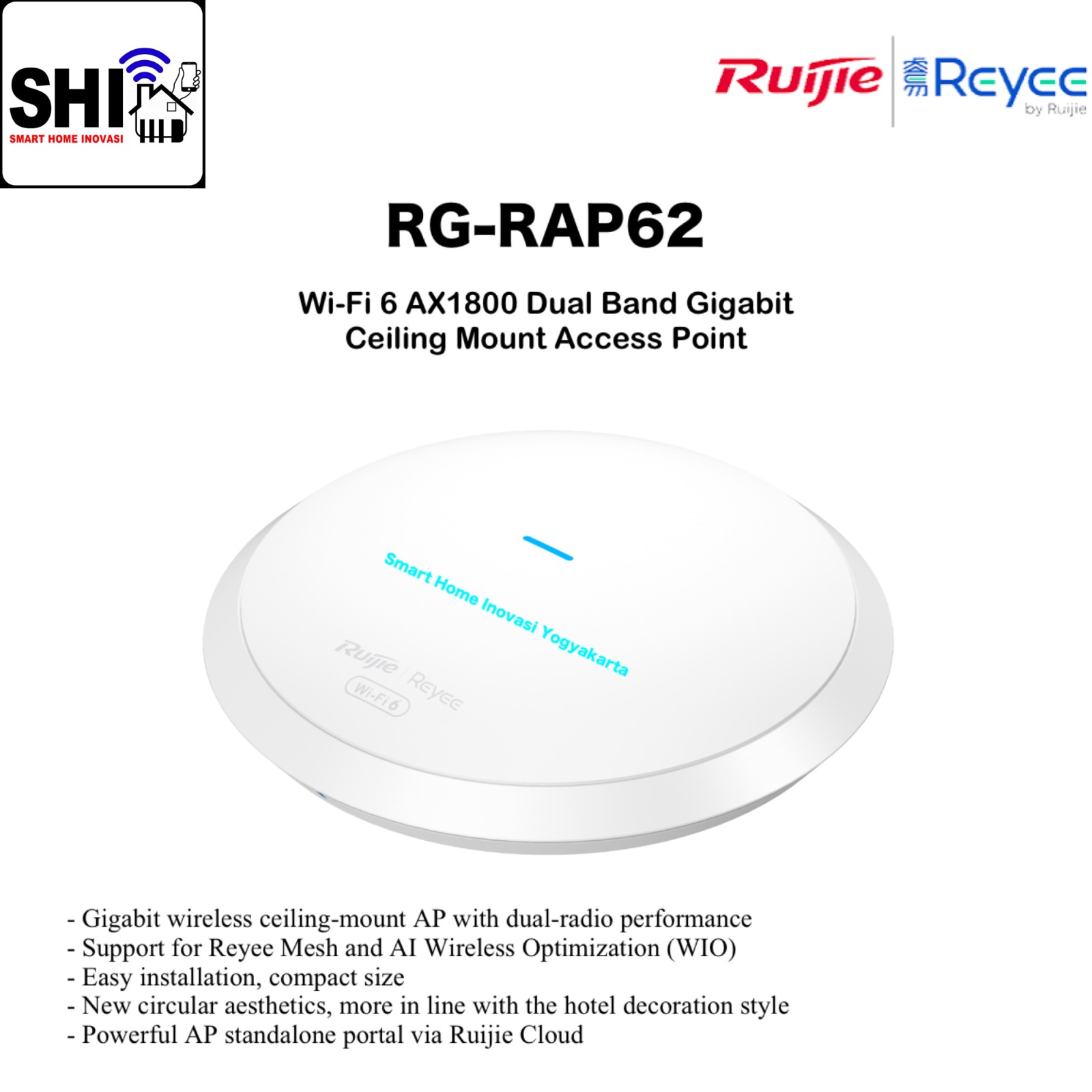

RUIJIE REYEE RG-RAP62, Wi-fi 6 AX1800 Dual Band Gigabit Ceiling Mount Access Point

RUIJIE REYEE RG-RAP62, Wi-fi 6 AX1800 Dual Band Gigabit Ceiling Mount Access Point

Product Information :

• Product Type : Ceiling AP

Hardware Specifications :

• Wi-Fi Radio :

  • Radio design

    • Dual-radio :

    • 4 spatial streams :

      • 2.4 GHz: 2 x 2, MU-MIMO

      • 5 GHz: 2 x 2, MU-MIMO

  • Maximum wireless data rate : 1774 Mbps

  • 6 GHz wireless data rate : No

  • 5 GHz wireless data rate : 1201 Mbps

  • 2.4 GHz wireless data rate : 573 Mbps

• Antenna :

  • 2.4 GHz : 2 built-in omnidirectional antennas

  • 5 GHz : 3 built-in omnidirectional antennas

• Dimensions and Weight :

  • Product dimensions (diameter x height) :

    • Ø175mm x 39mm (Ø6.89 in. x 1.54 in.)

      • (Excluding the mounting bracket)

  • Color : White

  • Weight : ≤ 0.4 kg (0.88 lbs) (without packaging materials)

• Port Specifications :

  • Number of 10/100/1000BASE-T ports : 1

• Power Supply and Consumption :

  • Power supply :

    • DC power adapter

    • PoE/PoE+

    • Note: If both the DC power adapter and PoE/PoE+ are available
            for power supply, the DC power adapter is preferred.

  • Local power supply :

    • Yes, one DC power connector (12 V, 1.5 A)

  • Dimensions of the DC connector :

    • Outer diameter: 5.5 mm (0.22 in.)

    • Inner diameter: 2.1 mm (0.08 in.)

    • Length: 10 mm (0.39 in.)

  • PoE budget : No

  • Maximum power consumption : 12.95 W

• Environment and Reliability :

  • Operating temperature : 0°C to 40°C (32°F to 104°F)

  • Mounting options : Ceiling/Wall

  • IP rating : IP41

Software Specifications :

• WLAN :

  • Maximum number of associated wireless clients :

    • 64 (2.4 GHz)

    • 256 (5 GHz)

    • 256 (2.4 GHz and 5 GHz enabled)

  • Maximum number of devices that can be managed : 300

• IPv6 : Yes
