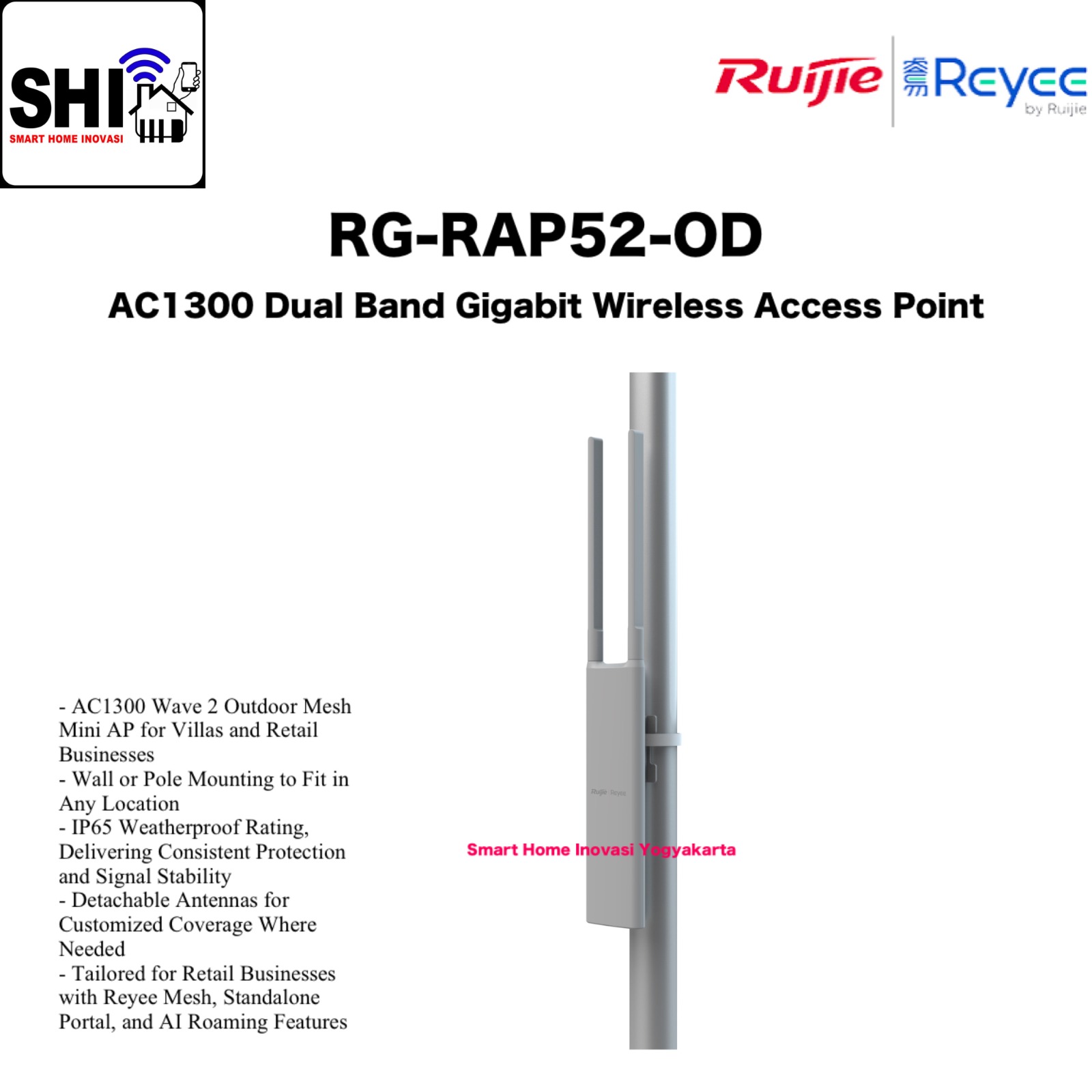

RUIJIE REYEE RG-RAP52-OD, AC1300 Dual Band Gigabit Wireless Access Point

RUIJIE REYEE RG-RAP52-OD, AC1300 Dual Band Gigabit Wireless Access Point

Product Information :

• Product Type : Outdoor AP

Hardware Specifications :

• Wi-Fi Radio

  • Radio design :

    • Dual-radio

    • 4 spatial streams

      • 2.4 GHz: 2 x 2, MIMO

      • 5 GHz: 2 x 2, MIMO

  • Maximum wireless data rate : 1266 Mbps

  • 6 GHz wireless data rate : No

  • 5 GHz wireless data rate : 866 Mbps

  • 2.4 GHz wireless data rate : 400 Mbps

• Antenna :

  • Integrated 2.4 GHz and 5 GHz :

    • 2 external omnidirectional antennas

• Dimensions and Weight :

  • Product dimensions (W x D x H) :

    • 50 mm x 35.7 mm x 220 mm (1.97 in. x 1.41 in. x 8.66 in.)

      • (excluding the mounting bracket)

    • Antenna size : 185 mm (7.28 in.)

  • Color : White

  • Weight : ≤ 0.4 kg (0.88 lbs.) (without packaging materials)

• Port Specifications :

  • Number of 10/100/1000BASE-T ports : 1

• Power Supply and Consumption :

  • Power supply : PoE/PoE+

  • Local power supply : No

  • Dimensions of the DC connector : No

  • PoE budget : No

  • Maximum power consumption : 13.5 W

• Environment and Reliability :

  • Operating temperature :

    • –30°C to +65°C (–22°F to +149°F)

  • Mounting options : Wall/Pole

  • IP rating : IP65

Software Specifications :

• WLAN

  • Maximum number of associated wireless clients :

    • 64 (2.4 GHz)

    • 110 (5 GHz)

    • 110 (2.4 GHz and 5 GHz enabled)

  • Maximum number of devices that can be managed : 300
