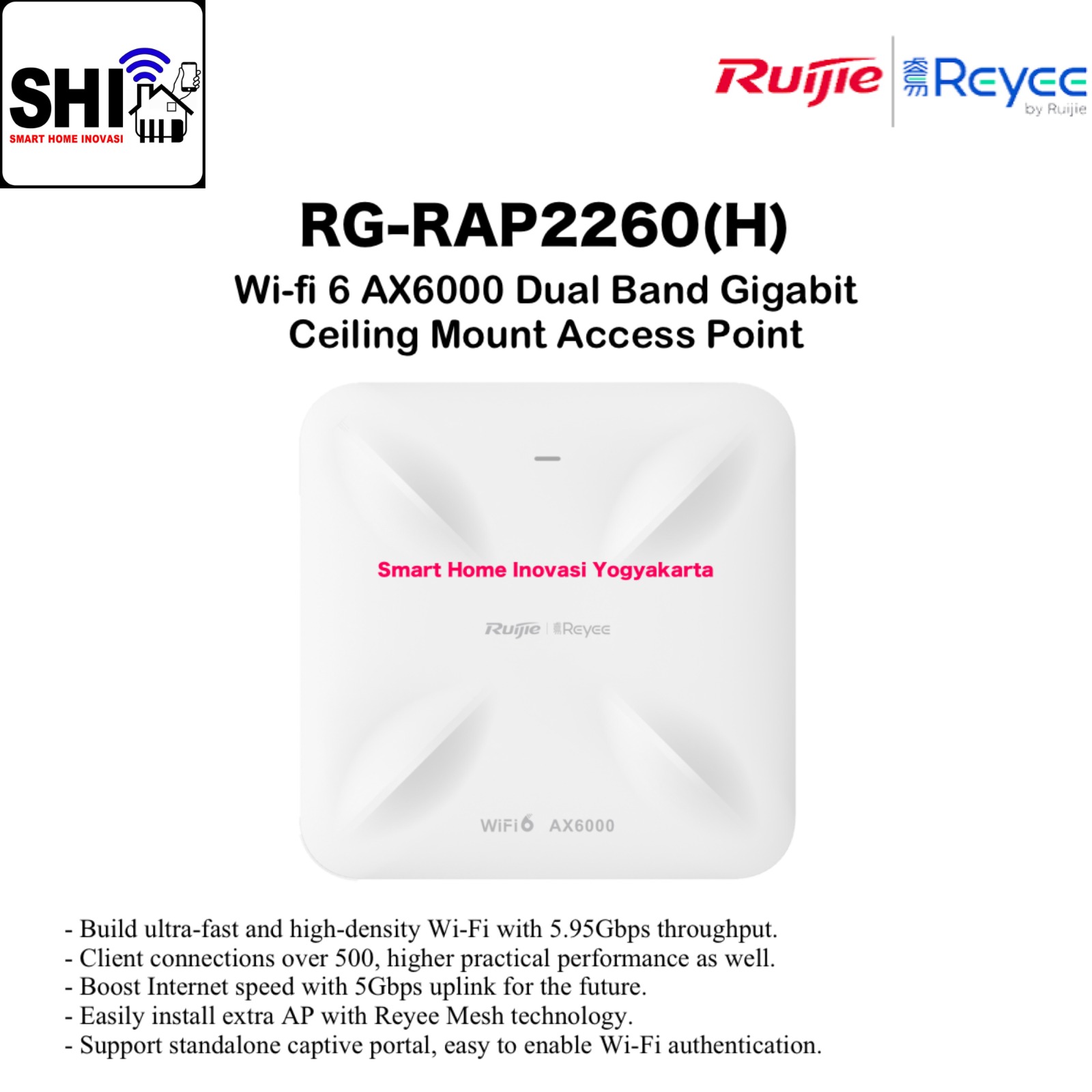

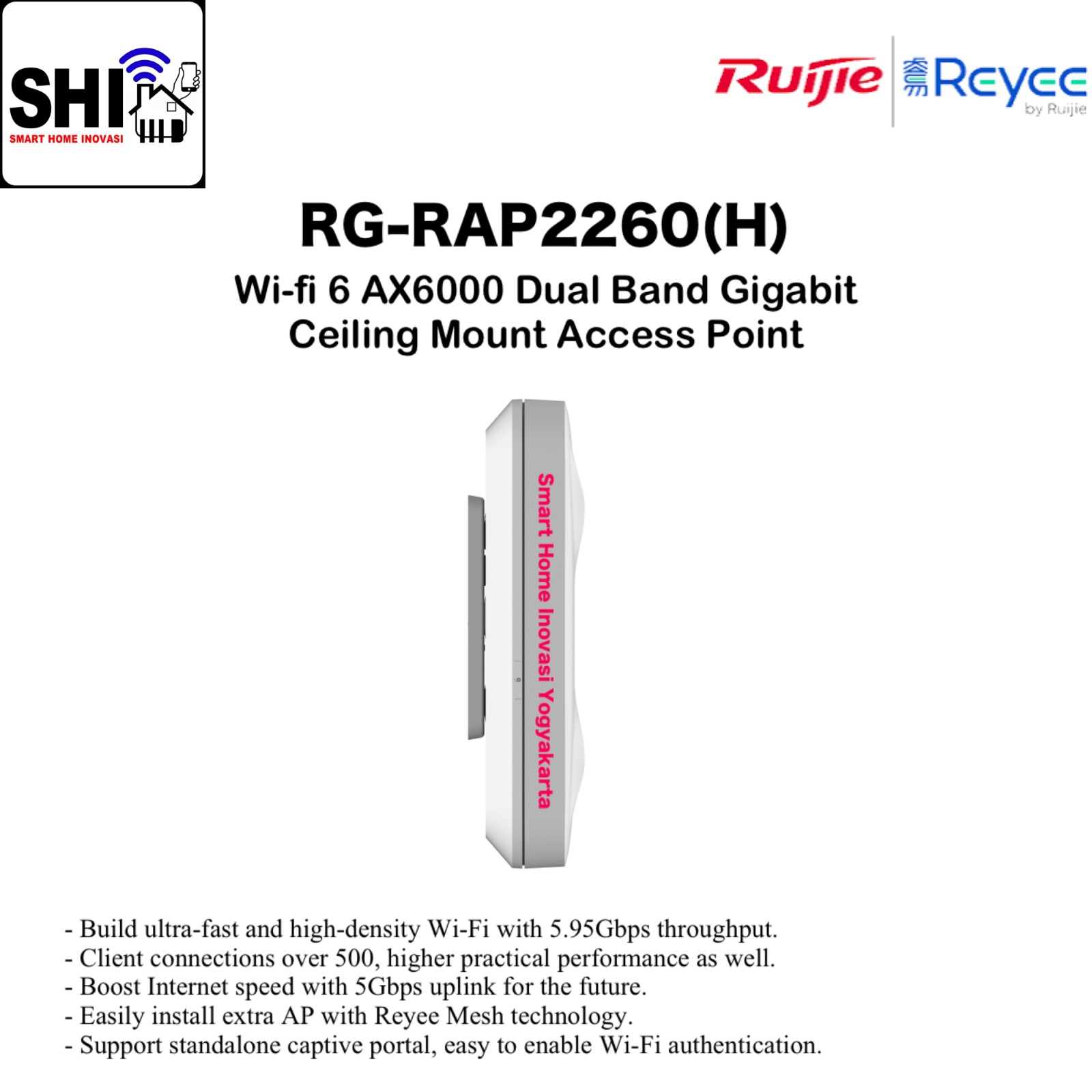

RUIJIE REYEE RG-RAP2260(H), Wi-fi 6 AX6000 Dual Band Gigabit Ceiling Mount Access Point
Rp1.00
RUIJIE REYEE RG-RAP2260(H), Wi-fi 6 AX6000 Dual Band Gigabit Ceiling Mount Access Point
Product Informations :
Product Type : Ceiling AP
Hardware Specifications :
Wi-Fi Radio :
Radio design :
Dual-radio
8 spatial streams :
2.4 GHz: 4 x 4, MU-MIMO
5 GHz: 4 x 4, MU-MIMO
Maximum wireless data rate : 5950 Mbps
6 GHz wireless data rate : No
5 GHz wireless data rate : 4803 Mbps
2.4 GHz wireless data rate : 1147 Mbps
Antenna :
2.4 GHz : 4 built-in omnidirectional antennas
5 GHz : 4 built-in omnidirectional antennas
Dimensions and Weight :
Product dimensions (W x D x H) :
230 mm x 230 mm x 49.5 mm (9.06 in. x 9.06 in. x 1.95 in.)
(excluding the mounting bracket)
Color : White
Weight : ≤ 1.36 kg (3.00 lbs.) (without packaging materials)
Port Specifications
Number of 10/100/1000/2500BASE-T ports : 2
Power Supply and Consumption :
Power supply :
DC power adapter
PoE+/PoE++
Note : If both the DC power adapter and PoE+/PoE++ are available
for power supply, the DC power adapter is preferred.
Local power supply : Yes, one DC power connector (48 V, 1 A)
Dimensions of the DC connector :
Outer diameter: 5.5 mm (0.22 in.)
Inner diameter: 2.1 mm (0.08 in.)
Depth: 10 mm (0.39 in.)
PoE budget : No
Maximum power consumption : 40 W
Environment and Reliability :
Operating temperature : 0°C to 40°C (32°F to 104°F)
Mounting options : Ceiling/Wall
IP rating : No
Software Specifications :
WLAN
Maximum number of associated wireless clients :
64 (2.4 GHz)
512 (5 GHz)
512 (2.4 GHz and 5 GHz enabled)
Maximum number of devices that can be managed :300
