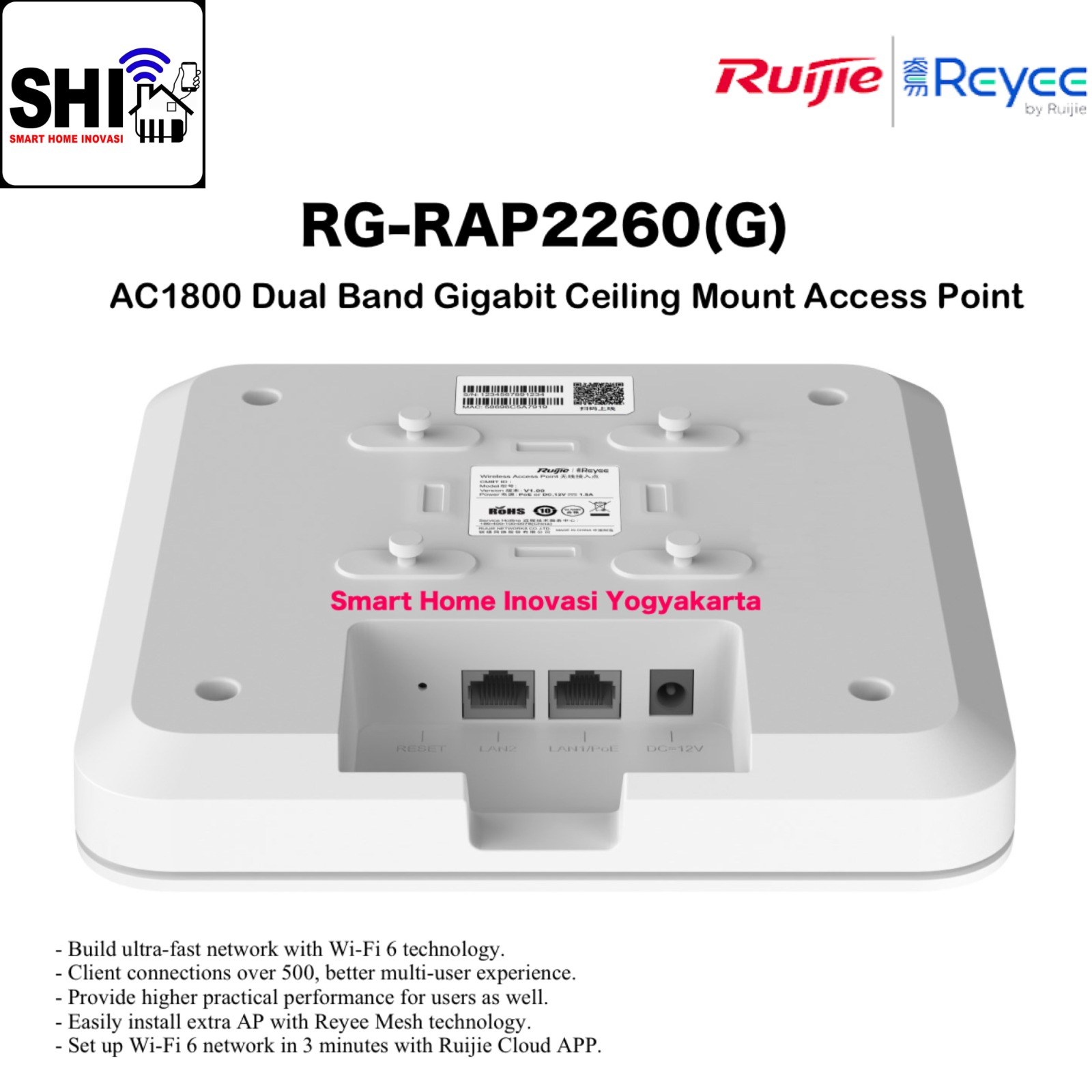

RUIJIE REYEE RG-RAP2260(G), AC1800 Dual Band Gigabit Ceiling Mount Access Point

RUIJIE REYEE RG-RAP2260(G), AC1800 Dual Band Gigabit Ceiling Mount Access Point

Product Information :

• Product Type : Ceiling AP

Hardware Specifications :

• Wi-Fi Radio

  • Radio design :

    • Dual-radio

    • 4 spatial streams

      • 2.4 GHz : 2 x 2, MU-MIMO

      • 5 GHz : 2 x 2, MU-MIMO

• Maximum wireless data rate : 1774 Mbps

• 6 GHz wireless data rate : No

• 5 GHz wireless data rate : 1201 Mbps

• 2.4 GHz wireless data rate : 573 Mbps

• Antenna :

  • 2.4 GHz : 2 built-in omnidirectional antennas

  • 5 GHz : 2 built-in omnidirectional antennas

• Dimensions and Weight :

  • Product dimensions (W x D x H) :

    • 194 mm x 194 mm x 35 mm (7.64 in. x 7.64 in. x 1.38 in.)

      • (excluding the mounting bracket)

  • Color : White

  • Weight : ≤ 0.55 kg (1.21 lbs.) (without packaging materials)

• Port Specifications :

  • Number of 10/100/1000BASE-T ports : 2

• Power Supply and Consumption :

  • Power supply :

    • DC power adapter

    • PoE/PoE+

    • Note : If both the DC power adapter and PoE/PoE+ are available
            for power supply, the DC power adapter is preferred.

  • Local power supply : Yes, one DC power connector (12 V, 1.5 A)

  • Dimensions of the DC connector :

    • Outer diameter: 5.5 mm (0.22 in.)

    • Inner diameter: 2.1 mm (0.08 in.)

    • Depth: 10 mm (0.39 in.)

  • PoE budget : No

  • Maximum power consumption : 15.5 W

• Environment and Reliability :

  • Operating temperature : 0°C to 40°C (32°F to 104°F)

  • Mounting options : Ceiling/Wall

  • IP rating : IP41

Software Specifications :

• WLAN

• Maximum number of associated wireless clients :

  • 64 (2.4 GHz)

  • 256 (5 GHz)

  • 256 (2.4 GHz and 5 GHz enabled)

• Maximum number of devices that can be managed : 300
