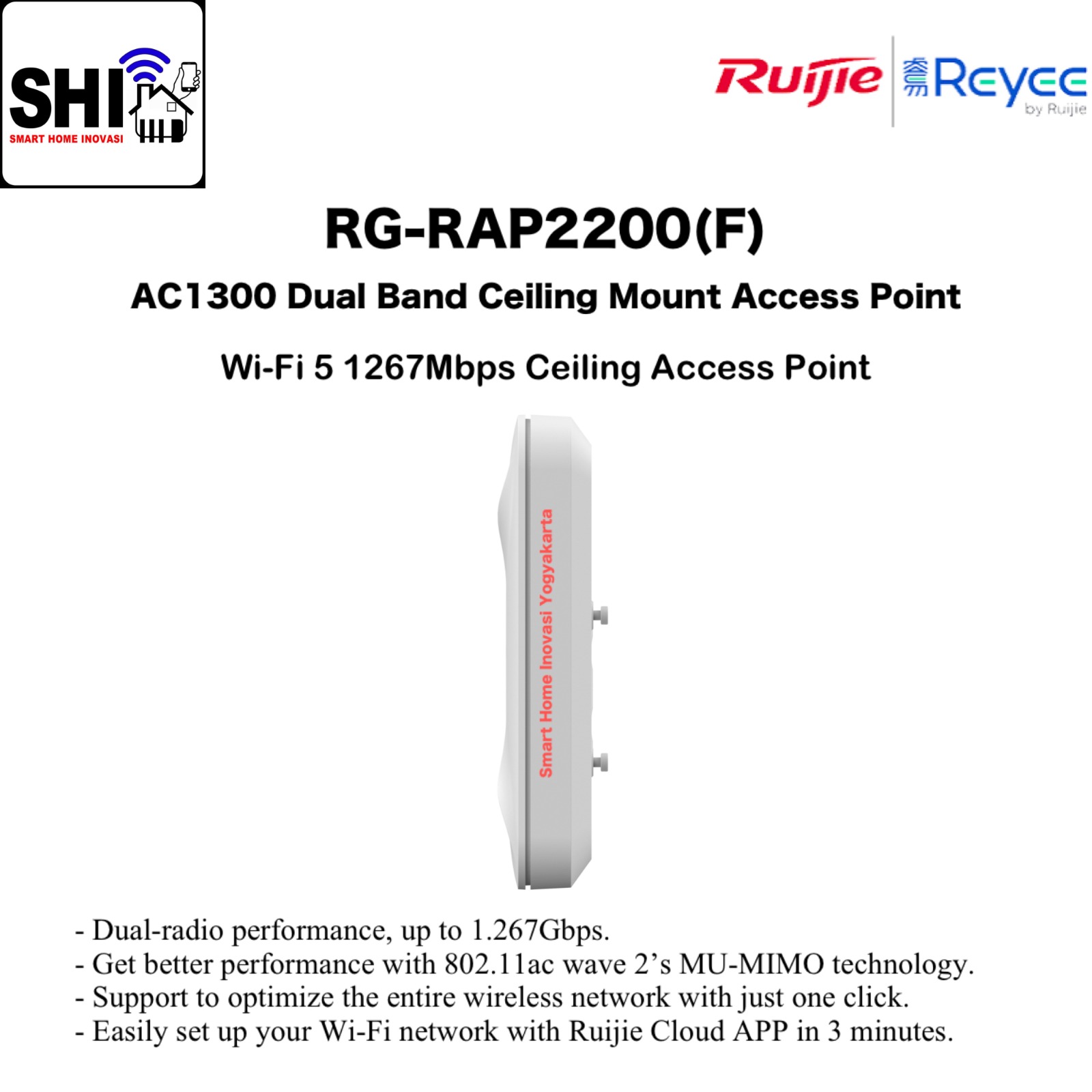

RUIJIE REYEE RG-RAP2200(F), Wi-Fi 5 1267 Mbps AC1300 Dual Band Ceiling Access Point
AC1300 Dual Band Ceiling Mount
Rp1.00
RUIJIE REYEE RG-RAP2200(F), Wi-Fi 5 1267 Mbps AC1300 Dual Band Ceiling Access Point
Product Information :
Product Type
Product Type : Ceiling AP
Hardware Specifications :
Wi-Fi Radio
Radio design :
Dual-radio
4 spatial streams
2.4 GHz: 2 x 2, MIMO
5 GHz: 2 x 2, MIMO
Maximum wireless data rate : 1266 Mbps
6 GHz wireless data rate : No
5 GHz wireless data rate : 866 Mbps
2.4 GHz wireless data rate : 400 Mbps
Antenna
Antenna :
2.4 GHz: 2 built-in omnidirectional antennas
5 GHz: 2 built-in omnidirectional antennas
Dimensions and Weight
Product dimensions (W x D x H) :
194 mm x 194 mm x 35 mm (7.64 in. x 7.64 in. x 1.38 in.)
(excluding the mounting bracket)
Color : White
Weight : ≤ 0.45 kg (0.99 lbs.) (without packaging materials)
Port Specifications :
Number of 10/100BASE-T ports : 2
Power Supply and Consumption
Power supply :
DC power adapter
PoE/PoE+
Note : If both the DC power adapter and PoE/PoE+ are
available for power supply, the DC power adapter is preferred.
Local power supply : Yes, one DC power connector (12 V, 1.5 A)
Dimensions of the DC connector :
Outer diameter: 5.5 mm (0.22 in.)
Inner diameter: 2.1 mm (0.08 in.)
Depth: 10 mm (0.39 in.)
PoE budget : No
Maximum power consumption : 12.95 W
Environment and Reliability :
Operating temperature : 0°C to 40°C (32°F to 104°F)
Mounting options : Ceiling/Wall
IP rating : No
Software Specifications :
WLAN
Maximum number of associated wireless clients :
64 (2.4 GHz)
110 (5 GHz)
110 (2.4 GHz and 5 GHz enabled)
Maximum number of devices that can be managed : 150
Order Information :
Mounting Bracket : 1
Cross Pan Head Screw : 2
Expansion Anchor : 2
Quick Start Guide : 1
Warranty Card : 1
Package Weight : 0.64Kg
Package Dimension (w x d x h) :
197 mm x 197 mm x 63 m
