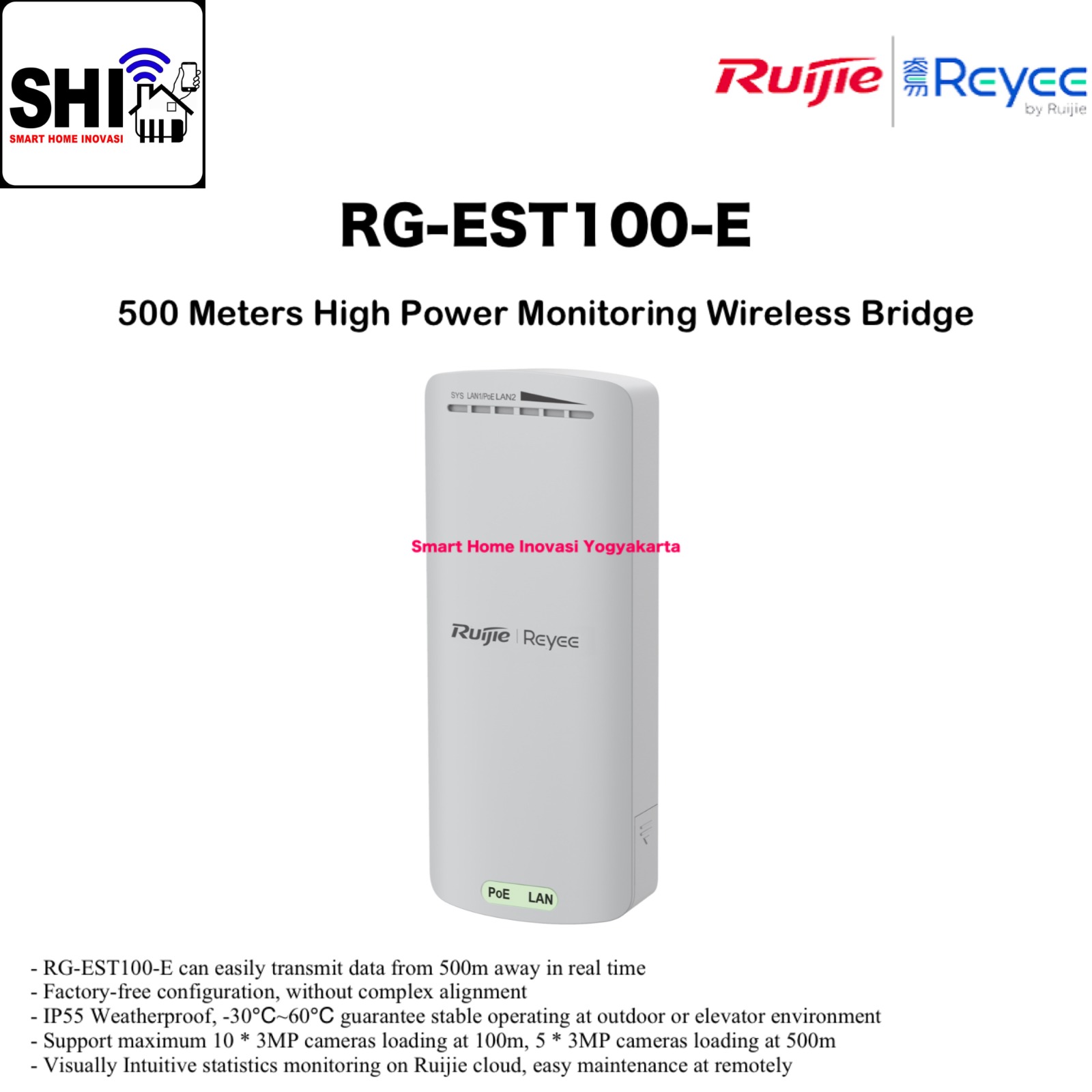

RUIJIE REYEE RG-EST100-E, 500 Meters High Power Monitoring Wireless Bridge

RUIJIE REYEE RG-EST100-E, 500 Meters High Power Monitoring Wireless Bridge

Hardware Specifications :

• Wi-Fi Radio

  • Radio design : Single-radio

  • 2 spatial streams

    •  Radio 1: 2.4 GHz, 2 spatial streams: 2 x 2, MIMO

• 2.4 GHz channel width : Auto/20/40 MHz

• Power Supply and Consumption

  • Number of PoE In ports : 1

• Environment and Reliability :

  • Operating temperature

    • –30°C to +60°C (–22ºF to +140ºF)

  • Operating humidity :

    • 5% RH to 95% RH (non-condensing)

  • MTBF : 400,000 hours (about 45 years)

  • IP rating : IP55

Software Specifications :

• WLAN :

  • Bridge speed test : Yes

•  Network Management and Monitoring

  • SON : Yes

  • AI heatmap : No

  • Restarting devices through Ruijie Reyee App : Yes

  • SNMPv1, v2c, and v3 : No

Bridging Performance :

• 60 Mbps/100 m (328.08 ft.) (HT20)

• 30 Mbps/500 m (0.31 miles) (HT20)

RSSI (dBm) :

• –58 dBm/100 m (328.08 ft.)

• –68 dBm/500 m (0.31 miles)

Throughput & Camera Limits :

• 3MP :

  • 10/100 m (328.08 ft.)

  • 5/500 m (0.31 miles)

• 4 to 5 MP :

  • 6/100 m (328.08 ft.)

  • 3/500 m (0.31 miles)

• 6 to 7 MP :

  • 3/100 m (328.08 ft.)

  • 1/500 m (0.31 miles)

• 7 to 8 MP :

  • 3/100 m (328.08 ft.)

  • 1/500 m (0.31 miles)
