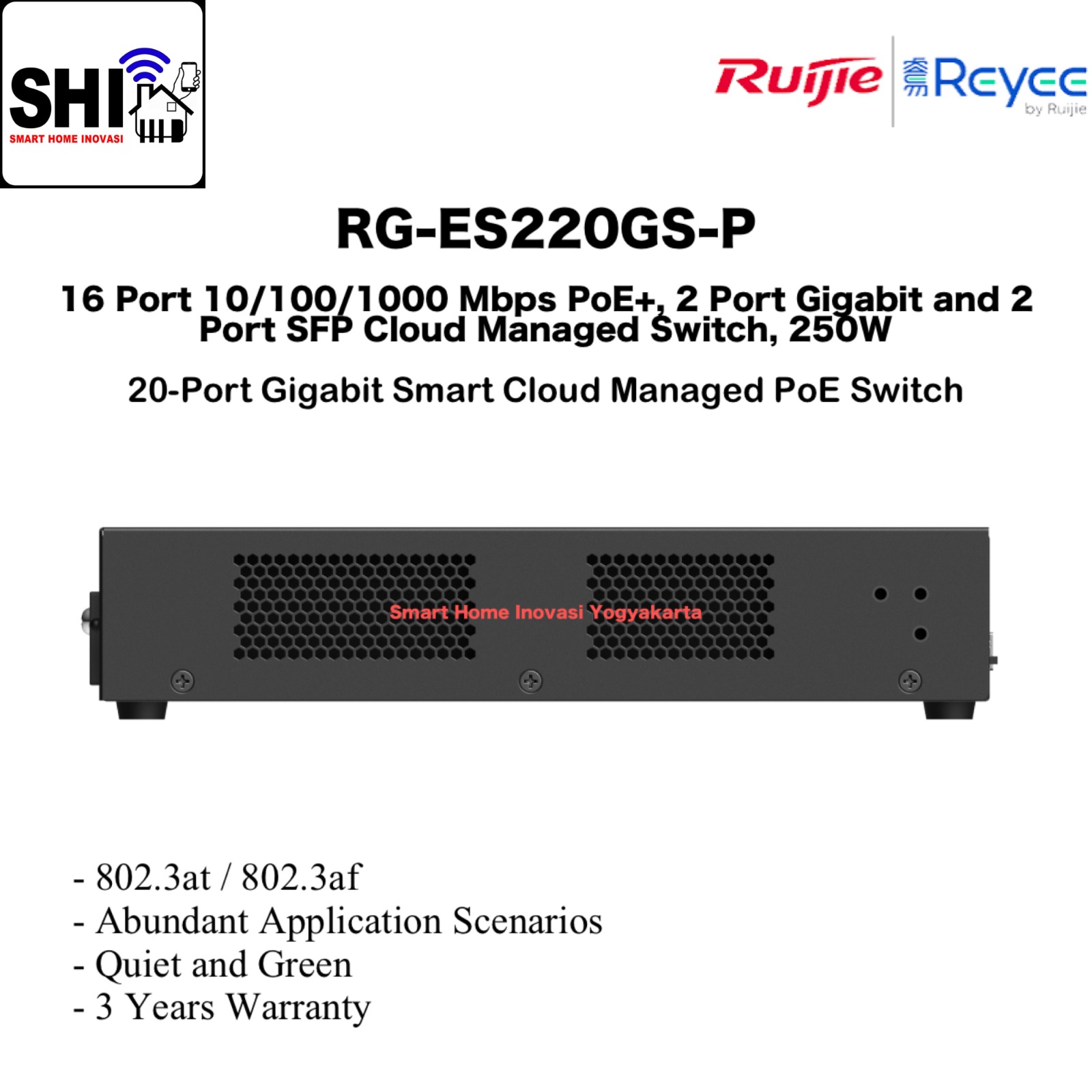

RUIJIE REYEE RG-ES220GS-P, 16 Port 10/100/1000 Mbps PoE+, 2 port Gigabit and 2 Port SFP Cloud Managed Switch, 250W

RUIJIE REYEE RG-ES220GS-P, 16 Port 10/100/1000 Mbps PoE+, 2 port Gigabit and 2 Port SFP Cloud Managed Switch, 250W

Product Information :

• Product Category

  • Product Category : Layer 2

Hardware Specifications :

• Product Information

  • Warranty : 3 years

•  Port Specifications :

  • Total number of RJ45 ports : 18

  • Total number of optical ports : 2

  • Number of 1GE SFP ports : 2

  • Number of 10/100/1000BASE-T ports : 18

• Power Supply and Consumption

  • Number of PoE Out ports : 16

  • Number of PoE/PoE+ Out ports : 16

  • PoE budget : 250 W

  • PoE power pins : 1–2 (+), 3–6 (-)

• System Specifications :

  • Forwarding rate : 29.7 Mpps

  • Switching capacity : 40 Gbps(bit/s)

• Environment and Reliability :

  • Operating temperature : 0°C to 40°C (32°F to 104°F)

Software Specifications :

• Basic Configurations :

  • PoE watchdog : Yes

• Security :

  • Port isolation : Yes

Order Information :

• Device : RG-ES220GS-P

• Power Supply : Power cable

• Quick Start Guide : 1

• Warranty Card : 1

• Accesories : -

• Package Weight : 2.8kg

• Package Dimension (w x d x h) :

  • 300 mm x 223 mm x 43.6 mm
