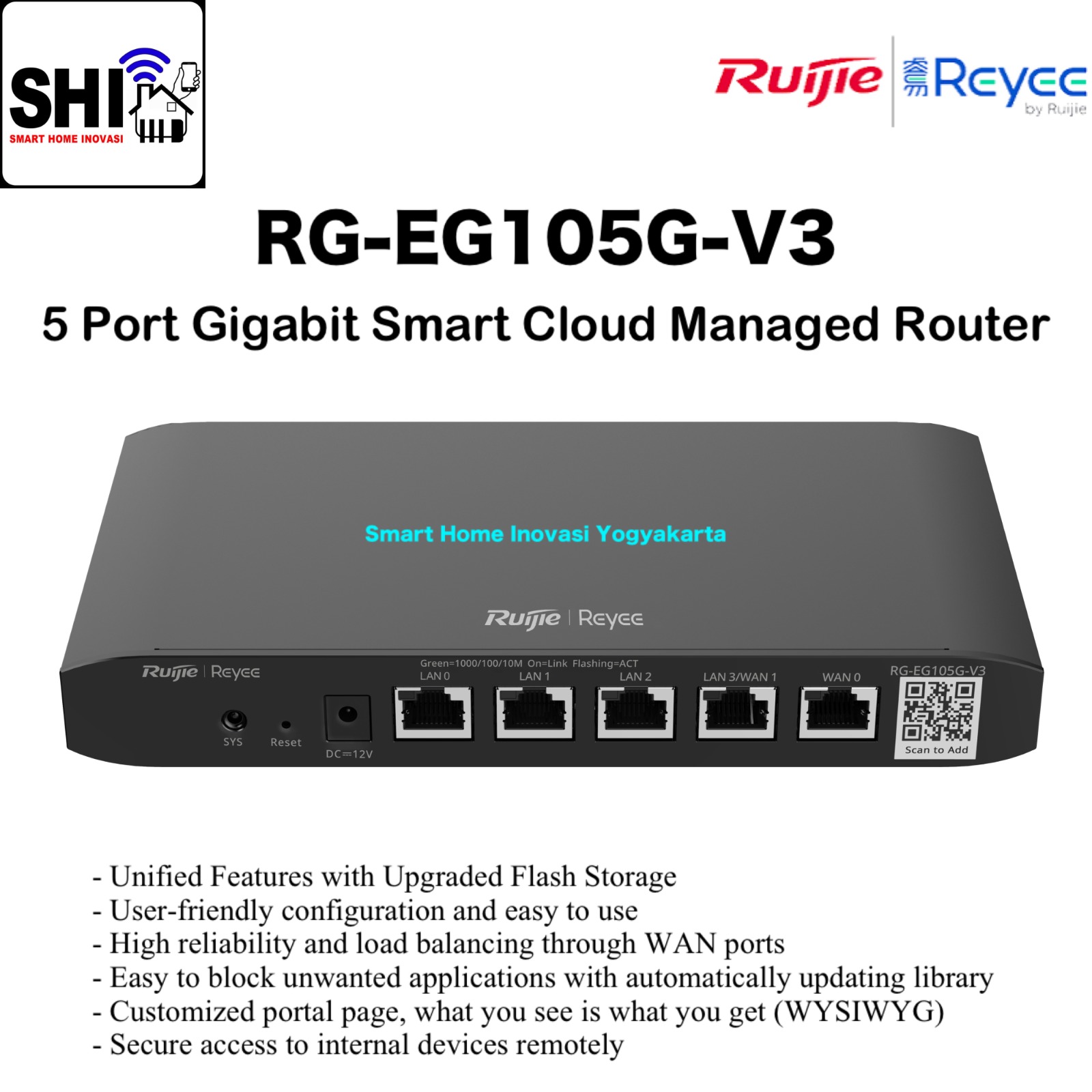

RUIJIE REYEE RG-EG105G-V3, 5 Port Gigabit Smart Cloud Managed Router

RUIJIE REYEE RG-EG105G-V3, 5 Port Gigabit Smart Cloud Managed Router

Overview :

• Model : RG-EG105G V3

• Network Interface WAN Port : 1×10/100/1000 Base-T

• LAN Port : 4×10/100/1000 Base-T

• LAN/WAN Switchable Port : 1×10/100/1000 Base-T

• CPU : Dual Core, 880MHz

• RAM : 128 MB

• Storage : 32 MB Flash

• Throughput :

  • 1000Mbps(Turbo Mode)

  • 600Mbps(Normal Mode)

• Recommended Clients : 100

• Power Supply :

  • Power adapter input : Rated voltage range: 100-240V

  • Maximum voltage range : 90-264V

  • Frequency: 50/60Hz Rated current : 1A

  • Power adapter

• Output: Rated voltage : 12V DC Rated current: 1A

• Max. VLAN : 16

• No. of Devices Managed in Router Mode :

  • 32 (APs/NBS Switches) +128 (ES Switches)

• No. of Devices Managed in AC Mode :

  • 300 (APs/NBS Switches) +128 (ES Switches)

• WAN Load Balancing : Yes

• Captive Portal    : Yes

• PPPoE Server : Yes

• Max PPPoE Active Client : 35

• Smart Flow Control : Yes

• Application Based Speed Limit : Yes

• Key Application Priority : Yes

• User Group Based Speed Limit : Yes

• Power Consumption : <12 W

• Package Dimensions (WxDxH) : 206.5 x 108.5 x 28 mm
