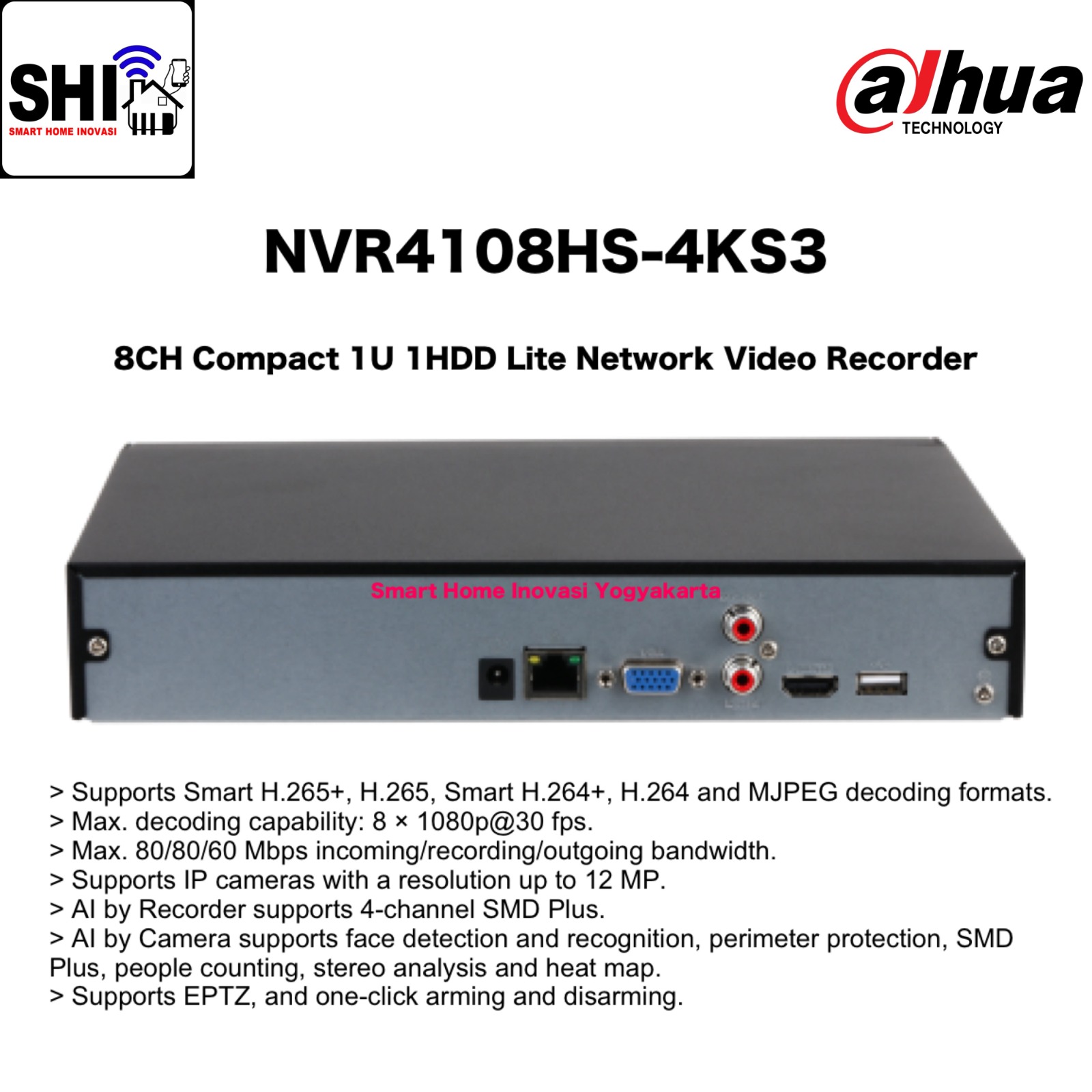

DAHUA NVR 8 Channel DHI-NVR4108HS-4KS3, 8CH Compact 1U 1HDD Lite Network Video Recorder
8CH Compact 1U 1HDD Lite Network Video Recorder
Rp1.00
DAHUA NVR 8 Channel DHI-NVR4108HS-4KS3, 8CH Compact 1U 1HDD Lite Network Video Recorder
System :
Main Processor : Industrial-grade processor
Operating System : Embedded Linux
Operating Interface : Web, Local GUI
AI :
AI by Recorder : SMD Plus
AI by Camera :
Face detection
Face recognition
Perimeter protection
SMD Plus
People counting
Stereo analysis
Heat map
Perimeter Protection :
Perimeter Performance of AI by Camera
Number of Channels : 6 channels
Face Detection :
Face Attributes :
Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Camera
Number of Channels : 6 channels
Face Recognition :
Face Recognition Performance of AI by Camera
Number of Channels : 6 channels
SMD Plus :
SMD Plus by Recorder : 4 channels
Secondary filtering for human and motor vehicle
Reducing false alarms caused by leaves, rain and
lighting condition change
SMD Plus by Camera : 6 channels
Audio and Video :
Access Channel : 8 channels
Network Bandwidth :
80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
Resolution :
12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP;
1080p; 960p; 720p;
D1; CIF; QCIF
Decoding Capability :
AI disabled :
1-channel 12 MP@30 fps
2-channel 8 MP@30 fps
3-channel 5 MP@30 fps
4-channel 4 MP@30 fps
8-channel 1080p@30 fps
AI enabled :
1-channel 12 MP@30 fps
1-channel 8 MP@30 fps
2-channel 5 MP@30 fps
3-channel 4 MP@30 fps
7-channel 1080p@30 fps
Video Output :
1 HDMI, 1 VGA
Simultaneous：
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Heterogeneous：
HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display
Main Screen : 1/4/8/9 Sub Screen : 1/4/8/9
Third-party Camera Access :
ONVIF; Panasonic; Sony; Axis;
Arecont; Pelco; Canon; Hanwha
Compression Standard
Video Compression :
Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression : G.711a; G.711u; PCM; G726
Network :
Network Protocol :
HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP;
DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP;
Alarm Server; P2P; Auto Registration; IP Search
Supports IP camera, DVR, NVS, etc.
Mobile Phone Access : iOS; Android
Interoperability :
ONVIF 22.12 (Profile T; Profile S; Profile G)
CGI
SDK
Browser : Chrome; IE; Safari; Edge; Firefox
Recording Playback :
Multi-channel Playback : Up to 8 channels
Record Mode : General, motion detection; intelligent; alarm
Backup Method : USB device and network
Playback Mode :
Instant playback
General playback
Event playback
Tag playback
Smart playback
Alarm :
General Alarm :
Motion detection
Privacy masking
Video loss
Scene changing
PIR alarm
IPC external alarm
Anomaly Alarm :
Camera disconnection
Storage error
Disk full
IP conflict
MAC conflict
login locked
Cybersecurity exception
Intelligent Alarm :
Face detection
Face recognition
Perimeter protection
SMD Plus
People counting
Stereo analysis
Heat map
Alarm Linkage :
Record
Snapshot
IPC external alarm output
Audio
Buzzer
Log
Preset
E-mail
Port :
Audio Input : 1-channel RCA
Audio Output : 1-channel RCA
Alarm Input : NA (2 channels is optional)
Alarm Output : NA (1-channel 12 V 1 A output is optional)
Disk Interface : 1 SATA port.
Each disk can contain up to 20 TB.
This limit varies depending on the environment temperature.
USB : 2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
HDMI : 1
VGA : 1
Network Port : 1 (10/100 Mbps Ethernet port, RJ-45)
General :
Power Supply : 12 VDC, 2 A
Power Consumption :
Total output of NVR is <10 W(without HDD)
Net Weight : 0.81 kg (1.79 lb)
Gross Weight : 1.38 kg (3.04 lb)
Product Dimensions (W × D × H) :
260.0 mm × 232.5 mm × 47.6 mm(10.24" × 9.15" × 1.87")
Packaging Dimensions (W × D × H) :
334 mm × 89 mm × 314 mm (13.15" × 3.50" × 12.36")
Operating Temperature : –10 °C to +55 °C (14 °F to +131 °F)
Storage Temperature : –20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity : 10%–93% (RH), non-condensing
Installation : Rack or desktop
Certifications :
CE-LVD : EN 62368-1:2014
CE-EMC :
EN 55032:2015+A1:2020
EN IEC 61000-3-2:2019+A1:2021
EN 61000-3-3:2013+A1:2019+A2:2021
EN 55035:2017+A11:2020
EN 50130-4:2011+A1:2014
