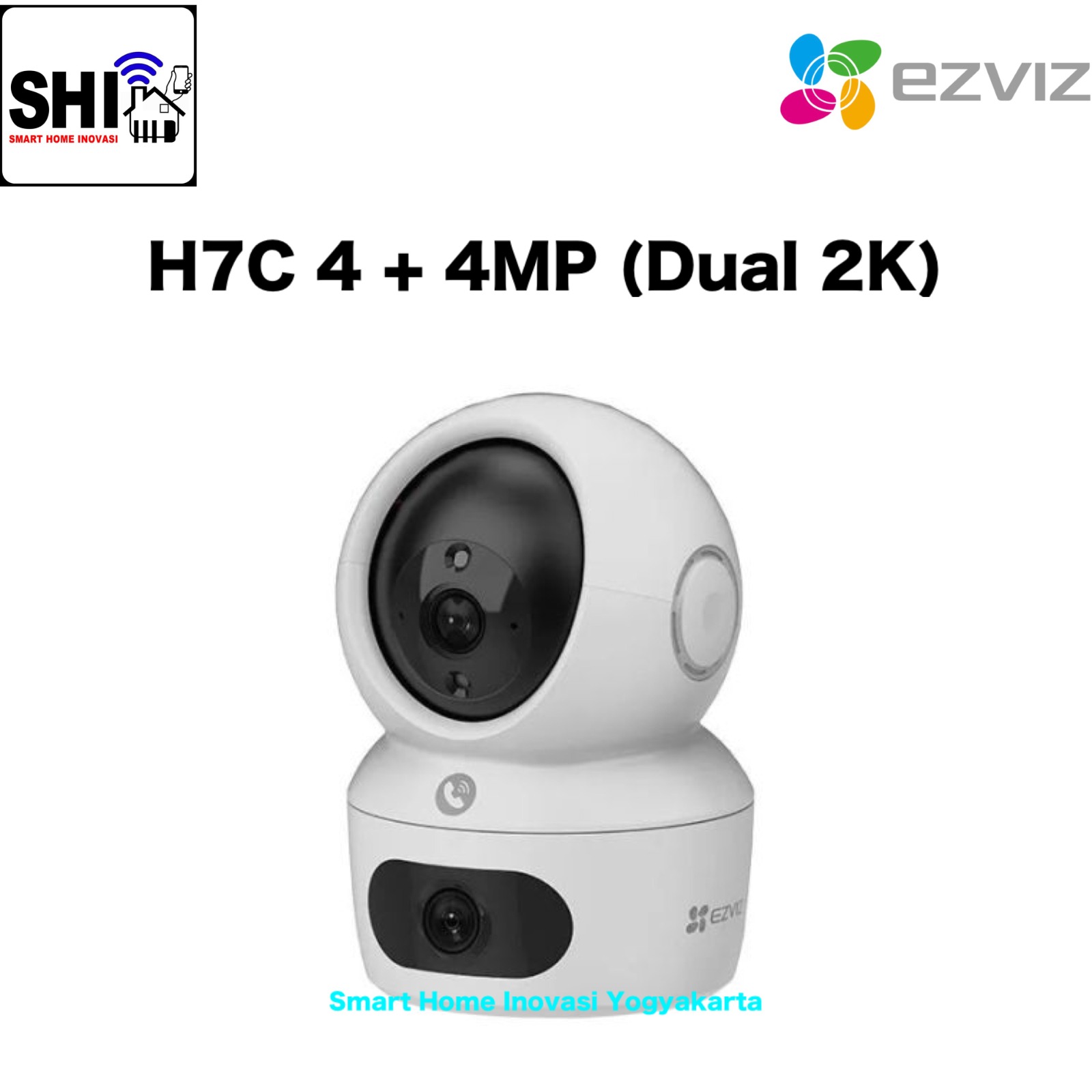

EZVIZ IP Camera PTZ Indoor H7C 4+4MP (Dual 2K)

EZVIZ IP Camera PTZ Indoor H7C 4+4MP (Dual 2K)

• Model : CS-H7c-R100-8G44WF

• Resolution : Dual 2K+ Resolution

• Image Sensor : 1/3" Progressive Scan CMOS

• Shutter Speed : Self-adaptive shutter

• Fixed Lens : 2.8mm@F1.6 ,

  View angle :

  • 108°(Diagonal), 92° (Horizontal), 50°(Vertical)

• PT Lens : 6mm@F1.6 ,

  View angle :

  • 60°(Diagonal), 51° (Horizontal), 28°(Vertical)

• Lens Mount : M12

• Day & Night : IR-cut filter with auto-switching

• DNR : 3D DNR

• WDR : Digital WDR

• Video Compression : H.264/H.265

• Video Bit Rate : Adaptive bit rate.

• Smart Alarm :

  • Motion Detection,

  • Human Shape Detection,

  • Loud Noise Detection,

  • Patrol Mode Detection

• Wi-Fi Pairing : AP pairing

• Protocol : EZVIZ cloud proprietary protocol

• Interface Protocol : EZVIZ cloud proprietary protocol

• Max. Resolution : 2560 × 1440

• Frame Rate : Max:30fps;

  • Self-Adaptive during network transmission

• Storage : Micro SD card slot (Max. 512G)

• Power : TYPE-C

• Wired Network : RJ45 X 1

  • (10M/100M self-adaptive Ethernet port)

• Standard :

  • IEEE802.11a

  • IEEE802.11b

  • 802.11g

  • 802.11n

  • 802.11ac

  • 802.11ax

• Frequency Range :

  • 2.4GHz: 2.4 GHz ~ 2.4835 GHz

  • 5GHz: 5.15GHz~5.25GHz

• Channel Bandwidth :

  • 2.4GHz Supports 20MHz 5GHz Supports 80MHz

• Security : WPA-PSK, WPA2-PSK, WPA3-Personal

• Transmission Rate :

  • 2.4GHz

    • Max. Rate Support:

      • 11b_11M, 11g_54M, 11n_MCS7_20M, 11ax_MCS11_20M

  • 5.15-5.25GHz

    • Max. Rate Support:

      • 11a_54M

      • 11n_MCS7_20-40M

      • 11ac_MCS9_20-40-80M

      • 11ax_MCS11_20-40-80M

• Output Power(EIRP) : 20 dBm

• Antenna Gain : 2.56dBi@2.48GHz，3.18dBi@5.22GHz

• Operating Conditions :

  • -10°C to 45°C ( -14 °F to 113 °F )

  • Humidity 95% or less (non-condensing)

• Power Consumption : 8W max

• Power Supply : DC 5V/2A

• IR Range : MAX. 10 meters (32.81ft)

• Dimensions :

  • 88 × 88 × 131.5 mm (3.46 × 3.47 ×4.69 in)

• Package Dimensions :

  • 200 ×105 ×105 mm (7.87 × 4.13 × 4.13 in)

• Net Weight : 270 g (9.52 oz)

• Bare Weight : 499 g (17.60 oz)

In the Box :

• Camera (x1)

• Power Adapter (x1)

• Power Cable (x1)

• Drill Template (x1)

• Mounting Plate (x1)

• Screw Kit (x1)

• Regulatory Information (x1)

• Quick Start Guide (x1)

Certifications : CE / UKCA / WEEE / RoHS / REACH / UL
