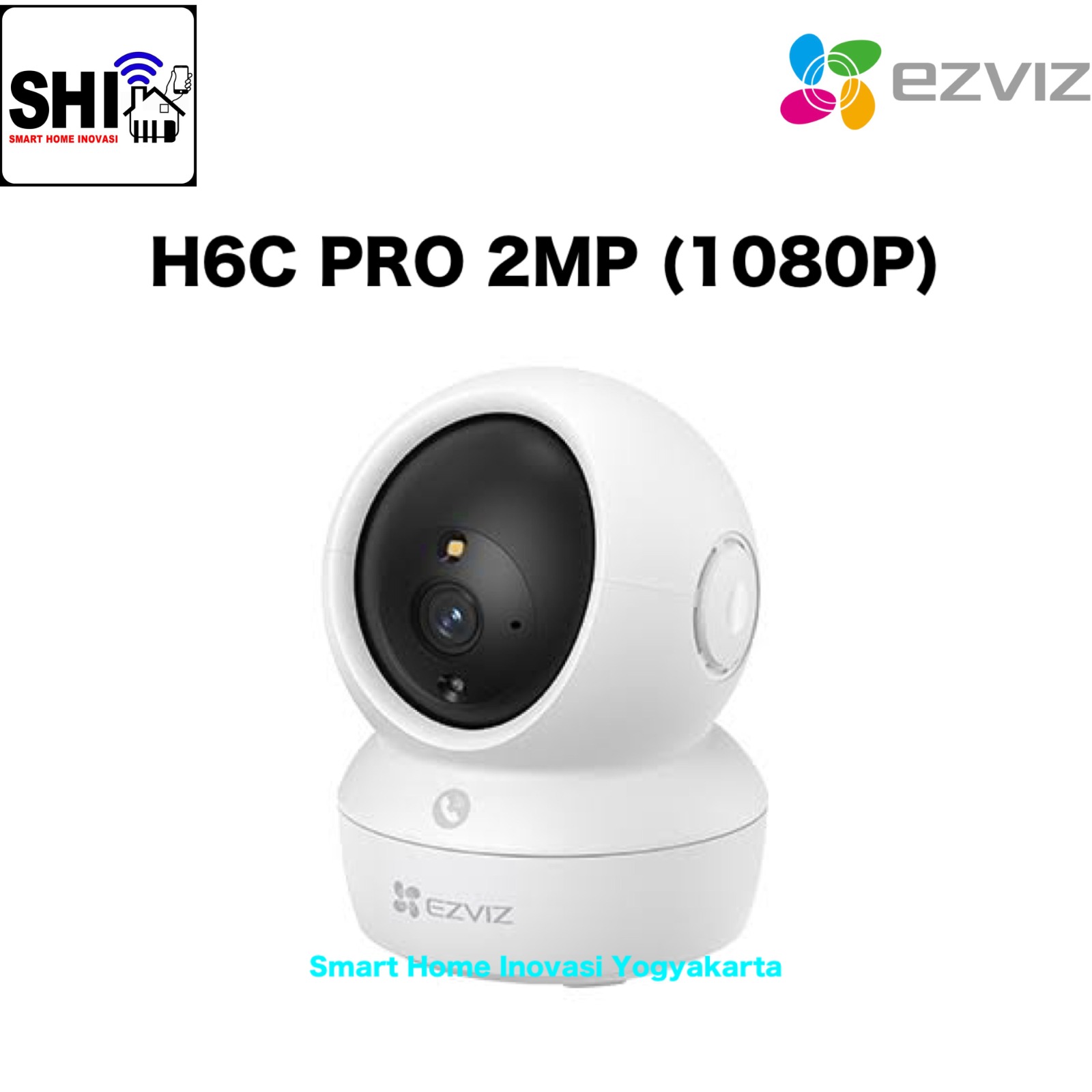

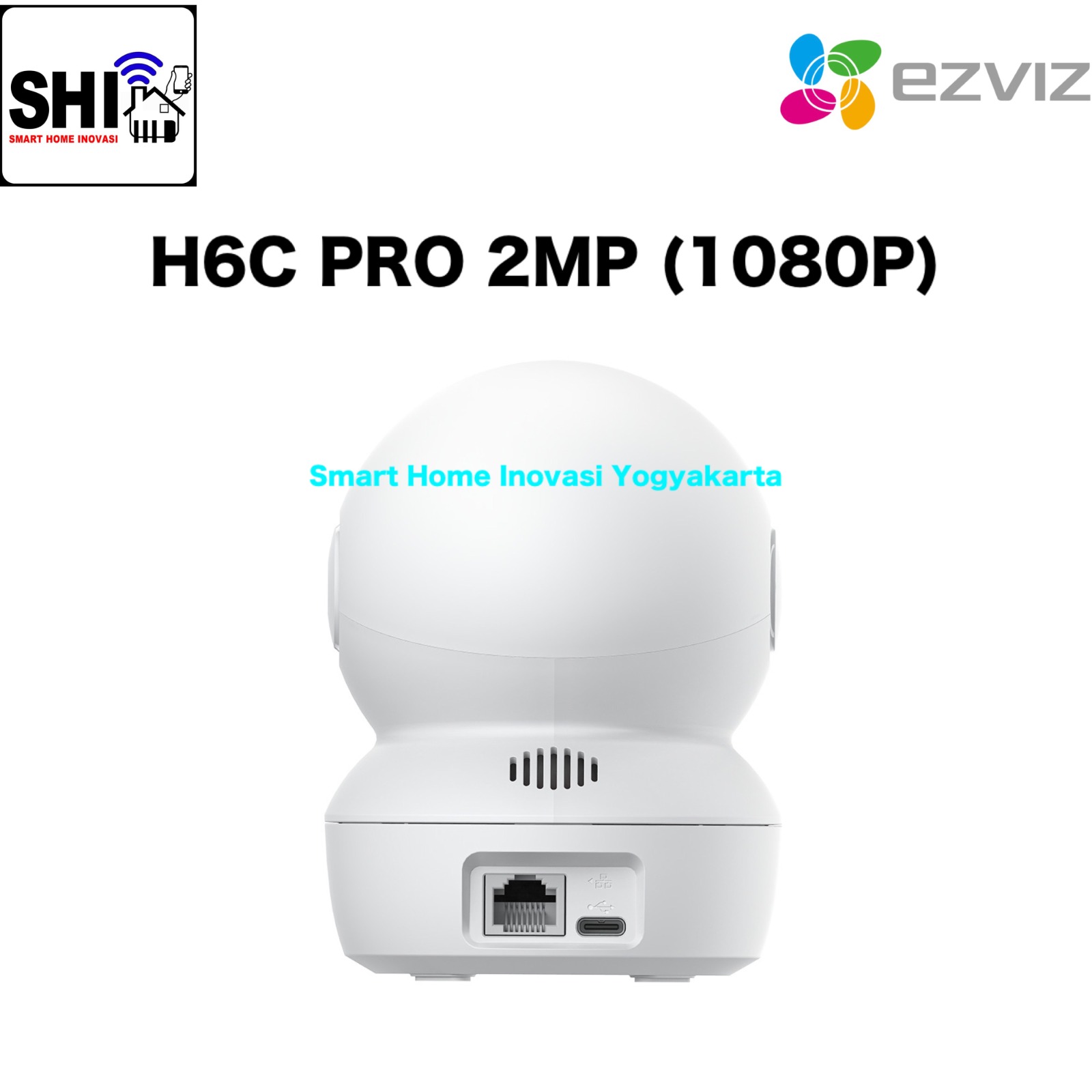

EZVIZ IP Camera PTZ Indoor H6C Pro 2MP (1080P)

EZVIZ IP Camera PTZ Indoor H6C Pro 2MP (1080P)

• Model : CS-H6c-R105-1L2WF

• Image sensor : F1.6@1/3" Progressive Scan CMOS

• Shutter Speed : Self-adaptive shutter

• Lens : 4mm, view angle: 90°(Diagonal), 80° (Horizontal), 43°(Vertical)

• Lens Mount : M12

• Day & Night IR-cut filter with auto-switching

• DNR : 3D DNR

• WDR : Digital WDR

• Video Compression : H.264/H.265

• Video Bit Rate : Adaptive bit rate.

• Max. Resolution : 1920 × 1080

• Frame Rate Max:25fps; Self-Adaptive during network transmission

• Smart Alarm :

  • Motion Detection

  • Human Detection

  • Human Tracking

  • Noise Detection

  • Auto Patrol

• Wi-Fi Pairing : AP pairing

• Protocol : EZVIZ cloud proprietary protocol

• Interface Protocol : EZVIZ cloud proprietary protocol

• Storage : Supports microSD card (Up to 512 G)

• Power : TYPE-C

• Wired Network :

  • RJ45 × 1 (10M/100M self-adaptive Ethernet port)

• Standard : IEEE802.11b, 802.11g, 802.11n

• Frequency Range : 2.4 GHz ~ 2.4835 GHz

• Channel Bandwidth : Supports 20MHz

• Security : WPA/WPA2, WPA-PSK/WPA2-PSK

• Transmission Rate : 11b: 11Mbps, 11g :54Mbps, 11n :72Mbps

• Output Power(EIRP) : 19 dBm

• Antenna Gain : 1.9 dBi

• Operating Conditions :

  • -10°C to 45°C (14°F to 113 °F ),

  • Humidity 95% or less (non-condensing)

• Power Supply : DC 5V/1A

• Power Consumption : 5W max

• IR Range : Max. 10 m (32.81 ft)

• Dimensions :

  • 88 mm x 88.2 mm x 119 mm (3.46” x 3.47” x 4.69”)

• Packaging Dimensions :

  • 103 mm x 103 mm x 168 mm (4.06” x 4.06” x 6.61”)

• Bare Weight : 218g (0.48lb)

In the Box :

• Camera

• Power Adapter

• Power Cable

• Drill Template

• Mounting Plate

• EZVIZ Screw Kit

• Regulatory Information

• Quick Start Guide

Certifications : CE / UL / WEEE / REACH / RoHS / UKCA
