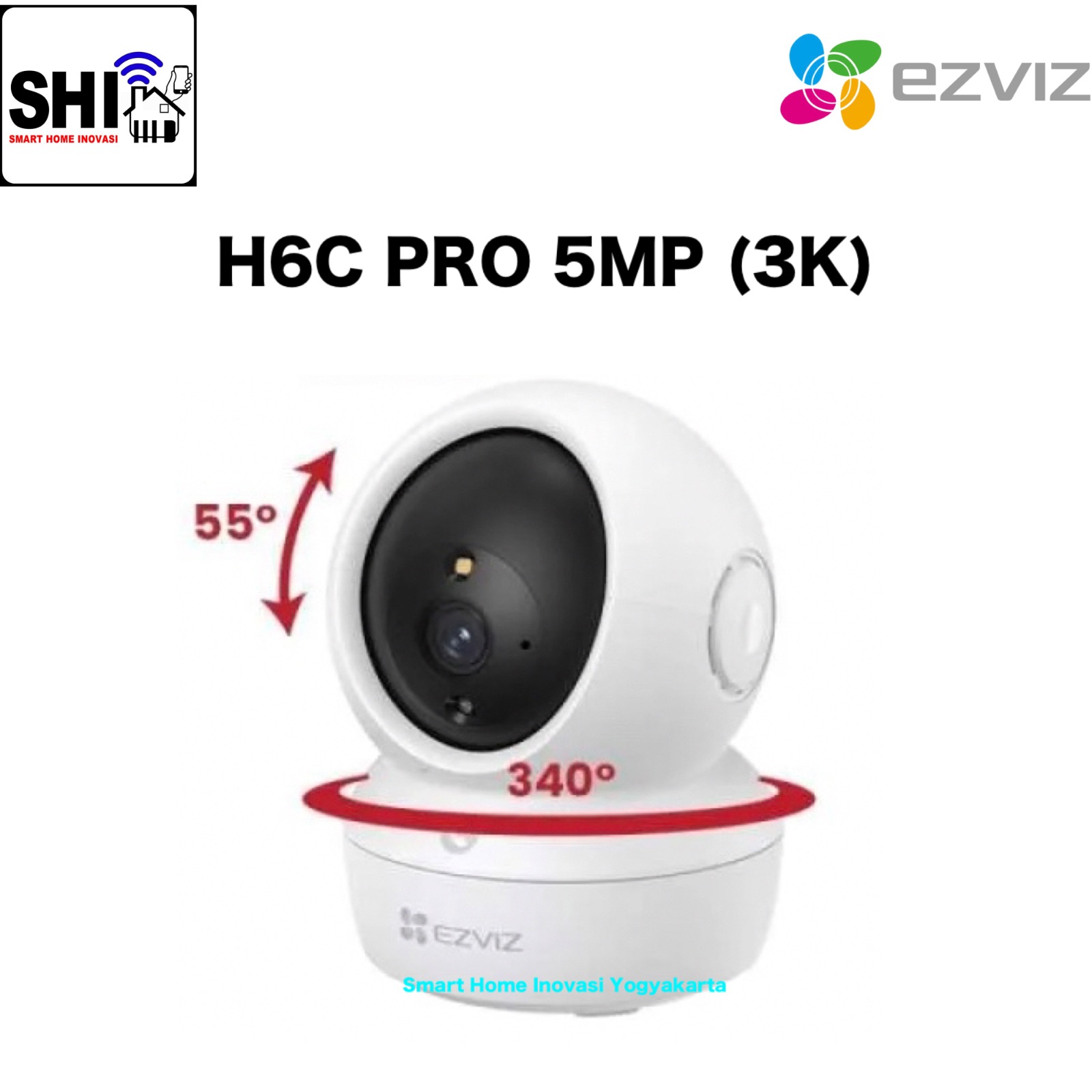

EZVIZ IP Camera PTZ Indoor H6C Pro 5MP (3K)

EZVIZ IP Camera PTZ Indoor H6C Pro 5MP (3K)

• Model : CS-H6c-R105-1J5WF

• Resolution : 3K Resolution

• Image Sensor : 1/2.7" Progressive Scan CMOS

• Shutter Speed : Self-adaptive shutter

• Lens : 4mm @ F1.6

• Viewing angle: 87° (Horizontal), 53° (Vertical), 104° (Diagonal)

• Lens Mount : M12

• Day & Night : IR-cut filter with auto-switching

• DNR : 3D DNR

• WDR : Digital WDR

• Video Compression : H.264/H.265

• Video Bit Rate : Adaptive bit rate.

• Max. Resolution : 2880 × 1620

• Frame Rate : Self-Adaptive during network transmission

• Smart Alarm :

  • Motion Detection

  • Human Shape Detection

  • Loud Noise Detection

  • Patrol Mode Detection

• Wi-Fi Pairing : AP pairing

• Protocol : EZVIZ cloud proprietary protocol

• Interface Protocol : EZVIZ cloud proprietary protocol

• Storage : Micro SD card slot (Max. 512G)

• Power : TYPE-C

• Wired Network : RJ45 X 1 (10M/100M self-adaptive Ethernet port)

• Standard : IEEE802.11a, 802.11b, 802.11g, 802.11n

• Frequency Range : 2.4G: 2400~2483.5MHz 5G: 5150MHz-5250MHz

• Channel Bandwidth : Supports 20MHz

• Security : WPA/WPA2, WPA-PSK/WPA2-PSK

• Transmission Rate :

  • 11b 11Mbps

  • 11g 54Mbps

  • 11nHT20 MCS7

  • 11a 54Mbps

  • 11nHT20 MCS7

• Output Power(EIRP) : 19 dBm

• Antenna Gain : 1.9 dBi

• Operating Conditions :

  • -10°C to 45°C (14°F to 113 °F )

  • Humidity : 95% or less (non-condensing)

• Power Supply : DC 5V/2A

• Power Consumption : 8W max

• IR Range : MAX. 10 meters(32.81ft)

• Dimensions :

  • 88mm x 88.2 mm x 119mm (3.46” x 3.47” x 4.69”)

• Packaging Dimensions :

  • 103mm x 103mm x 168mm  (4.06” x 4.06” x 6.61”)

• Bare Weight : 213 g (0.47 lb)

In the Box :

• Camera

• Power Adapter

• Power Cable

• Drill Template

• Mounting Plate

• EZVIZ Screw Kit

• Regulatory Information

• Quick Start Guide

Certifications : CE / UL / WEEE / REACH / RoHS
