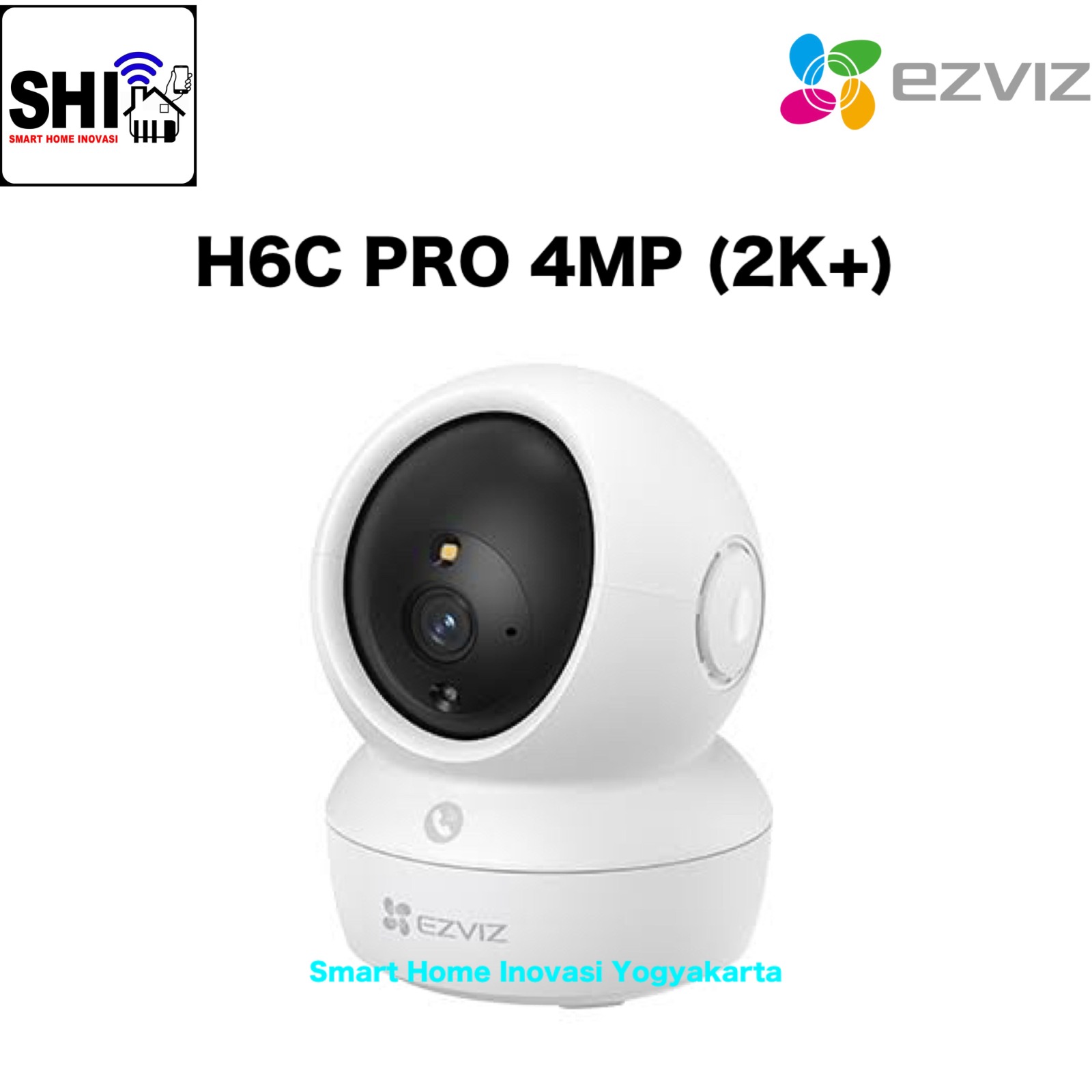

EZVIZ IP Camera PTZ Indoor H6C Pro 4MP (2K+)

EZVIZ IP Camera PTZ Indoor H6C Pro 4MP (2K+)

• Model : CS-H6c-R105-1J4WF

• Resolution : 4MP /2K+ Resolution

• Image sensor : F1.6@1/3" Progressive Scan CMOS

• Shutter Speed : Self-adaptive shutter

• Lens : 4mm,

  • View angle: 90°(Diagonal), 80° (Horizontal), 43°(Vertical)

• Lens Mount : M12

• Day & Night : IR-cut filter with auto-switching

• DNR : 3D DNR

• WDR : Digital WDR

• Video Compression : H.264/H.265

• Video Bit Rate : Adaptive bit rate

• Max. Resolution : 2560 × 1440

• Frame Rate : Max:30fps;

  • Self-Adaptive during network transmission

• Smart Alarm :

  • Motion Detection

  • Human Shape Detection

  • Loud Noise Detection

  • Patrol Mode Detection

• Wi-Fi Pairing : AP pairing

• Protocol : EZVIZ cloud proprietary protocol

• Interface Protocol : EZVIZ cloud proprietary protocol

• Storage : Micro SD card slot (Max. 512G)

• Power : TYPE-C

• Wired Network : RJ45 X 1

  • (10M/100M self-adaptive Ethernet port)

• Standard : IEEE802.11a, 802.11b, 802.11g, 802.11n,

• Frequency Range :

  • 2.4G : 2400~2483.5MHz

  • 5G : 5150MHz-5250MHz

• Channel Bandwidth : Supports 20MHz

• Security : WPA/WPA2, WPA-PSK/WPA2-PSK

• Transmission Rate :

  • 11b 11Mbps

  • 11g 54Mbps

  • 11nHT20 MCS7

  • 11a 54Mbps

  • 11nHT20 MCS7

• Output Power(EIRP) : 19 dBm

• Antenna Gain : 1.9 dBi

• Operating Conditions :

  • -10°C to 45°C (14°F to 113 °F )

  • Humidity 95% or less (non-condensing)

• Power Supply : DC 5V/2A

• Power Consumption : 8W max

• IR Range : MAX. 10 meters(32.81ft)

• Dimensions :

  • 88mm x 88.2 mm x 119mm (3.46” x 3.47” x 4.69”)

• Packaging Dimensions :

  • 103mm x 103mm x 168mm (4.06” x 4.06” x 6.61”)

• Bare Weight : 252g / 8.9oz

In the Box :

• Camera

• Power Adapter

• Power Cable

• Drill Template

• Mounting Plate

• EZVIZ Screw Kit

• Regulatory Information

• Quick Start Guide

Certifications : CE / UL / WEEE / REACH / RoHS / UKCA
