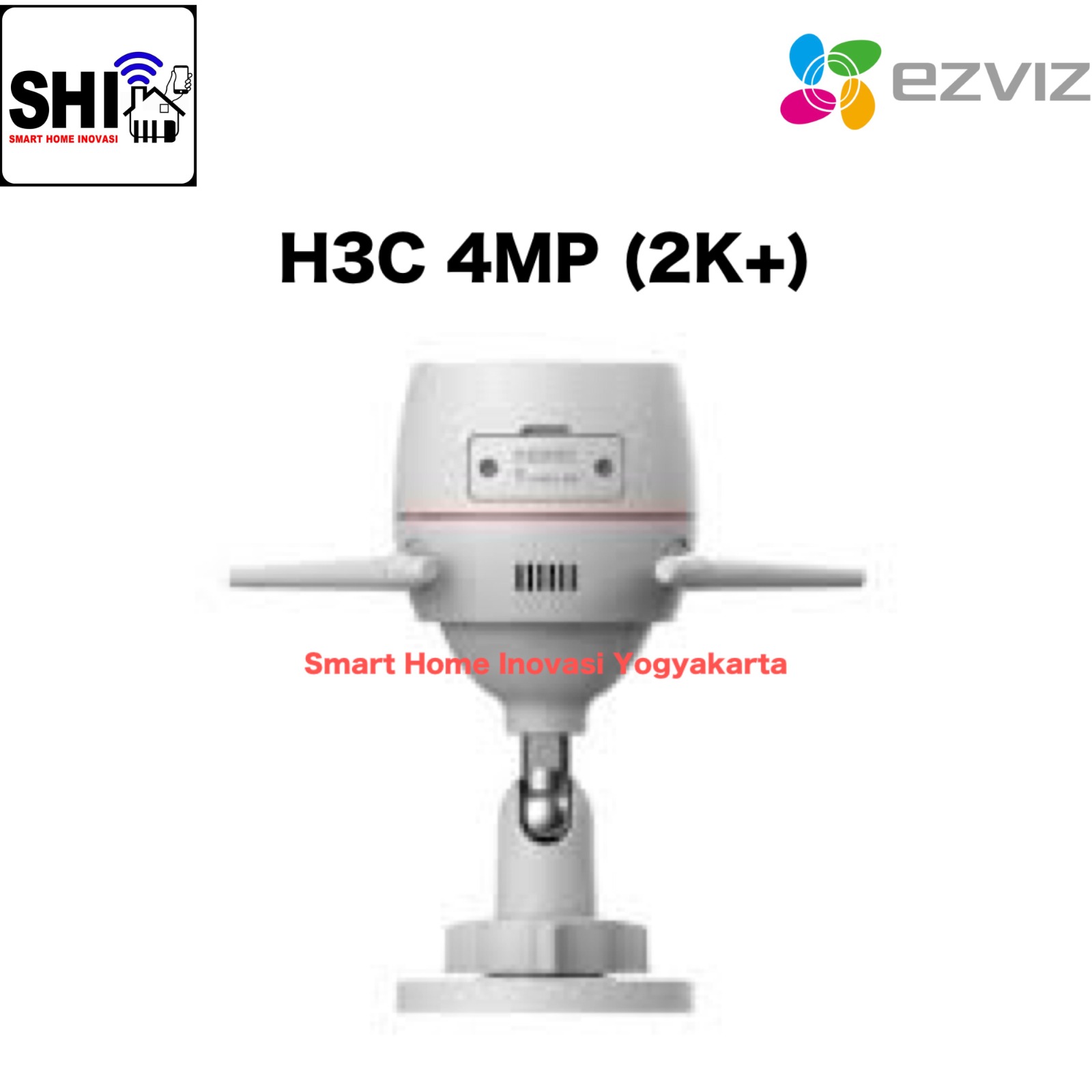

EZVIZ IP Camera Static Outdoor H3C 4MP (2K+)

EZVIZ IP Camera Static Outdoor H3C 4MP (2K+)

• Model : CS-H3c-R100-1J4WKFL

• Image Sensor : 1/2.7”Progressive Scan CMOS

• Minimum Illumination : 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR

• IR Night Vision Distance : Up to 98 ft / 30 m

• Shutter Speed : Self-adaptive shutter

• Lens : 4mm @ F2.0, view angle: 82° (Horizontal), 98° (Diagonal)

• 2.8mm@F2.0，view angle: 100° (Horizontal), 125°(Diagonal)

• Lens Mount : M12

• DNR : 3D DNR

• WDR : Digital WDR

• Day / Night Switch : IR-Cut filter with auto-switching

• Max. Resolution : 4MP, 2560 × 1440

• Frame Rate : Max: 30fps; Self-Adaptive during network transmission

• Video Compression : H.265 / H.264

• Video Bit Rate : Quad HD; Hi-Def; Full HD; Standard. Adaptive bit rate

• Audio Bit Rate : Self-Adaptive

• Max. Bitrate : 4 Mbps

• Wi-Fi Standard : IEEE802.11b, 802.11g, 802.11n

• Frequency Range : 2.4 GHz ~ 2.4835 GHz

• Channel Bandwidth : Supports 20 MHz

• Security : 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK

• Transmission Rate : 11b: 11Mbps, 11g: 54Mbps, 11n: 144Mbps

• Wi-Fi Pairing : AP Pairing

• Protocol : EZVIZ Cloud Proprietary Protocol

• Interface Protocol : EZVIZ Cloud Proprietary Protocol

• Wired Network : RJ45 × 1 (10M / 100M Adaptive Ethernet Port)

• Detection : Human Shape Detection,
                           Motion Detection Waving-Hand Detection

• Customized Alert Area : Supports

• Integration : Works with Alexa, Google Assistant, IFTTT

• General Function : Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image,
                                         Password Protection, Watermark

• Local Storage : Supports microSD card (Up to 512 GB)

• Cloud Storage : Supports EZVIZ CloudPlay storage
                                    (Subscription required)

• Operating Conditions : -30 °C to 50°C ( -22 °F to 122 °F ),
                                                 Humidity 95% or less (non-condensing)

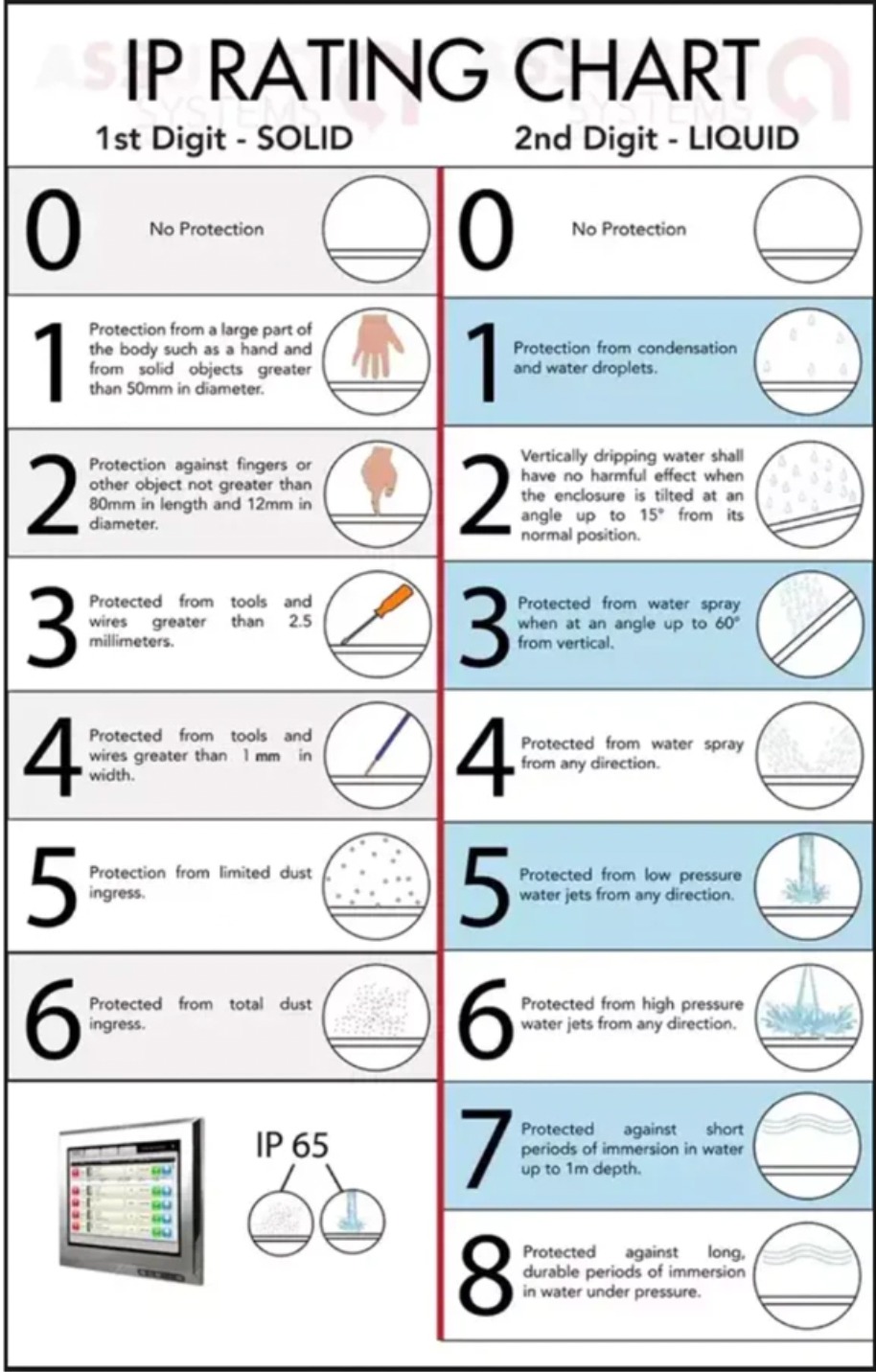

• IP Grade : IP67

• Power Supply : DC 12V / 1A

• Power Consumption : MAX. 9W

• Dimensions : 72 × 72 × 157 mm (2.83 × 2.83 × 5.98 inch)

• Packaging Dimensions : 227 × 100 × 92 mm
                                                    (8.94 × 3.94 × 3.62 inch)

• Weight(With Package) : 39 g (19.01 oz)

• Net Weight : 330 g (11.64 oz)

In the Box :

• H3c 2K+ Camera

• Drill Template

• Screw Kit

• Waterproof Kit

• Power Adapter

• Regulatory Information

• Quick Start Guide

Certifications : CE / FCC / UKCA / UL / WEEE / RoHS / REACH
