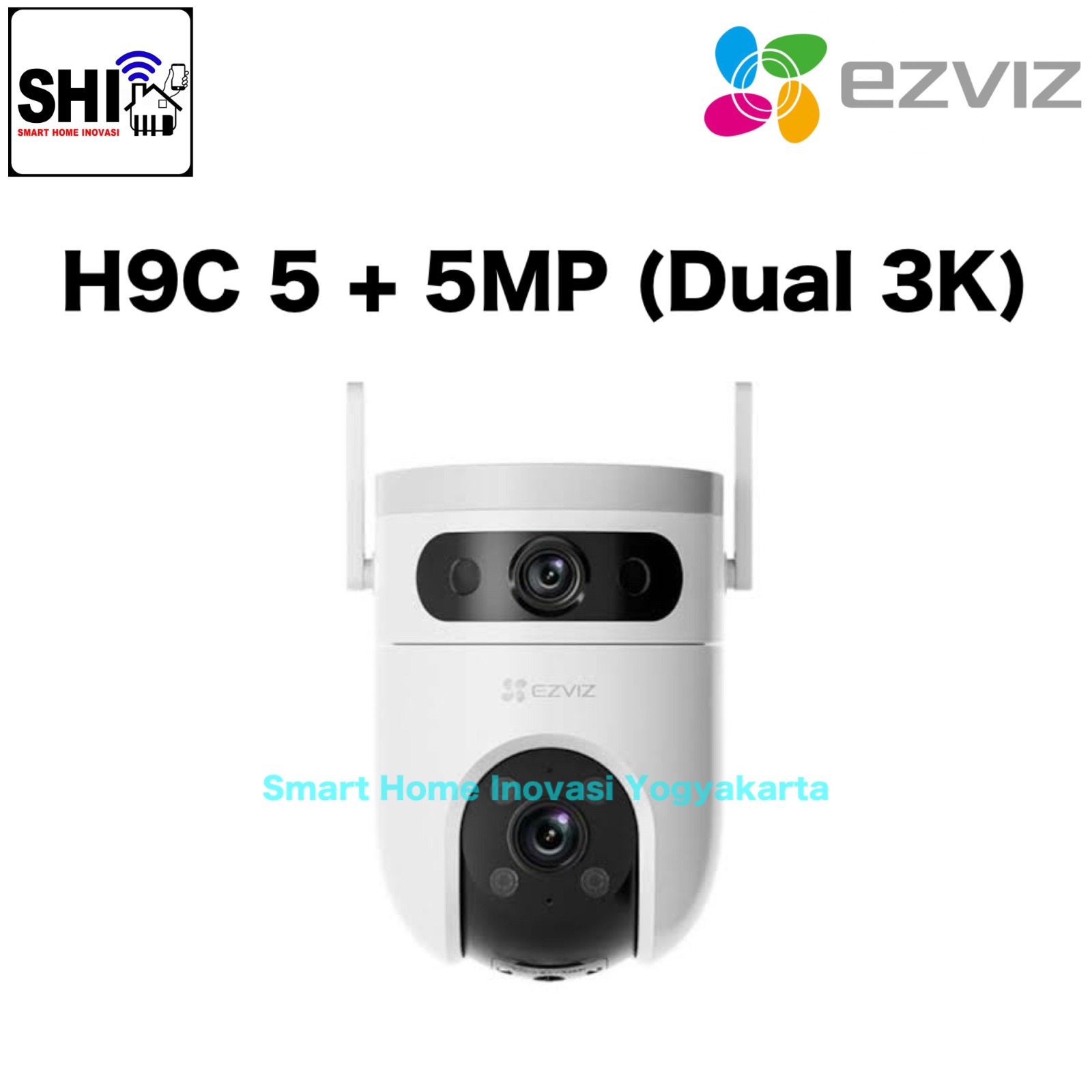

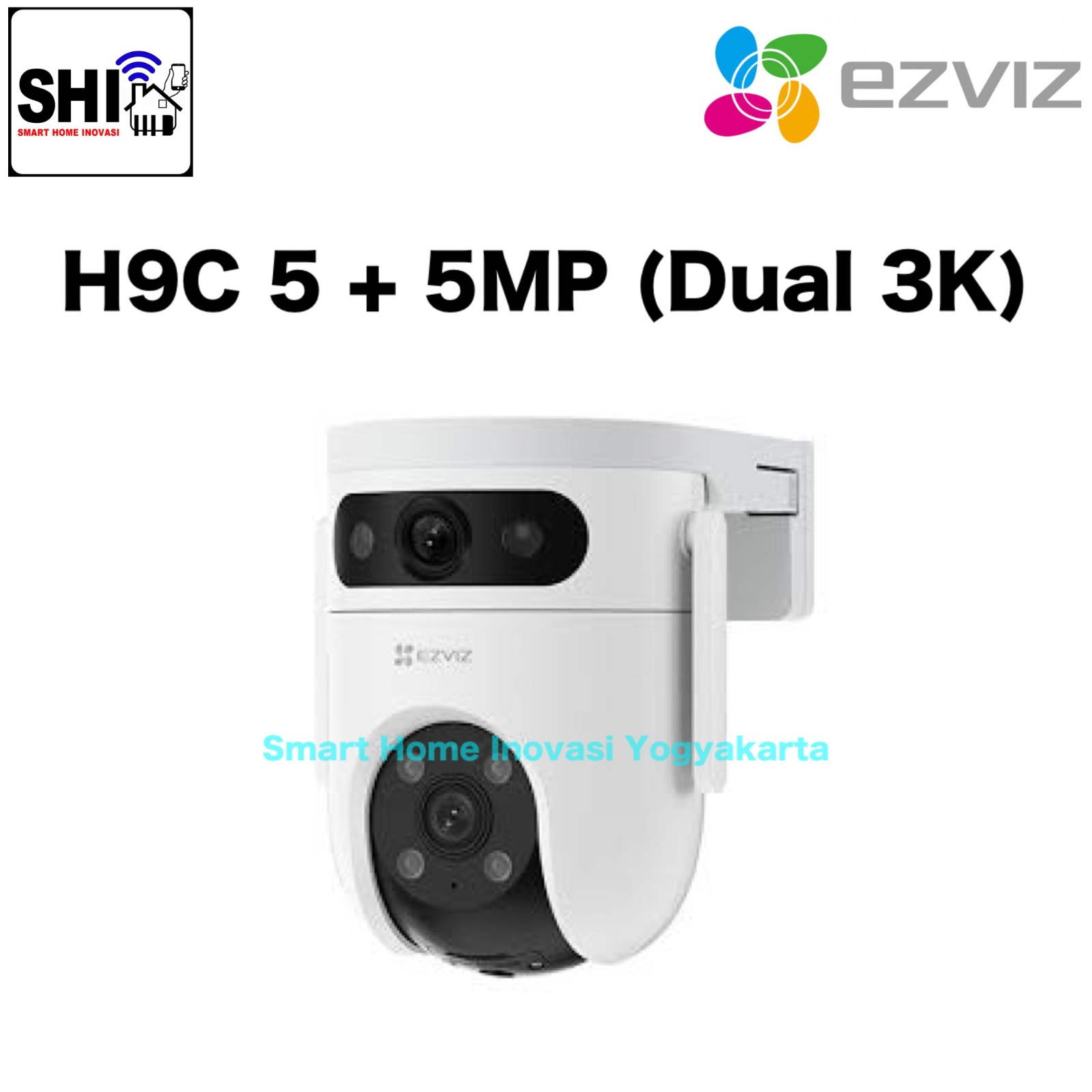

EZVIZ IP Camera PTZ Outdoor H9C 5+5MP (Dual 3K)

EZVIZ IP Camera PTZ Outdoor H9C 5+5MP (Dual 3K)

• Model : CS-H9c-R100-8G55WKFL

• Image Sensor : 1/2.7" Progressive Scan CMOS

• Shutter Speed : Self-adaptive shutter

• Fix Lens: 2.8mm@ F1.6.

  • Viewing angle: Diagonal 132°, Horizontal 110°, Vertical 58°

• Pan&Tilt Lens: 6mm@F1.6.

  • Viewing angle: Diagonal 64°, Horizontal 56°, Vertical 29°

• PT Angle : Pan: 350°, Tilt: 80°

• Minimum Illumination :

  • 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR

    • (*data is obtained from EZVIZ laboratories)

• Lens Mount : M12

• Day & Night IR-cut filter with auto-switching

• DNR : 3D DNR

• WDR : Digital WDR

• Black & White Night : 30m / 98ft

• Max Resolution : 2880 × 1620

• Frame Rate : Max:15fps;

  • Self-Adaptive during network transmission

• Video Compression : H.265 / H.264

• H.265 Type : Main Profile

• Video Bit Rate : Ultra-HD; Hi-Def; Standard. Adaptive bit rate.

• Audio Bit Rate : Self-Adaptive

• Wi-Fi Standard : IEEE802.11b, 802.11g, 802.11n

• Frequency Range : 2.4 GHz ~ 2.4835 GHz

• Channel Bandwidth : Supports 20MHz

• Transmission Rate :

  • 11b 11 Mbps, 11g 54 Mbps, 11n: 150 Mbps

• Wi-Fi Pairing : AP paring

• Protocol EZVIZ : cloud proprietary protocol

• Interface Protocol : EZVIZ cloud proprietary protocol

• Wired Network : RJ45 × 1 (10M / 100M Adaptive Ethernet Port)

• Security : WPA-PSK/WPA2-PSK

• Smart Alarm :

  • AI-Powered Human Shape Detection

  • AI-Powered Vehicle Shape Detection / Motion Detection

• Auto Tracking : Supports

• Customized Alert Area : Supports

• Two-way Talk : Supports

• Preset Locations : Supports

• General Function :

  • Anti-Flicker

  • Dual-Stream

  • Heart Beat

  • Password Protection

  • Watermark

• Local Storage : Supports microSD Card (Up to 512 GB)

• Cloud Storage : EZVIZ CloudPlay storage

• Operating Conditions :

  • -30°C to 50°C ( -22 °F to 122 °F )

  • Humidity 95% or less (non-condensing)

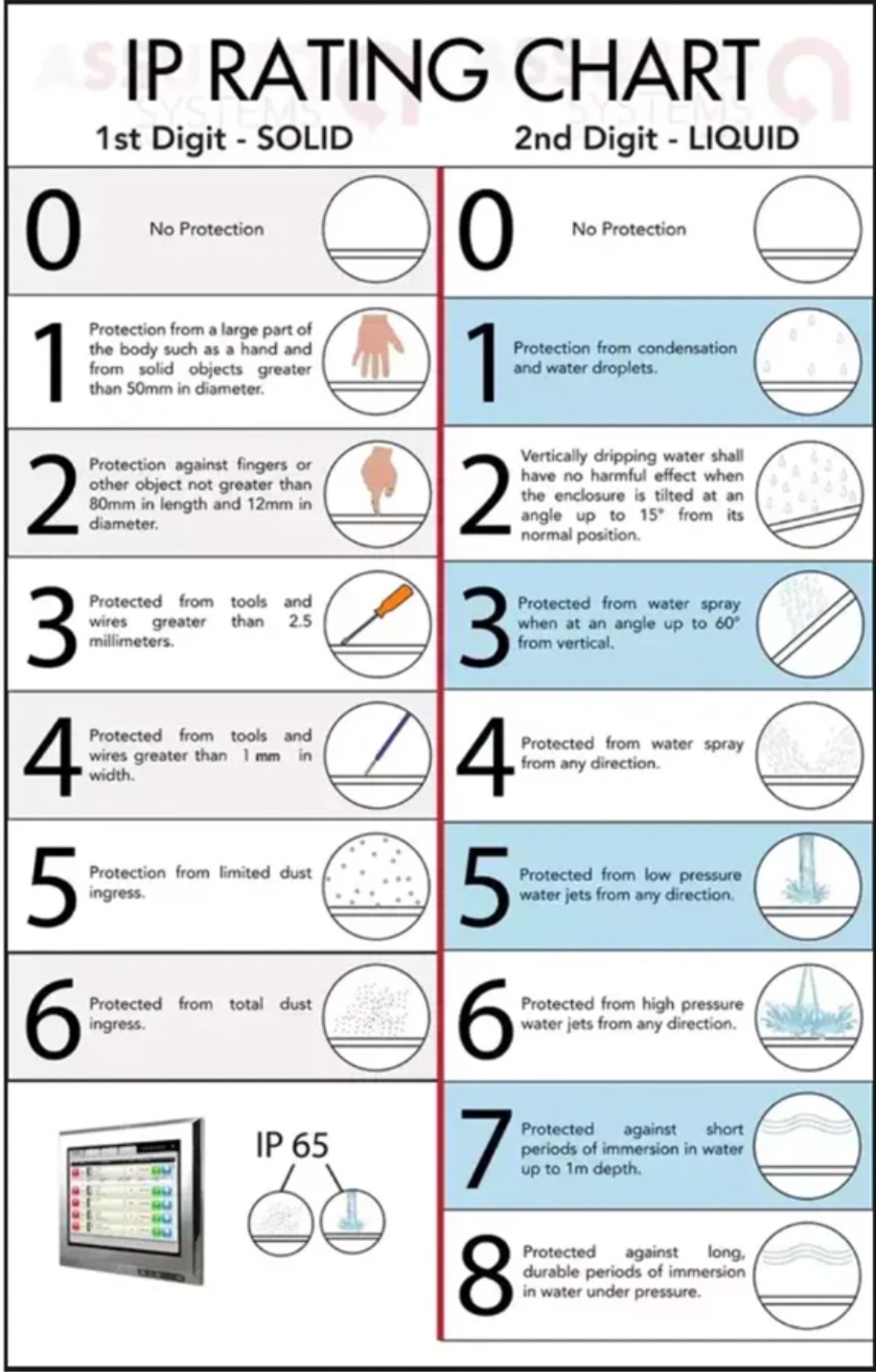

• IP Grade : Weatherproof Design

• Power Supply : DC 12V/1.5A

• Power Consumption : MAX. 12W

• Dimensions :

  • 145 × 116 × 142mm (5.71 × 4.57 × 5.59 inch)

• Packaging Dimensions :

  • 150 × 150 × 194mm (5.90 × 5.90 × 7.64 inch)

• Weight : Net Weight: 668 g With Package: 960 g

In the Box :

• H9c Camera (x1)

• Drill Template (x1)

• Screw Kit (x1)

• Waterproof Kit (x1)

• Power Adapter (x1)

• Regulatory Information (x2)

• Quick Start Guide (x1)

Certifications : CE / UKCA/WEEE / RoHS / REACH
