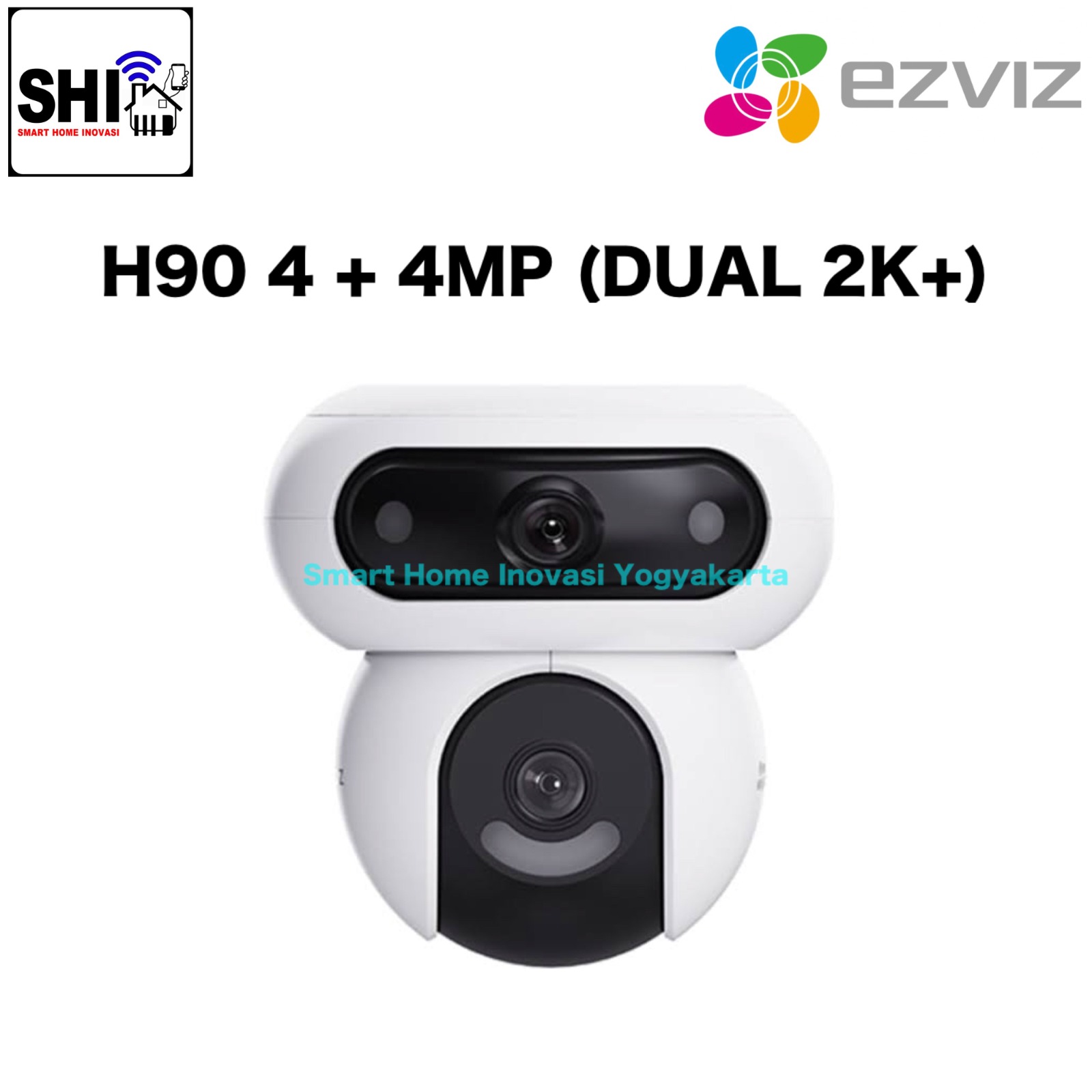

EZVIZ IP Camera PTZ Outdoor H90 4 + 4MP (Dual 2K+)

EZVIZ IP Camera PTZ Outdoor H90 4 + 4MP (Dual 2K+)

• Model : CS-H90-R100-8H44WKFL

Camera:

• Image Sensor : 1/3" Progressive Scan CMOS

• Shutter Speed : Self-adaptive shutter

• Top Lens: 2.8mm @ F1.6,
        Field of view : Diagonal 110°, Horizontal 96°, Vertical 54°

• Bottom Lens: 6mm @ F1.6
        Field of view : Diagonal 60°, Horizontal 52°, Vertical 28°

• PT Angle : Pan: 324°, Tilt: 90°

• Minimum Illumination :

  • 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR

    • (*data is obtained from EZVIZ laboratories)

• Lens Mount : M12

• Day & Night : IR-cut filter with auto switch

• DNR : 3D DNR

• WDR : Digital WDR

• Black & White Night : 30 m (98 ft)

Video & Audio :

• Max Resolution : 2K+ (2880 × 1620)

• Frame Rate : Max:15fps;

  • Self-Adaptive during network transmission

• Video Compression : H.265 / H.264

• H.265 Type : Main Profile

• Video Bit Rate : Ultra-HD; Hi-Def; Standard. Adaptive bit rate.

• Audio Bit Rate : Self-Adaptive

Network :

• Wi-Fi Standard : IEEE802.11b, 802.11g, 802.11n

• Frequency Range : 2.4 GHz ~ 2.4835 GHz

• Channel Bandwidth : Supports 20MHz

• Security : WPA-PSK/WPA2-PSK

• Transmission Rate : 11b 11 Mbps, 11g 54 Mbps, 11n: 150 Mbps

• Wi-Fi Pairing : AP paring

• Protocol EZVIZ : cloud proprietary protocol

• Interface Protocol : EZVIZ cloud proprietary protocol

• Wired Network : RJ45 × 1 (10M / 100M Adaptive Ethernet Port)

Functions :

• Smart Alarm :

  • AI-powered human shape detection

  • AI-powered vehicle shape detection

  • Motion detection

• Auto Tracking, Customized Alert Area, Two-way Talk,
       Preset Locations : Supports

• General Function :

  • Anti-Flicker

  • Dual-Stream

  • Heart Beat

  • Password Protection

  • Watermark

Storage :

• Local Storage : Supports microSD card (max. 512 GB)

• Cloud Storage : Supports EZVIZ CloudPlay storage

  • (subscription required)

General :

• Operating Conditions :

  • -30°C to 50°C ( -22 °F to 122 °F ),

  • Humidity 95% or less (non-condensing)

• IP Grade : Weatherproof Design

• Power Supply : IP65 + 2h rainstorm

• Power Consumption : MAX. 18W

• Dimensions :

  • 224 × 135 × 136 mm (8.82 × 5.31 × 5.35 inch)

• Packaging Dimensions :

  • 255 × 176 × 194 mm (10.04 × 6.93 × 7.64 inch)

• Net weight : 723 g (25.51 oz)

• With Package : 1203 g (42.43 oz)

In the Box :

• Camera H90 Dual 2K+

• Power Adapter

• Drill Template

• Waterproof Kit

• Screw Kit

• Regulatory Information × 2

• Quick Start Guide

Certifications : CE / UL / WEEE / RoHS / REACH
