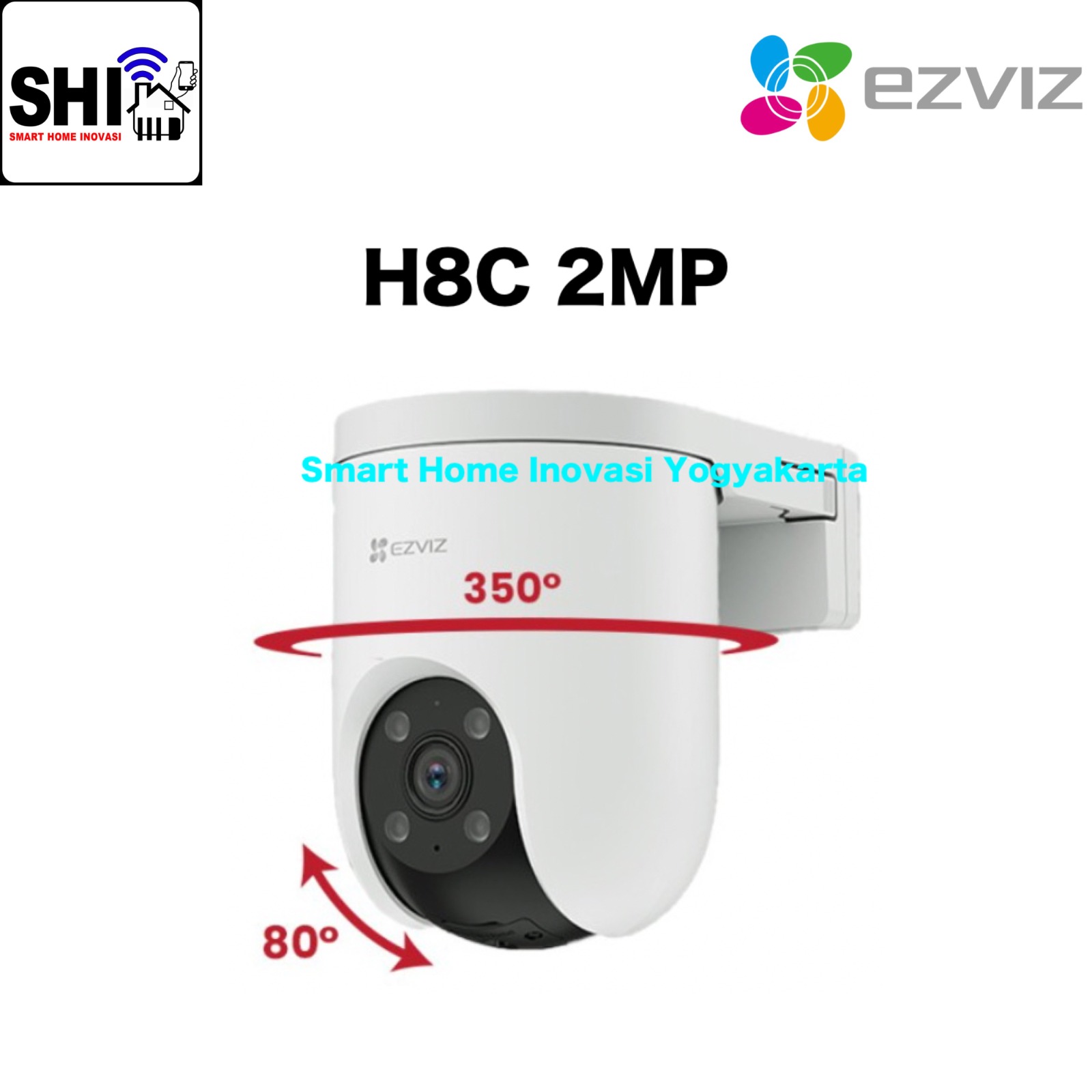

EZVIZ IP Camera PTZ Outdoor H8C 2MP (1080P)

EZVIZ IP Camera PTZ Outdoor H8C 2MP (1080P)

• Model : Model CS-H8c (1080P)

• Image Sensor : 1/2.8" Progressive Scan CMOS

• Shutter Speed : Self-adaptive shutter

• Lens :

  • 4mm @ F2.0, viewing angle :

    • 46° (Vertical), 89° (Horizontal), 104° (Diagonal)

  • 6mm @ F2.0, viewing angle :

    • 28° (Vertical), 52° (Horizontal), 60° (Diagonal)

• PT Angle : Pan: 350°, Tilt: 80°

• Minimum Illumination :

  • 0.5 Lux @ (F1.6, AGC ON), 0 Lux with IR

    • (Data is obtained from EZVIZ laboratories)

• Lens Mount : M12

• Day & Night : IR-Cut filter with auto-switching

• DNR : 3D DNR

• WDR : Digital WDR

• Night Vision Distance : 30 m / 98 ft

• Max. Resolution : 1920 × 1080

• Frame Rate : Max: 30fps;

  • Self-Adaptive during network transmission

• Video Compression : H.265 / H.264

• H.265 Type : Main Profile

• Video Bit Rate : Full HD; Hi-Def; Standard. Adaptive bit rate.

• Audio Bit Rate : Self-Adaptive

• Max. Bitrate : 2 Mbps

• Wi-Fi Standard : IEEE802.11b, 802.11g, 802.11n

• Frequency Range : 2.4 GHz ~ 2.4835 GHz

• Channel Bandwidth : Supports 20 MHz

• Transmission Rate :

  • 11b: 11 Mbps,11g: 54 Mbps,11n: 72 Mbps

• Wi-Fi Pairing : AP pairing

• Protocol : EZVIZ Cloud Proprietary Protocol

• Interface Protocol : EZVIZ Cloud Proprietary Protocol

• Wired Network :

  • RJ45 × 1 (10M / 100M Adaptive Ethernet Port)

• Local Storage : MicroSD card slot (Up to 512GB)

• Cloud Storage : EZVIZ Cloud Storage

  • (Subscription Required)

• Smart Alarm : AI-Powered Human Shape Detection

• Customized Alert Area : Supports

• Two-way Talk : Supports

• General Function :

  • Anti-Flicker

  • Dual-Stream

  • Heart Beat

  • Password Protection

  • Watermark

• Operating Conditions :

  • -30 °C to 50°C ( -22 °F to 122 °F ),

  • Humidity 95% or less (non-condensing)

• IP Grade : Weatherproof Design

• Power Supply : DC 12V / 1A

• Power Consumption : MAX. 12W

• Dimensions :

  • 100.05 × 129.19 × 149.75 mm (3.94 × 5.09 × 5.9 inch)

• Packaging Dimensions :

  • 140 × 140 × 192 mm (5.51 × 5.51 × 7.56 inch)

• Weight (With package) : 730 g (25.75 oz)

• Net Weight : 420 g (14.8 oz)

In the Box :

• H8c Camera

• Drill Template

• Screw Kit

• Waterproof Kit

• Power Adapter

• Regulatory Information

• Quick Start Guide

Certifications : CE / FCC / UKCA / UL / WEEE / RoHS / REACH
