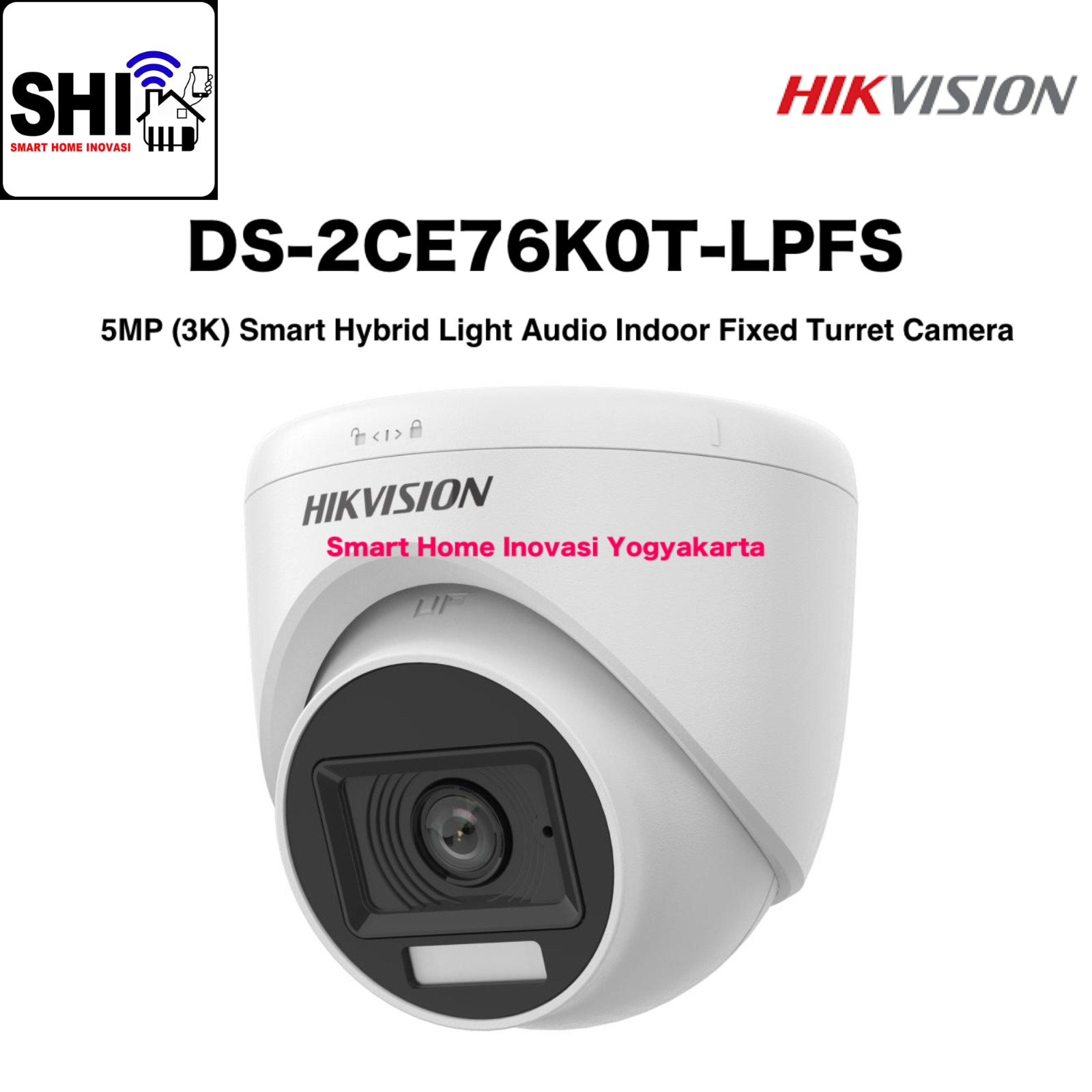

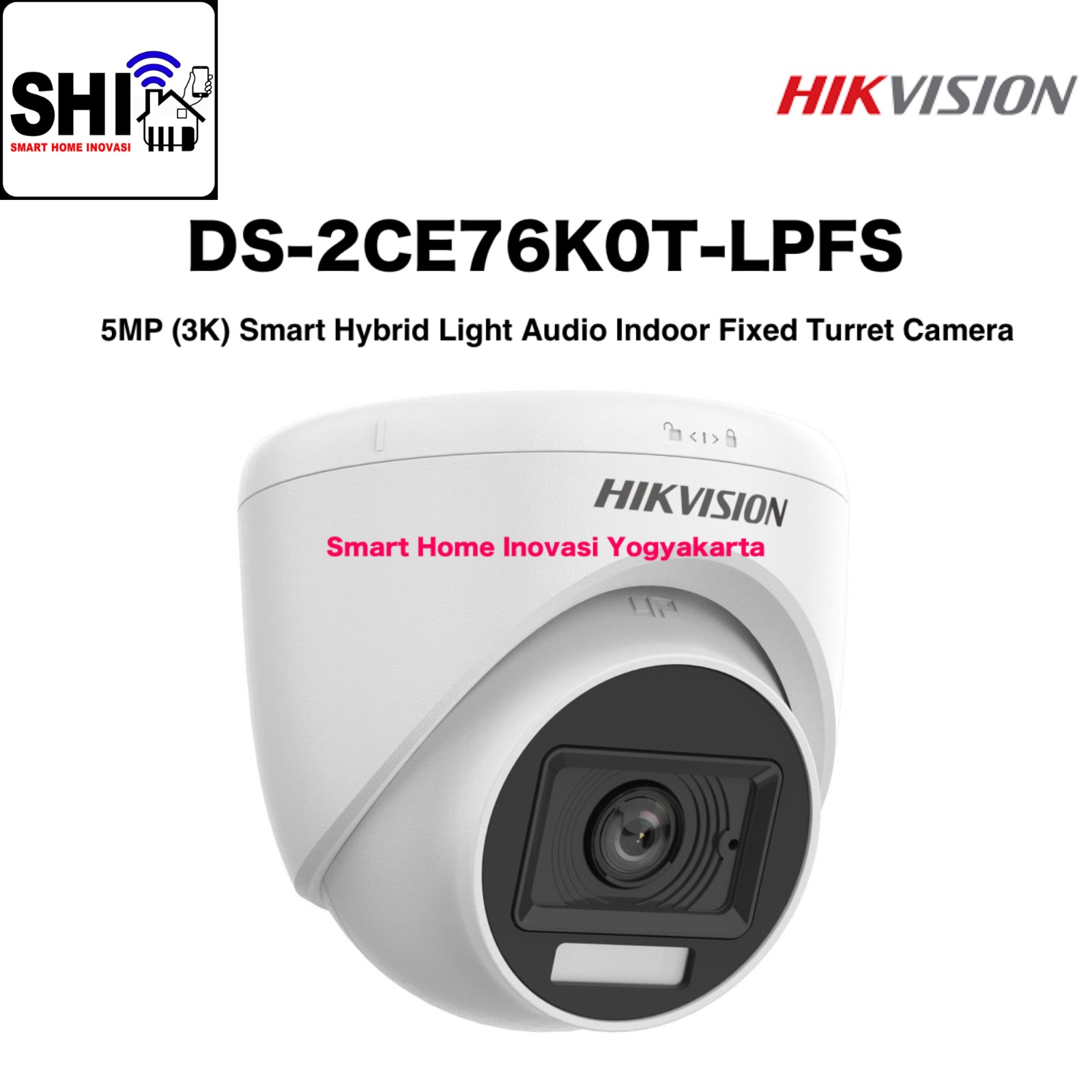

HIKVISION DS-2CE76K0T-LPFS, 5MP (3K) Smart Hybrid Light Audio Indoor Fixed Turret Camera
Rp1.00
HIKVISION DS-2CE76K0T-LPFS, 5MP (3K) Smart Hybrid Light Audio Indoor Fixed Turret Camera
Overview :
• High quality imaging with 3K, 2960 × 1665 resolution
• 2.8 mm and 3.6 mm fixed focal lens
• Up to 20 m IR distance for bright night imaging
• Up to 20 m white light distance for bright night imaging
• One port for four switchable signals (TVI/AHD/CVI/CVBS）
• High quality audio with audio over coaxial cable, built-in mic
• Smart-Hybrid light, optimize your security with flexible lighting options
Spesifikasi :
Camera :
Image Sensor : 3K CMOS
Max. Resolution : 2960 (H) × 1665 (V)
Min. Illumination :
0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time :
PAL : 1/25 s to 1/50, 000 s
NTSC : 1/30 s to 1/50, 000 s
Day & Night : ICR
Angle Adjustment :
Pan : 0 to 360°
Tilt : 0 to 75°
Rotation : 0 to 360°
Signal System : PAL/NTSC
Lens :
Lens Type : 2.8 mm and 3.6 mm fixed focal lens
Focal Length & FOV :
• 2.8 mm,
Horizontal : 105°, Vertical : 62°, Diagonal : 132°
• 3.6 mm,
Horizontal : 92°, Vertical : 48°, Diagonal : 112°
Lens Mount : M12
Microphone :
Pickup Distance : In a radius of up to 5 m
Amount : 1
Illuminator :
Supplement Light Type : Smart, IR, White Light
Supplement Light Range :
IR : Up to 20 m
White Light : Up to 20 m
Image :
Image Settings : Brightness, Sharpness, Smart IR
Frame Rate :
TVI :
3K@20 fps
4 MP@25 fps/30 fps
1080p@25 fps/30 fps
AHD : 4 MP@25 fps/30 fps
CVI : 4 MP@25 fps/30 fps
CVBS : PAL/NTSC
Day/Night Mode : Auto/Color
Wide Dynamic Range (WDR) : Digital WDR
Image Enhancement : DWDR/BLC/HLC/Global
White Balance : Auto/Manual
AGC : Yes
Interface :
Video Output : Switchable TVI/AHD/CVI/CVBS
General :
Material : Plastic
Dimension : 84.6 mm × Ø85.02 mm (3.33" × Ø3.35")
Approx. 160 g (0.35 lb.)
Operating Condition :
-40 °C to 60 °C (-40 °F to 140 °F)
Humidity : 90% or less (non-condensation)
Communication : HIKVISION-C
Language : English
Power Supply : 12 VDC ± 25%
*You are recommended to use one power adapter to
supply the power for one camera.
Power Consumption : Max. 2.9 W
