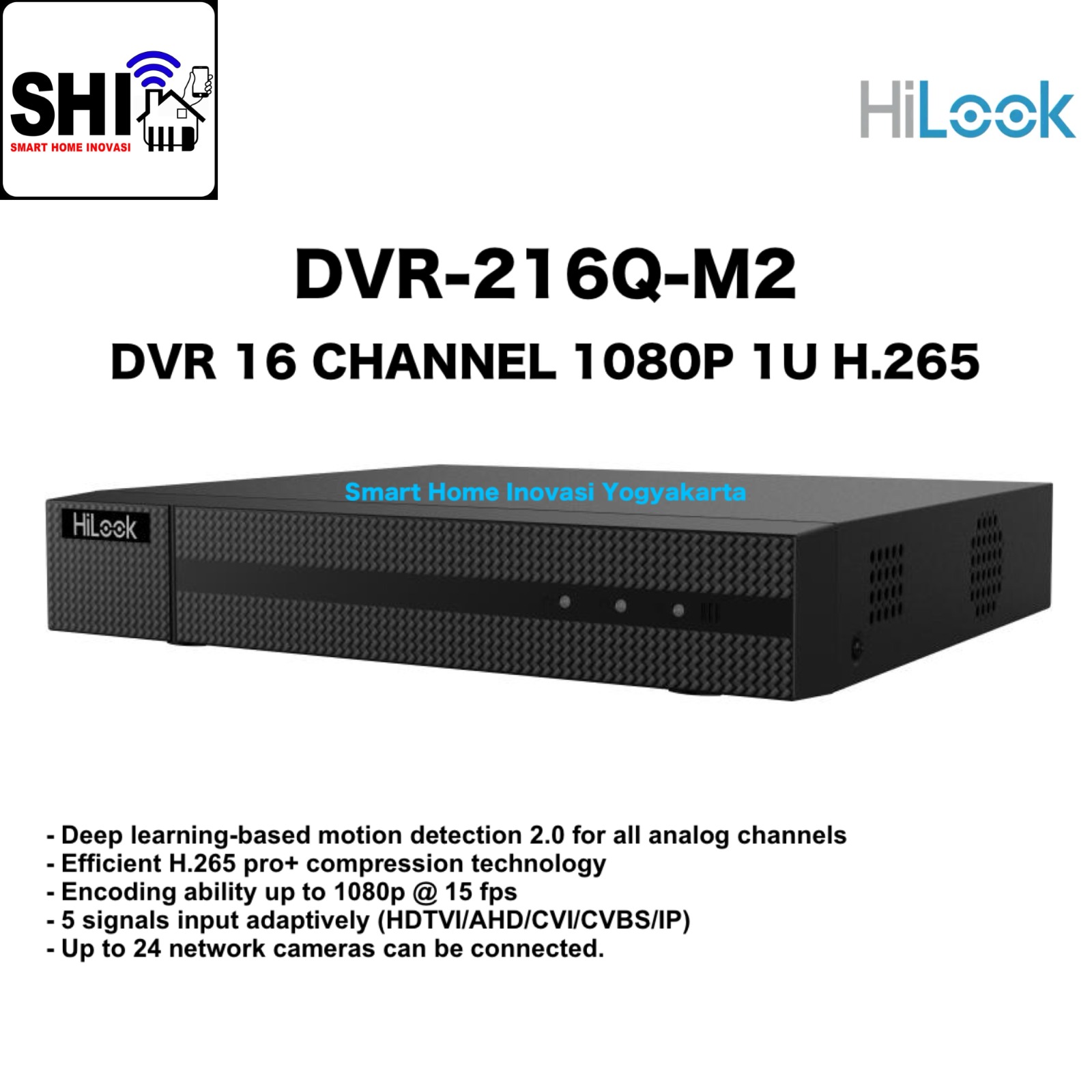

HILOOK DVR-216Q-M2, DVR 16 Channel 2MP (1080p) 1U H.265
DVR 16 Channel 1080P dengan teknologi H.265
Rp1.00
HILOOK DVR-216Q-M2, DVR 16 Channel 2MP (1080p) 1U H.265
Overview :
Deep learning-based motion detection 2.0 for all analog channels
Efficient H.265 pro+ compression technology
Encoding ability up to 1080p @ 15 fps
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Up to 24 network cameras can be connected.
Spesifications :
Motion Detection 2.0
Human/Vehicle Analysis :
Deep learning-based motion detection 2.0 is enabled by
default for all analog channels, it can classify human and
vehicle, and extremely reduce false alarms caused by
objects like leaves and lights;Quick search by object or event type is supported
Video and Audio :
IP Video Input :
2-ch (up to 18-ch)
Enhanced IP mode on :
8-ch (up to 24-ch)
Each up to 4 Mbps
Up to 6 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input :
16-ch
BNC interface (1.0 Vp-p, 75 Ω)
Supporting coaxitron connection
Incoming Bandwidth : 96 Mbps
HDTVI Input :
3K(2960 x 1665)@20 fps
5 MP(2560 × 1944)@20 fps
4 MP(2560 × 1440)@30 fps
4 MP(2560 × 1440)@25 fps
1080p@30 fps
1080p@25 fps
720p@30 fps
720p@25 fps
AHD Input :
5 MP(2560 × 1944)@20 fps
4 MP(2560 × 1440)@30 fps
4 MP(2560 × 1440)@25 fps
1080p@30 fps
1080p@25 fps
720p@30 fps
720p@25 fps
HDCVI Input :
5MP(2880 × 1620)@25 fps
5 MP(2592 × 1944)@20 fps
4 MP(2560 × 1440)@30 fps
4 MP(2560 × 1440)@25 fps
1080p@30 fps
1080p@25 fps
720p@30 fps
720p@25 fps
CVBS Input : PAL/NTSC
HDMI Output : 1-ch :
4K (3840 × 2160)/30Hz
2K (2560 × 1440)/60Hz
1920 × 1080/60Hz
1280 × 1024/60Hz
1280 × 720/60Hz
VGA Output : 1-ch :
1920 × 1080/60Hz
1280 × 1024/60Hz
1280 × 720/60Hz
Audio Input :
1-ch, RCA (2.0 Vp-p, 1 KΩ)
16-ch via coaxial cable
Audio Output : 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio : 1-ch
RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous playback : 16-ch
Recording :
Video Compression :
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution :
When 1080p Lite mode is not enabled :
3K lite
5 MP lite
4 MP lite
1080p
720p
VGA
WD1
4CIF
CIF
When 1080p Lite mode is enabled :
3K lite
5 MP lite
4 MP lite
1080p lite
720p lite
VGA
WD1
4CIF
CIF
Frame Rate
Main stream :
When 1080p Lite mode not enabled :
For 3K stream access :
3K lite@12fps
4 MP lite@15fps
1080pLite@20fps
720p/WD1/4CIF/VGA/CIF@20fps
For 5 MP stream access :
5 MP lite@12fps
4 MP lite@15fps
1080pLite@20fps
720p/WD1/4CIF/VGA/CIF@20fps
For 4 MP stream access :
4 MP lite@15fps
1080pLite@25fps (P)/30fps (N)
720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 1080p stream access :
1080p/720p@15fps
VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access :
720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled :
3K lite/5 MP lite@12fps
4 MP lite@15fps
1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream :
WD1/4CIF@12fps
CIF@25fps (P)/30fps (N)
Video Bitrate : 32 Kbps to 6 Mbps
Dual-stream : Support
Stream Type : Video, Video & Audio
Audio Compression : G.711u
Audio Bitrate : 64 Kbps
Network :
Remote Connection : 128
Total Bandwidth : 128 Mbps
Network Protocol :
TCP/IP
PPPoE
DHCP
Hik-Connect
DNS
DDNS
NTP
SADP
NFS
iSCSI
UPnP™
HTTPS
ONVIF
Network Interface :
1, RJ45 10M/100M/1000M
Self-adaptive Ethernet interface
Auxiliary Interface :
SATA : 2 SATA interfaces
Capacity : Up to 10 TB capacity for each disk
USB Interface : Real panel: 2 × USB 2.0
Alarm In/Out : N/A
General :
Power Supply : 12 VDC, 3.3A
Consumption : ≤ 40 W
Working Temperature :
-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity : 10% to 90%
Dimension (W × D × H) :
384 × 315 × 52 mm (15.1 × 12.4 × 2.0 inch)
Weight : ≤ 2 kg (4.4 lb.)
