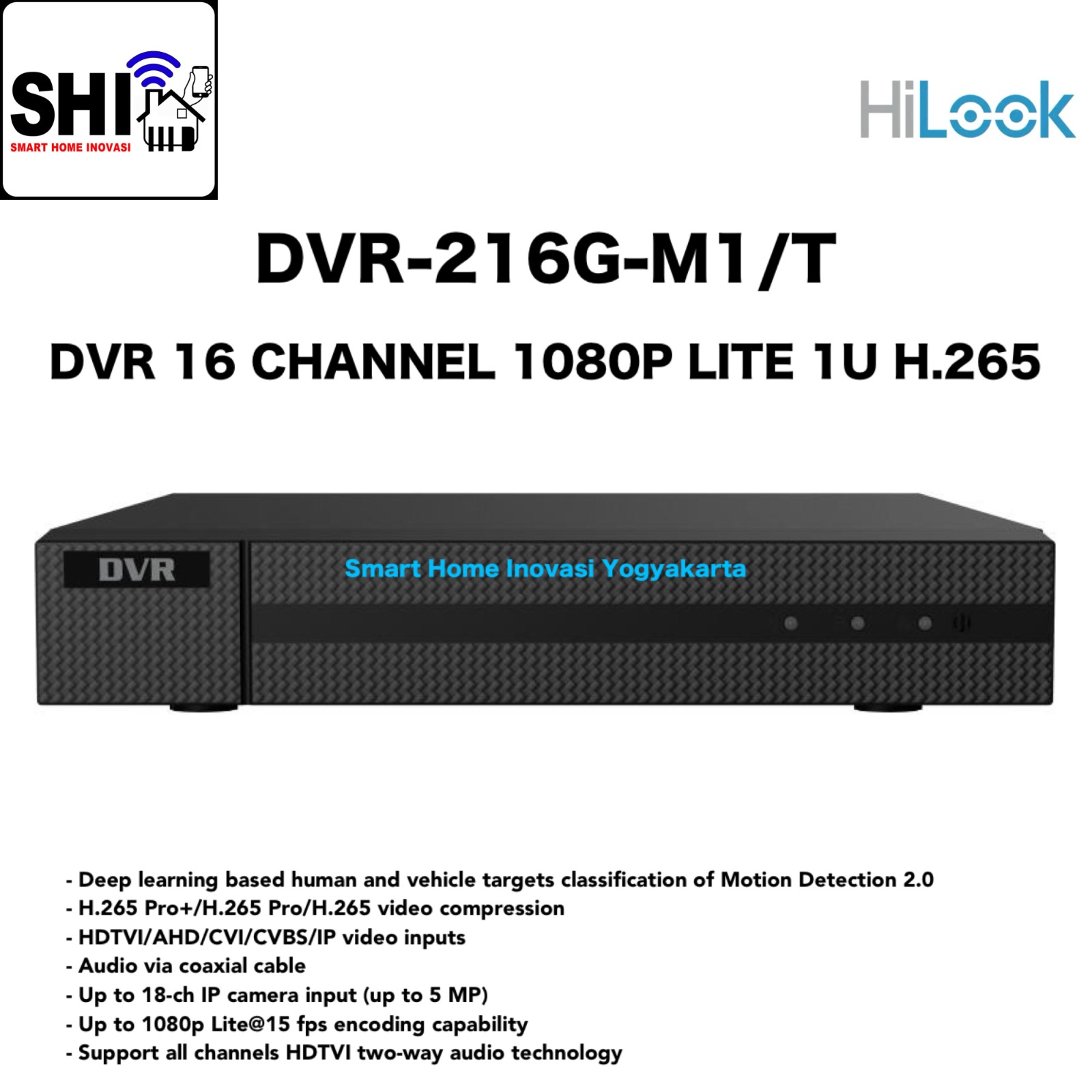

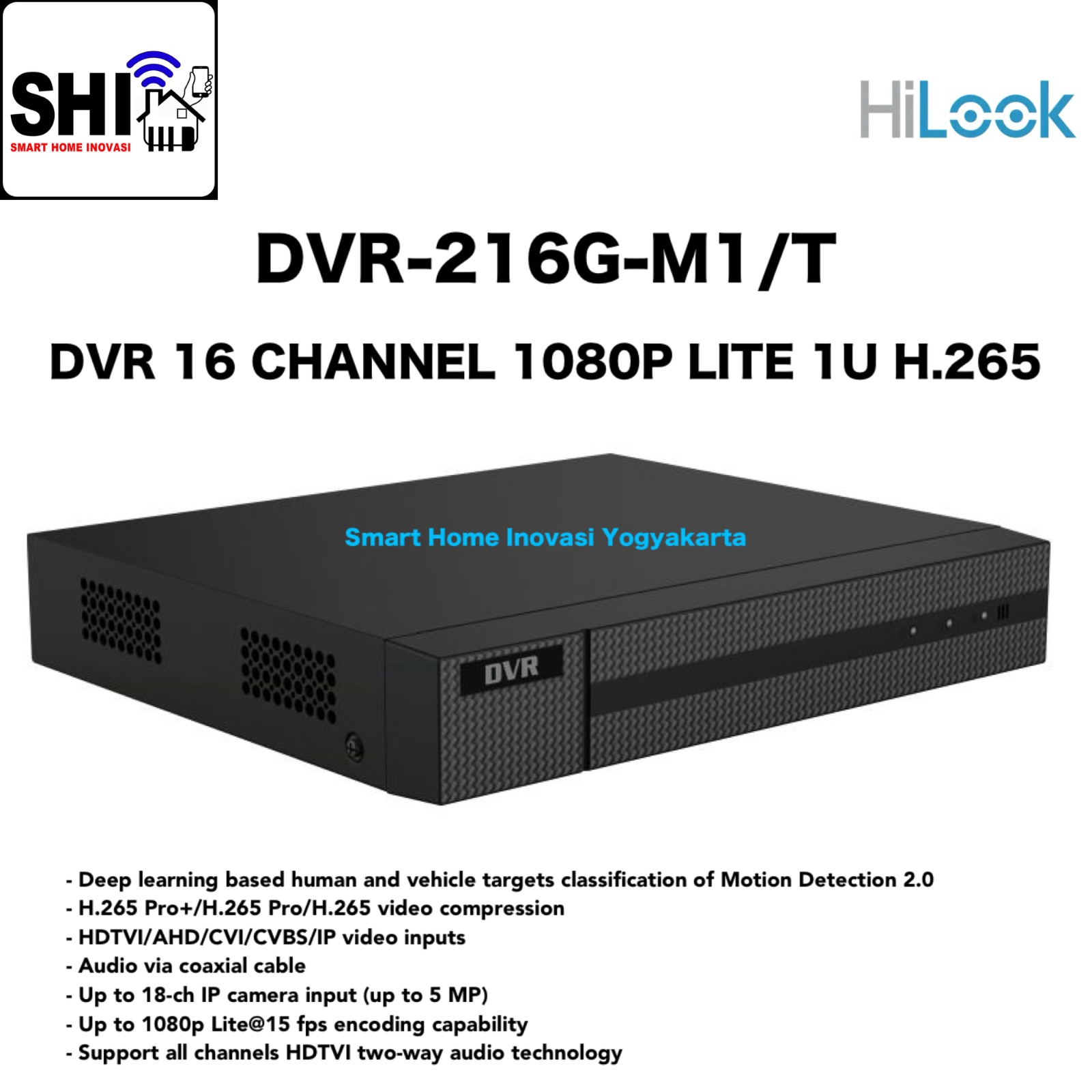

HILOOK DVR-216G-M1/T, DVR 16 Channel 2MP (1080P) Lite 1U H.265

HILOOK DVR-216G-M1/T, DVR 16 Channel 2MP (1080P) Lite 1U H.265

Overview :

• Deep learning based human and vehicle targets classification of Motion Detection 2.0

• H.265 Pro+/H.265 Pro/H.265 video compression

• HDTVI/AHD/CVI/CVBS/IP video inputs

• Audio via coaxial cable

• Up to 18-ch IP camera input (up to 5 MP)

• Up to 1080p Lite@15 fps encoding capability

• Support all channels HDTVI two-way audio technology

Specification :

Motion Detection 2.0 :

• Human/Vehicle Analysis :

  • Deep learning-based motion detection 2.0 is enabled by
          default for all analog channels, it can classify human and
          vehicle, and extremely reduce false alarms caused by
          objects like leaves and lights;

  • Quick search by object or event type is supported;

Video and Audio :

• IP Video Input :

  • 2-ch (up to 18-ch)

  • Up to 5 MP resolution

  • Support H.265+/H.265/H.264+/H.264 IP cameras

• Analog Video Input : 16-ch,

  • BNC interface (1.0 Vp-p, 75 Ω),

  • Supporting coaxitron connection

• HDTVI Input : 1080p25, 1080p30, 720p25, 720p30

• AHD Input : 1080p25, 1080p30, 720p25, 720p30

• HDCVI Input : 1080p25, 1080p30, 720p25, 720p30

• CVBS Input : PAL/NTSC

• HDMI Output : 1-ch :

  • 1920 × 1080/60Hz

  • 1280 × 1024/60Hz

  • 1280 × 720/60Hz

• VGA Output : 1-ch :

  • 1920 × 1080/60Hz

  • 1280 × 1024/60Hz

  • 1280 × 720/60Hz

• Video Output Mode : HDMI/VGA simultaneous output

• Audio Input : 1-ch

  • RCA (2.0 Vp-p, 1 KΩ), and 16-ch via coaxial cable

• Audio Output : 1-ch,

  • RCA (Linear, 1 KΩ)

• Two-Way Audio : 1-ch,

  • RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

• Synchronous Playback : 16-ch

Recording :

• Video Compression :

  • H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

• Encoding Resolution :

  • For 1080p stream access :

    • 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF

  • For 720p stream access :

    • 720p/WD1/4CIF/VGA/CIF

  • For SD stream access :

    • WD1/4CIF/VGA/CIF

•  Frame Rate

  • Main stream :

    • For 1080p stream access :

      • 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps

    •

      For 720p stream access :

      • 720p/WD1/4CIF/VGA/CIF@15 fps

    •  For SD stream access :

      • WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

  • Sub-stream :

    • For 1080p and 720p stream access CIF/QVGA@15 fps

    •  For SD stream access : CIF/QVGA@25 fps (P)/30 fps (N)

• Video Bitrate : 32 Kbps to 4 Mbps

• Dual-stream : Support

• Stream Type : Video, Video & Audio

• Audio Compression : G.711u

• Audio Bitrate : 64 Kbps

Network :

• Total Bandwidth : 96 Mbps

• Network Protocol :

  • TCP/IP

  • PPPoE

  • DHCP

  • Hik-Connect

  • DNS

  • DDNS

  • NTP

  • SADP

  • UPnP™

  • HTTPS

  • ONVIF

• Remote Connection : 128

• Network Interface : 1

  • RJ45 10/100 Mbps self-adaptive Ethernet

Interface :

• Auxiliary Interface :

  • SATA : 1, SATA interface

  • Capacity : Up to 6 TB capacity for each disk

  • USB Interface : 2 × USB 2.0

General :

• Power Supply : 12 VDC, 2 A

• Consumption : ≤ 10 W (without HDD)

• Working Temperature : -10 °C to 55 °C (14 °F to 131 °F)

• Working Humidity : 10% to 90%

• Dimension (W × D × H) :

  • 263 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)

• Weight : ≤ 1.1 kg (without HDD, 2.4 lb.)
