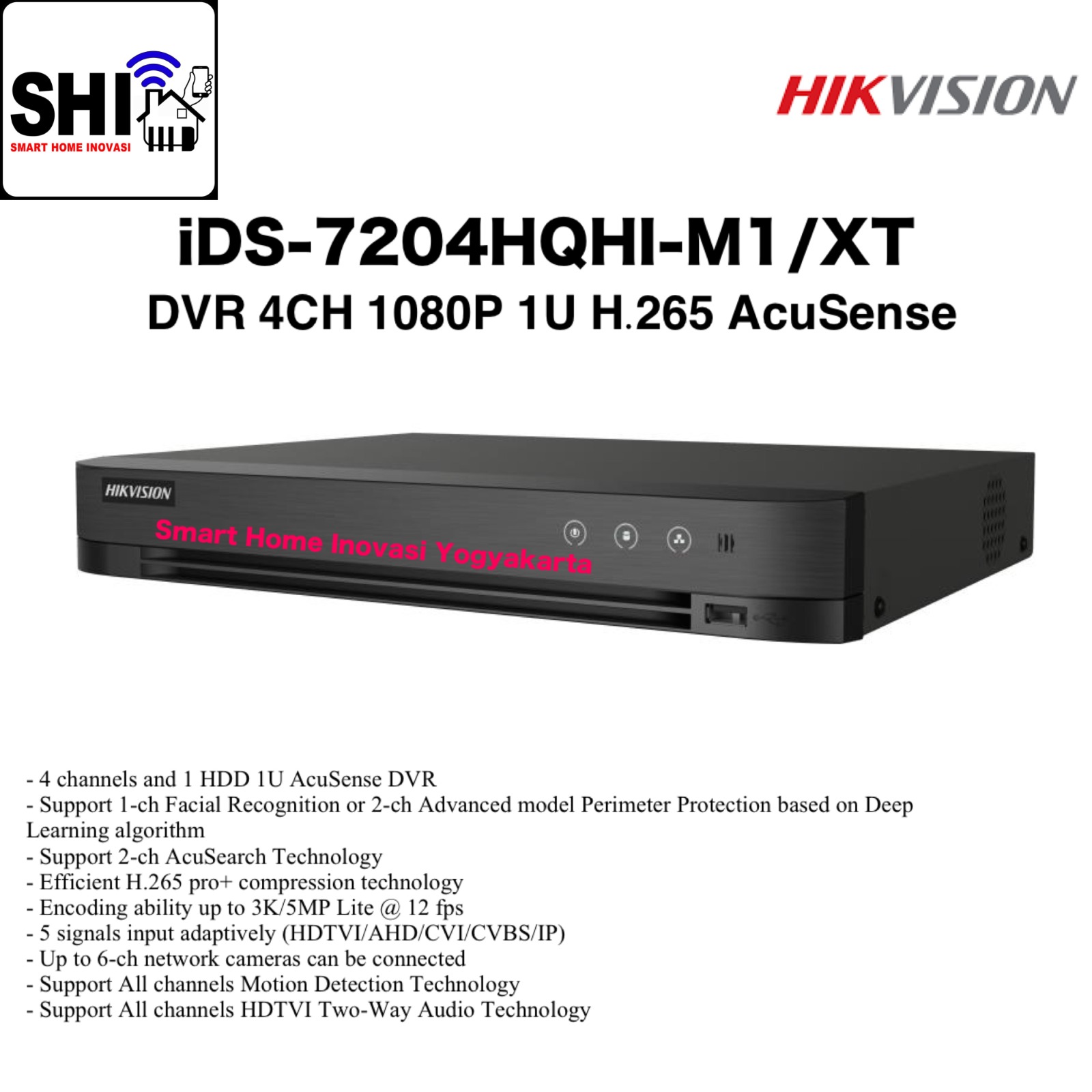

HIKVISION iDS-7204HQHI-M1/XT, DVR 4CH 1080P 1U H.265 AcuSense

HIKVISION iDS-7204HQHI-M1/XT, DVR 4CH 1080P 1U H.265 AcuSense

Spesifikasi :

Facial Recognition :

• Face Picture Comparison :

  • Face picture comparison

  • Face picture search

  • (1-ch face picture comparison alarm for HD analog camera)

• Face Picture Library : Up to 16 face picture libraries

Motion Detection 2.0

• Human/Vehicle Analysis :

  • Deep learning-based motion detection 2.0 is enabled by
          default for all analog channels, it can classify human and
          vehicle, and extremely reduce false alarms caused by
          objects like leaves and lights;

  • Quick search by object or event type is supported;

Perimeter Protection :

• Human/Vehicle Analysis : Up to 2-ch

Video and Audio :

• IP Video Input : 2-ch (up to 6-ch), Up to 6 MP resolution

• Analog Video Input : 4-ch , BNC interface (1.0 Vp-p, 75 Ω)

  • Supporting coaxitron connection

• HDTVI Input :

  • 3K(2960 x 1665)@25/20 fps

  • 3K(3328x1504)@20fps

  • 2K(2304x1296)@20fps

  • 5 MP(2560 × 1944)@20 fps

  • 4 MP(2560 × 1440)@25/30 fps

  • 1080P@25/30 fps

  • 720P@25/30fps

• AHD Input :

  • 5MP(2560 × 1944)@20 fps

  • 4 MP(2560 × 1440)@25/30 fps

  • 1080P@25/30 fps

  • 720P@25/30fps

• HDCVI Input :

  • 3K(2880×1620)@20/25 fps

  • 5MP(2592 × 1944)@20 fps

  • 4MP(2560 × 1440)@25/30 fps

  • 1080P@25/30 fps

  • 720P@25/30fps

• CVBS Input : PAL/NTSC

• CVBS Output : 1-ch,

  • BNC (1.0 Vp-p, 75 Ω), resolution :

    • PAL : 704 × 576

    • NTSC : 704 × 480

• HDMI Output : 1-ch,

  • 1920 × 1080/60Hz

  • 1280 × 1024/60Hz

  • 1280 × 720/60Hz

  • HDMI/VGA simultaneous output

• VGA Output : 1-ch,

  • 1920 × 1080/60Hz

  • 1280 × 1024/60Hz

  • 1280 × 720/60Hz

  • HDMI/VGA simultaneous output

• Audio Input :

  • 4-ch, RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable

  • 1-ch (up to 4-ch is optional), RCA (2.0 Vp-p, 1 KΩ),4-ch via coaxial cable

• Audio Output : 1-ch, RCA (Linear, 1 KΩ)

• Two-Way Audio :

  • 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

• Synchronous playback : 4-ch

Recording :

• Video Compression :

  • H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

• Encoding Resolution :

  • When 1080p Lite mode is not enabled :

    • 3K lite/5 MP lite/4MP lite

    • 1080p/720p/VGA

    • WD1/4CIF/CIF;

  • When 1080p Lite mode is enabled :

    • 3K lite/5 MP lite/4 MP lite

    • 1080p lite/720p lite/VGA

    • WD1/4CIF/CIF

• Frame Rate

  • Main stream :

    • When 1080p Lite mode not enabled :

      • For 3K stream access :

        • 3K lite@12fps

        • 4MP lite/1080p@15fps

        • 720p/WD1/4CIF/VGA/CIF@20fps

      • For 5MP stream access :

        • 5MP lite@12fps

        • 4MP lite/1080p@15fps

        • 720p/WD1/4CIF/VGA/CIF@20fps

      • For 4MP stream access :

        • 4MP lite/1080p@15fps

        • 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

      • For 1080p stream access :

        • 1080p/720p@15fps

        • VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

      • For 720p stream access :

        • 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

    • When 1080p Lite mode enabled :

      • 3K lite/5MP lite@12fps

      • 4MP lite@15fps

      • 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  • Sub-stream :

    • WD1/4CIF@12fps

    • CIF@25fps (P)/30fps (N)

• Video Bitrate : 32 Kbps to 6 Mbps

• Dual-stream : Support main stream or sub stream

• Stream Type : Video, Video & Audio

• Audio Compression : G.711u

• Audio Bitrate : 64 Kbps

Network :

• Remote Connection : 32

• Total Bandwidth : 72 Mbps

• Network Protocol :

  • TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP,

  • SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP

• Network Interface : 1,

  • RJ45 10/100 Mbps self-adaptive Ethernet interface

• Wi-Fi : Connectable to Wi-Fi network by Wi-Fi dongle through
                    USB interface

Auxiliary Interface :

• SATA : 1 SATA interface, up to 10 TB capacity for each disk

• Serial Interface : RS-485 (half-duplex)

• USB Interface :

• Front panel : 1 × USB 2.0;

• Rear panel : 1 × USB 2.0

• Alarm In/Out : N/A (optional to support); 4/1

General :

• Power Supply : 12 VDC, 1.5 A

• Consumption : ≤ 18 W

• Working Temperature :

  • -10 °C to 55 °C (14 °F to 131 °F)

• Working Humidity : 10% to 90%

• Dimension (W × D × H) :

  • 319 × 236 × 48 mm (12.6 × 9.3 × 1.9 inch)

• Weight : ≤ 1.16 kg (2.6 lb)
