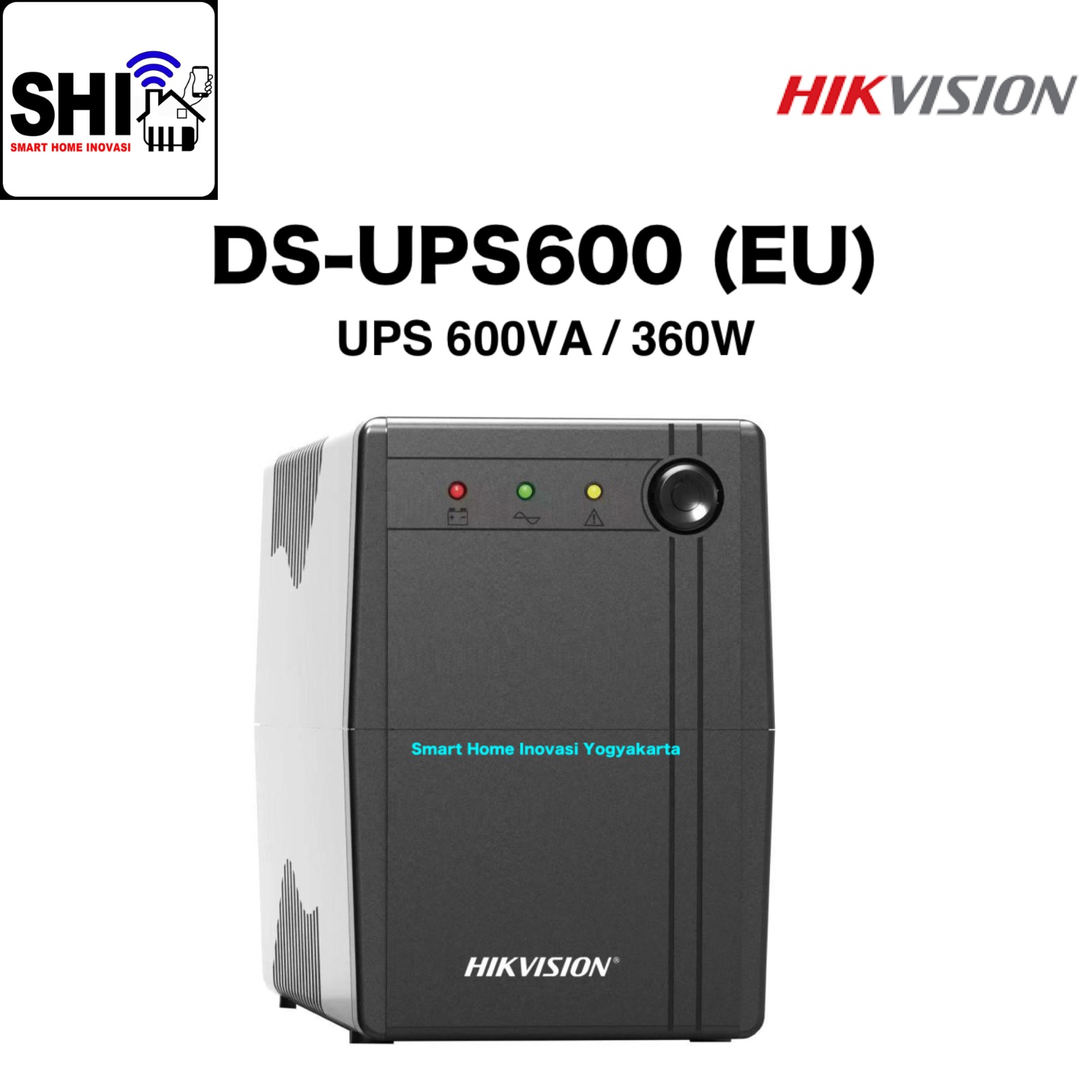

HIKVISION DS-UPS600 (EU), UPS 600VA / 360W
Rp1.00
HIKVISION DS-UPS600 (EU), UPS 600VA / 360W
Overviews :
• Built-in AVR
• Super fast charging
• Wide input voltage range
• Overload protection
• Short circuit protection
• Surge protection
SPESIFIKASI :
Power :
UPS Capacity : 600 VA / 360 W
Input :
Input Voltage Range : 140 VAC to 290 VAC; 85 VAC to 150 VAC
Input Frequency : 50/60 Hz self-adaptive
Plug Type : UK TYPE G;Type B (NEMA 5-15);Schuko
Output :
Output Voltage Range :
210 VAC to 235 VAC;110 VAC to 125 VAC
Output Frequency : 50/60 Hz ± 0.5 Hz self-adaptive
Transfer Time : ≤ 10 ms
Waveform : PWM
Outlet Type : Universal
Outlet Number : 2
Battery :
Battery Type : 12 V/7 Ah, lead-acid battery
Recharge Time : 4-6 hours recover to 90% capacity
Typical Backup Time :
Run time at 60w: 35 min
Run time at 100w: 20 min
Run time at 200w: 3 min
Interface :
Communicate Ports : No
Protection :
Full Protection :
Surge protection
Overload protection
Discharge protection
Overcharge protection
Indicator :
Display :
LED indicator
Working Mode (AC Mode) : Solid green
Charging Mode (DC Mode) : Solid red
Overloading Mode : Flashing yellow
Alarm
Charging Mode (DC mode) : Sounding every 8 seconds
Low Battery : Sounding every second
Overloading Mode : Sounding every 0.5 seconds
Fault : Continuously sounding
General :
Operating Temperature : 0 °C to 40 °C (32 °F to 104 °F）
Operating Humidity : 30% to 90% (non-condensing)
Dimension :
274 mm × 95 mm × 139 mm (10.79" × 3.74" × 5.47")
Weight : Approx. 4.2 kg (9.26 lb)
