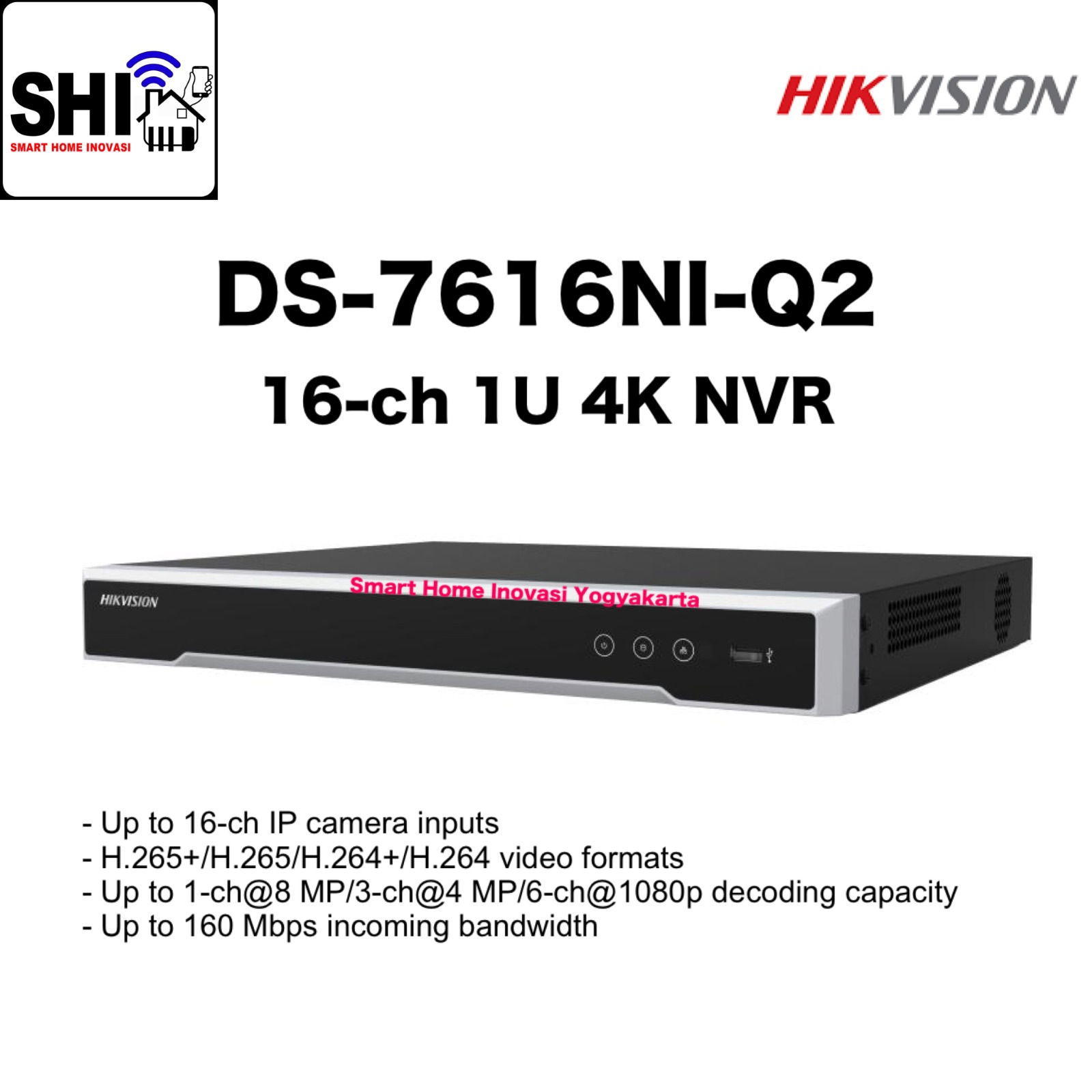

HIKVISION DS-7616NI-Q2, NVR 16 Channel 1U 4K NVR

HIKVISION DS-7616NI-Q2, NVR 16 Channel 1U 4K NVR

Overview :

• Up to 16-ch IP camera inputs

• H.265+/H.265/H.264+/H.264 video formats

• Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity

• Up to 160 Mbps incoming bandwidth

SPESIFIKASI :

Motion Detection 2.0 :

• Human/Vehicle Analysis : 4-ch

Video and Audio :

• IP Video Input : 16-ch

• Incoming Bandwidth : 160 Mbps

• Outgoing Bandwidth : 80 Mbps

• HDMI Output : 1-ch :

  • 4K (4096 x 2160)/30 Hz

  • 4K (3840 x 2160)/30 Hz

  • 2K (2560 x 1440)/60 Hz

  • 1920 x 1080/60 Hz

  • 1600 x 1200/60 Hz

  • 1280 x 1024/60 Hz

  • 1280 x 720/60 Hz

• VGA Output : 1-ch :

  • 1920 × 1080/60 Hz

  • 1280 × 1024/60 Hz

  • 1280 × 720/60 Hz

• Video Output Mode : HDMI/VGA simultaneous output

• Audio Output : 1-ch, RCA (Linear, 1 KΩ)

• Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding :

• Decoding Format : H.265+,H.265,H.264+,H.264

• Recording Resolution :

  • 8 MP/6 MP/5 MP/4 MP/3 MP

  • 1080p/UXGA /720p/VGA

  • 4CIF/DCIF/ 2CIF/CIF/QCIF

• Decoding Capability :

  • 1-ch@8 MP (30 fps)

  • 3-ch@4 MP (30 fps)

  • 6-ch@1080p (30 fps)

  • *: The length or width of camera resolution (each track) cannot
              exceed 4096 pixels.

• Synchronous playback : 16-ch

Network :

• Remote Connection : 32

• Network Protocol :

  • TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP,

  • SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

• Network Interface : 1 :

  • RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Auxiliary Interface :

• SATA : 2 SATA interfaces

• Capacity : Up to 8 TB capacity for each disk

• USB Interface : 2 × USB 2.0

General :

• Power Supply : 12 VDC, 3.33 A

• Consumption : ≤ 15 W (without HDD)

• Working Temperature : -10 °C to 55 °C (14 °F to 131 °F)

• Working Humidity : 10 to 90 %

• Chassis : 1U chassis

• Dimension (W × D × H) :

  • 385 × 315 × 52 mm (15.2"× 12.4" × 2.0")

• Weight : ≤ 1.8 kg (without HDD, 4.0 lb.)
